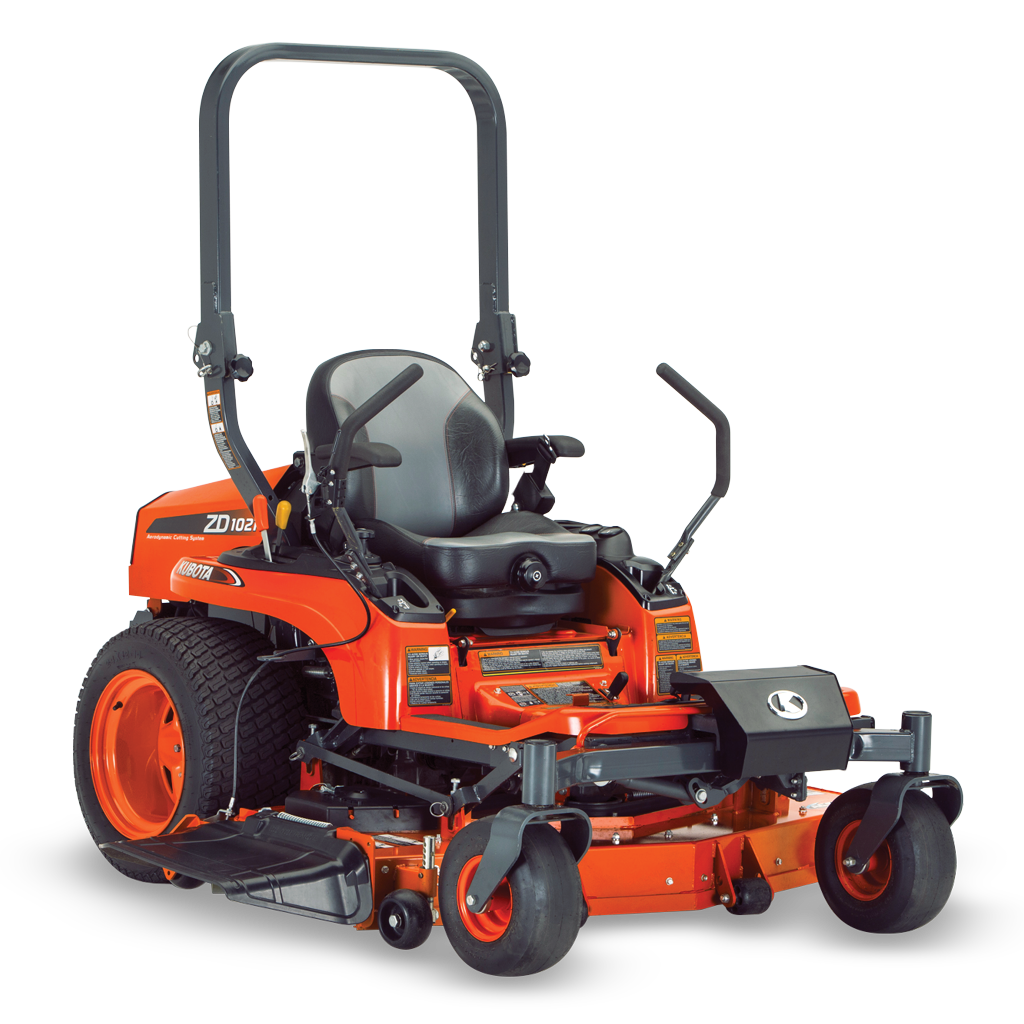

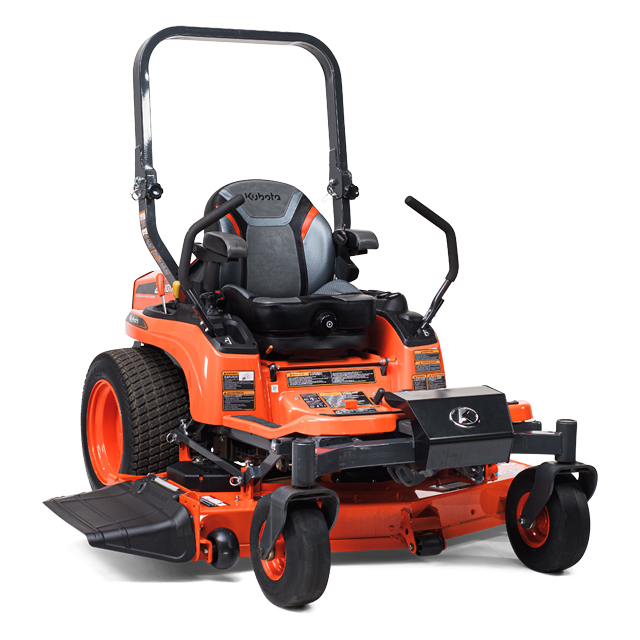

Kubota ZD1011-3 Zero-Turn Mower

Kubota ZD1011-3 Zero-Turn Mower is a diesel zero-turn mower available with 48-inch or 54-inch side-discharge decks. Both configurations use the same 19.3 HP base model, with shared specifications combined below and deck-specific differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Kubota diesel engine: The Kubota ZD series use their own proven, quality and reliable engine.
• ACS Deck (Aerodynamic Cutting System): The new ZD1000 have a ACS deck which optimizes cutting and discharge efficiency.
• Outstanding stability: When combined with the ZD Series' long wheelbase wide, large-diameter rear tires, and fuel tanks mounted above the tires and below the seat, the result is outstanding stability on a variety of terrains.
• Adjustable oscillating front axle: The ZD1000 mowers have an adjustable oscillating front axle for a smoother ride and increased operator control on rough and uneven terrain.
• New low profile tires: The new low profile rear tires improve the ZD's stability and traction and the wide tread help minimize turf damage.
• Operator comfort: The new ZD1000 series mowers have a new adjustable suspension seat, adjustable armrest, higher backrest, and lumbar support to make operation comfortable for any operator no matter how long the day may be.

Specifications

Model

• Model name: ZD1011-48 / ZD1011-54

Engine

• Model: Kubota D782-E4-ZD-3
• Type: Diesel, liquid-cooled (3cyl.)
• Displacement: 778 cc / 47.5 cu. in.
• Manufacturer: Kubota
• Safety starting system: Key switch
• Engine gross power: 14.39 kW / 19.3 HP

Power take off (PTO)

• Type: Shaft drive
• Clutch: Hydraulic independent PTO clutch with wet multi disks
• PTO brake: Wet single disk

Dimensions and weight

• Overall length: 2230 mm / 87.8 in
• Wheelbase: 1380 mm / 54.3 in
• Top of Open Station: 1890 mm / 74.4 in
• With mower: 1565 mm / 61.6 in (ZD1011-3-48); 1710 mm / 67.3 in (ZD1011-3-54)
• Without mower: 1210 mm / 47.7 in
• With mower: 588 kg / 1296 lb (ZD1011-3-48); 600 kg / 1323 lb (ZD1011-3-54)
• Top of Open Station - folded position: 1430 mm / 56.3 in

Electrical

• Battery: Maintenance free battery : 12 V, CCA : 430A , RC : 80 min
• Alternator: AC Dynamo: 14 Amps @ 14 Volts

Tread

• Front: 890 mm / 35 in
• Rear: 930 mm / 36.6 in

Drive train/transmission

• System: 2-HST w/ Gear reduction

Traveling speed

• System: 2-hand levers
• Forward: 14.5 km/h / 9 mph
• Reverse: 8 km/h / 5 mph

Mower decks

• Model: RCK48P-1000Z (ZD1011-3-48); RCK54P-1000Z (ZD1011-3-54)
• Type: Kubota ProDeck with ACS
• Lift system: Hydraulic
• Mower deck depth: 152 mm / 6 in
• Belt type: Multi-belt
• Mower deck thickness: 3.8 mm / 0.15 in (ZD1011-3-48); 4.2 mm / 0.16 in (ZD1011-3-54)
• Type anti-scalp rollers: Rigid
• Cutting width: 1219 mm / 48 in (ZD1011-3-48); 1372 mm / 54 in (ZD1011-3-54)
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Quick joint, parallel linkage
• Blade tip speed: 5212.08 m/min / 17100 fpm

Other

• Seat: Deluxe suspension seat
• Hour meter: Standard
• Fuel gauge: Standard
• Engine stop system: Key stop
• Water temperature indicator: Standard

Fluid capacities

• Fuel tank capacity: 23 l / 6 gal

Chassis, axle and brakes

• Type: Wet multi disks, foot applied, released

Tires

• Front: 13 × 5 - 6
• Rear: 24 × 9.5 - 14
• Front: Smooth pneumatic
• Rear: Low profile tire
