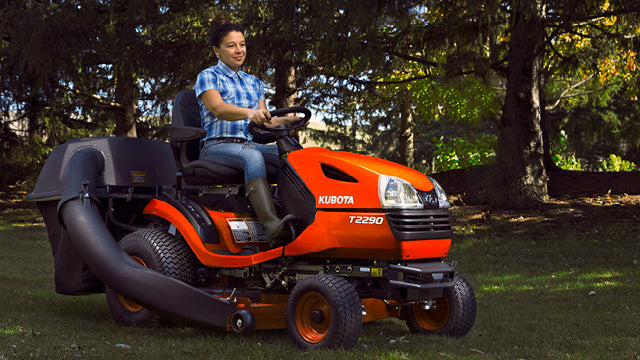

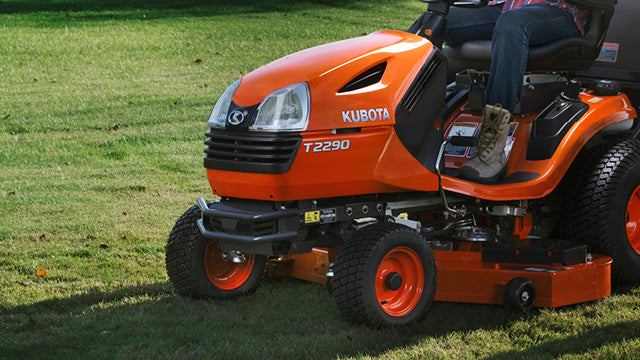

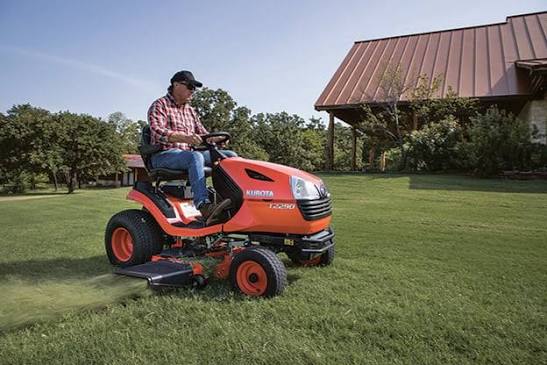

Kubota T2290 Lawn Tractor

Kubota T2290 Lawn Tractor is a lawn tractor offered with 42-inch and 48-inch mower configurations. Engine, mower deck, dimensions and operating specifications are combined below, with any differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Fabricated mower deck: The mower deck has also been upgraded to improve durability.
• Enhanced durability: A new tubular-frame structure enhances the T Series already exceptional durability, rigidity, and strength.
• New high powered gasoline engines: The T90 Series mowers have dependable gasoline engines with plenty of power for any job at hand.
• Suspension seat (T2290): The T2290 features a high-back suspension seat with parallel link suspension that provides an even greater level of comfort and support.
• Flat foot rest: The T Series features the flattest foot rest in its class, no bumps, no humps, nothing to get in the way of the operator's feet and the operator's comfort as the operator work.
• Short 14" turning radius: A 14-inch turning radius supports manoeuvring around posts, trees and landscape obstacles.
• Hydrostatic transmission: The pedal-operated hydrostatic transmission controls speed and direction while leaving both hands available for steering.
• New steering wheel: A new, thicker, easier to grip steering wheel ensures maximum control and ease of operation while reducing vibrations.

Specifications

Model

• Model name: T2290KW-42 / T2290KWT-48

Engine

• Model: GH739V-3
• Type: Air-cooled, 2-cylinder gasoline engine
• Gross horsepower: 21.5 HP
• Total displacement: 44.3 cu. in. (726 cc)
• Starting system: Key switch

Dimensions, tires and weight

• Overall length: 74.8 in (1,900 mm) (T2290KW-42); 75.2 in (1,910 mm) (T2290KWT-48)
• Overall width with mower: 54.8 in (1,392 mm) (T2290KW-42); 60.6 in (1,540 mm) (T2290KWT-48)
• Overall width without mower: 39.8 in (1,010 mm)
• Overall height: 51.6 in (1,310 mm)
• Minimum ground clearance: 140 mm (5.5 in) (T2290KW-42); 145 mm (5.7 in) (T2290KWT-48)
• Wheelbase: 51 in (1,295 mm)
• Front tread: 32.1 in (816 mm)
• Rear tread: 29.9 in (760 mm) (T2290KW-42); 29.7 in (755 mm) (T2290KWT-48)
• Front tire: 15 x 6-8 (T2290KW-42); 16 x 6-8 (T2290KWT-48)
• Rear tire: 20 x 10-10 (T2290KW-42); 22 x 10-10 (T2290KWT-48)
• Weight with mower: 622 lb (282 kg) (T2290KW-42); 661 lb (300 kg) (T2290KWT-48)
• Minimum turning radius: 14 in (356 mm)

Transmission and PTO

• Transmission: Hydro-Gear T3HD (T2290KW-42); Hydro-Gear G730 (T2290KWT-48)
• Transmission system: 1-HST with gear reduction
• Speed control: Foot pedal
• Forward speed range: 0-5.7 mph (0-9.2 km/h) (T2290KW-42); 0-6.7 mph (0-10.8 km/h) (T2290KWT-48)
• Reverse speed range: 0-3.5 mph (0-5.6 km/h) (T2290KW-42); 0-4 mph (0-6.4 km/h) (T2290KWT-48)
• Braking system: Disc brake / foot pedal
• PTO type: Belt drive
• Clutch type: Electric clutch
• PTO brake: Dry disc

Mower deck

• Model: RCK42P-90T (T2290KW-42); RCK48P-90T (T2290KWT-48)
• Mower deck type: Side discharge
• Mower lift system: Mechanical / hand lever
• Deck depth: 4.5 in (114 mm)
• Belt type: Single belt
• Deck steel thickness: 0.118 in (3 mm) (T2290KW-42); 0.134 in (3.4 mm) (T2290KWT-48)
• Anti-scalp roller: Rigid
• Cutting width: 42 in (1,067 mm) (T2290KW-42); 48 in (1,219 mm) (T2290KWT-48)
• Number of blades: 2 (T2290KW-42); 3 (T2290KWT-48)
• Cutting height: 1-4 in (25-102 mm), 1/4 in increments
• Mounting system: Parallel linkage

Operator and electrical

• Seat: Deluxe high-back seat with armrests and suspension
• Engine stop system: Key stop
• Fuel tank capacity: 3.6 U.S. gal (13.6 L)
• Battery: U1 (12 V, RC 45 min, CCA 300, CA 410)
• Generator capacity: 15 A
• Hour meter: Standard
