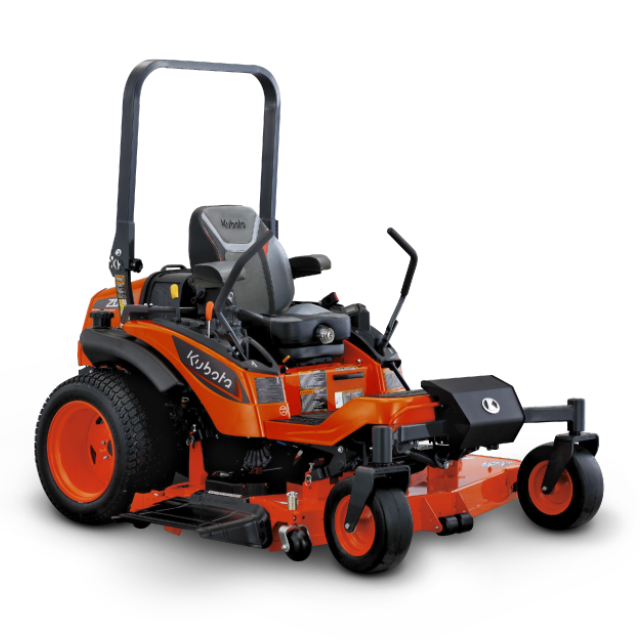

Kubota ZD1211-3 Zero-Turn Mower

Kubota ZD1211-3 Zero-Turn Mower is a commercial diesel zero-turn mower offered in 60-inch and 72-inch configurations with side- and rear-discharge model choices. Each SKU's engine, mower, dimensions, capacities and operating specifications are identified by exact model in the combined Specifications section below.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Kubota diesel engine: The Kubota ZD series use their own proven, quality and reliable engine.
• ACS Deck (Aerodynamic Cutting System): The ZD1200 series has a ACS deck which optimizes cutting and discharge efficiency.
• Outstanding stability: When combined with the ZD Series' long wheelbase wide, large-diameter rear tires, and fuel tanks mounted above the tires and below the seat, the result is outstanding stability on a variety of terrains.
• Oscillating front axle: The ZD1200 mowers have the oscillating front axle for a smoother ride and increased operator control on rough and uneven terrain.

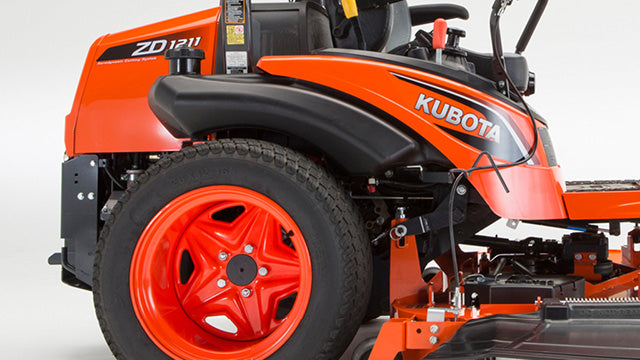

• New low profile tires: The low profile rear tires improve the ZD's stability and traction and the wide tread help minimize turf damage.

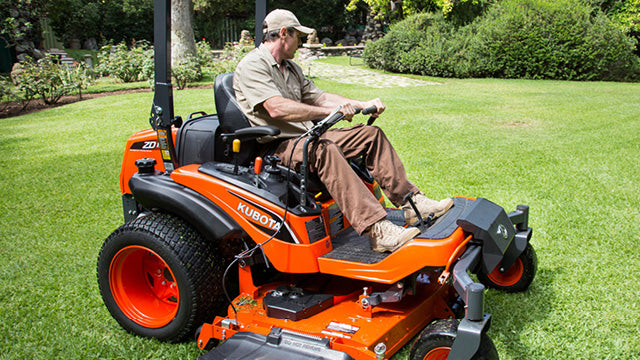

• Operator comfort: The new ZD1200 series mowers have a adjustable suspension seat, adjustable armrest, higher backrest, and lumbar support to make operation comfortable for any operator no matter how long the day may be.

Specifications

Model

• Model name: ZD1211-3-60 / ZD1211L-3-72 / ZD1211R-3-60R / ZD1211RL-3-72R

Engine

• Model: Kubota D1105-E4-ZD-2
• Type: Diesel, liquid-cooled (3cyl.)
• Displacement: 1123 cc / 68.53 cu. in.
• Manufacturer: Kubota
• Safety starting system: Key switch
• Engine gross power: 18.49 kW / 24.8 HP (ZD1211-3-60); 17.37 kW / 23.3 HP (ZD1211L-3-72, ZD1211R-3-60R, ZD1211RL-3-72R)

Power take off (PTO)

• Type: Shaft drive
• Clutch: Hydraulic independent PTO clutch with wet multi disks
• PTO brake: Wet single disk

Dimensions and weight

• Overall length: 2260 mm / 89 in (ZD1211-3-60, ZD1211R-3-60R); 2380 mm / 93.7 in (ZD1211L-3-72, ZD1211RL-3-72R)
• Wheelbase: 1440 mm / 56.7 in (ZD1211-3-60, ZD1211R-3-60R); 1560 mm / 61.4 in (ZD1211L-3-72, ZD1211RL-3-72R)
• Top of Open Station: 2000 mm / 78.7 in
• With mower: 1875 mm / 73.8 in (ZD1211-3-60); 2180 mm / 85.8 in (ZD1211L-3-72); 1600 mm / 63 in (ZD1211R-3-60R); 1910 mm / 75.2 in (ZD1211RL-3-72R)
• Without mower: 1510 mm / 59.4 in (ZD1211-3-60, ZD1211R-3-60R); 1540 mm / 60.6 in (ZD1211L-3-72, ZD1211RL-3-72R)
• With mower: 765 kg / 1687 lb (ZD1211-3-60); 800 kg / 1764 lb (ZD1211L-3-72); 780 kg / 1720 lb (ZD1211R-3-60R); 810 kg / 1786 lb (ZD1211RL-3-72R)
• Top of Open Station - folded position: 1640 mm / 64.6 in

Electrical

• Battery: Maintenance free battery : 12 V, CCA : 430A , RC : 80 min
• Alternator: AC Dynamo: 14 Amps @ 14 Volts

Tread

• Front: 1064 mm / 41.9 in (ZD1211-3-60, ZD1211R-3-60R); 1250 mm / 49.2 in (ZD1211L-3-72, ZD1211RL-3-72R)
• Rear: 1210 mm / 47.6 in

Drive train/transmission

• System: 2-HST w/ Gear reduction

Traveling speed

• System: 2-hand levers
• Forward: 17 km/h / 10.6 mph
• Reverse: 8.5 km/h / 5.3 mph

Mower decks

• Model: RCK60P-1200Z (ZD1211-3-60); RCK72P-1200Z (ZD1211L-3-72); RCK60RP-1200Z (ZD1211R-3-60R); RCK72RP-1200Z (ZD1211RL-3-72R)
• Type: Kubota ProDeck with ACS (ZD1211-3-60, ZD1211L-3-72); Kubota ProDeck (ZD1211R-3-60R, ZD1211RL-3-72R)
• Lift system: Hydraulic
• Mower deck depth: 152.4 mm / 6 in (ZD1211-3-60, ZD1211L-3-72); 140 mm / 5.5 in (ZD1211R-3-60R, ZD1211RL-3-72R)
• Belt type: Multi-belt
• Mower deck thickness: 4.2 mm / 0.16 in (ZD1211-3-60, ZD1211L-3-72, ZD1211R-3-60R); 4.5 mm / 0.18 in (ZD1211RL-3-72R)
• Type anti-scalp rollers: Swivel
• Cutting width: 1524 mm / 60 in (ZD1211-3-60, ZD1211R-3-60R); 1829 mm / 72 in (ZD1211L-3-72, ZD1211RL-3-72R)
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Quick joint, parallel linkage
• Blade tip speed: 5501.64 m/min / 18050 fpm (ZD1211-3-60, ZD1211L-3-72); 5151.12 m/min / 16900 fpm (ZD1211R-3-60R); 5486.4 m/min / 18000 fpm (ZD1211RL-3-72R)

Other

• Seat: Deluxe suspension seat with Reclining and lumbar support
• Hour meter: Standard
• Fuel gauge: Standard
• Engine stop system: Key stop
• Water temperature indicator: Standard

Fluid capacities

• Fuel tank capacity: 49 l / 13 gal

Chassis, axle and brakes

• Type: Wet multi disks, foot applied, released

Tires

• Front: 15 × 6.5 - 8
• Rear: 26 × 12 - 16
• Front: Smooth semi-pneumatic, Low profile tire
• Rear: Low profile tire
