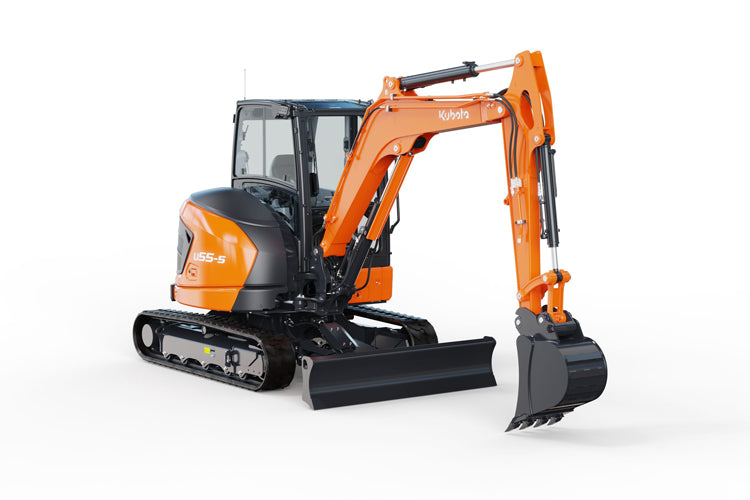

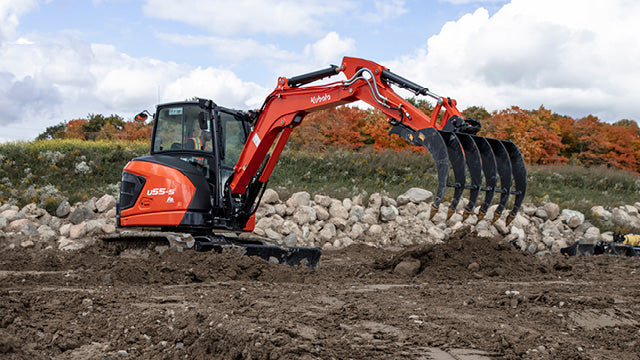

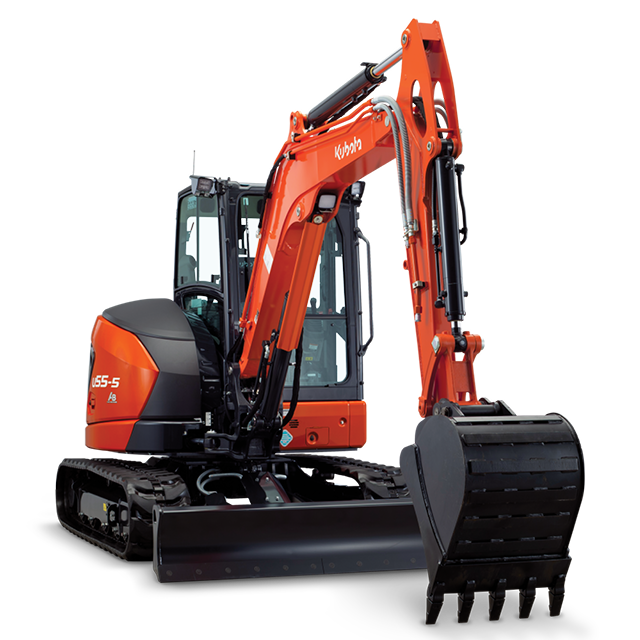

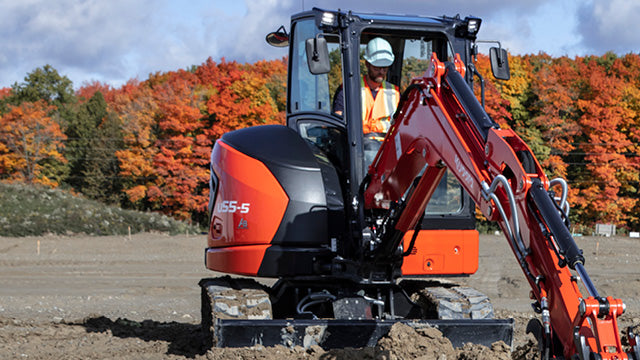

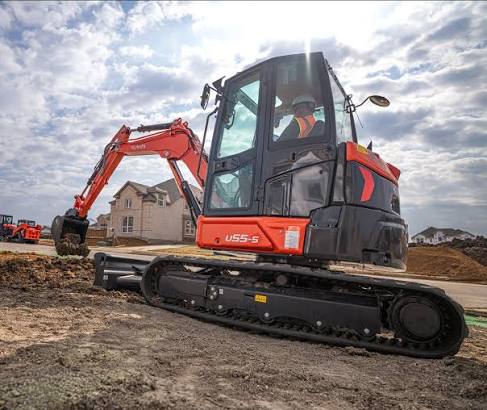

Kubota U55-5 Mini Excavator

Kubota U55-5 Mini Excavator is a tight tail swing excavator that brings versatility to any jobsite. Its well-balanced design combines power and comfort to handle tough jobs and tougher working conditions. The cab interior is designed to improve operator comfort. The hydraulic blade angles left or right from the operator controls to move soil sideways and reduce repositioning during trench backfilling.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Spacious & comfortable Cab: With new interior designs, the cabs offer improved comfort for operators of any size.
• New stage V engine: Exceed Tier IV Final parameters with Auto Idle and superior performance.
• Enhanced LCD screen: The full-colour 7-inch LCD screen displays machine status and operating information.
• Easy to service: A fully opening bonnet and optimum arrangement of internal parts allow quick and efficient service and shorter downtime.
• Angle blade option: The hydraulic blade angles left or right from the operator controls to move soil sideways and reduce repositioning during trench backfilling.
• Adjustable/proportional aux oil flow: The max oil flow settings of both circuits are conveniently adjustable from the LCD panel, no additional tools or manual procedures necessary.
• Advanced features: Employ features like LED light delay turn off for added operator safety, keyless start, and a radio ready configuration.

Specifications

Model

• Model name: U55-5

Engine

• Model: V2607-CR-E5-BH1
• Make: Kubota
• Rated engine speed: 2200 rpm / 2200 rpm
• Displacement: 2615 cc / 159.6 cu. in.
• Output (SAE J1995 gross): 35.5 kW / 47.6 HP
• Output (SAE J1349 net): 34.6 kW / 46.4 HP

Hydraulic system

• Pump capacity: 56.1 l / min / 14.8 gpm
• Bucket: 4614 kgf / 10172 lbf
• Arm: 2662 kgf / 5869 lbf
• Aux 1: 75 l / min / 19.8 gpm
• Aux 2: 37 l / min / 9.8 gpm

Dimensions and weight

• Ground clearance: 310 mm / 12.2 in
• Overall height: 2550 mm / 100.4 in
• Overall length: 5415 mm / 216 in
• Overall width: 1960 mm / 77.2 in
• Width: 1960 mm / 77.2 in
• Height: 410 mm / 16.1 in
• Max. lift above ground: 440 mm / 17.3 in
• Max. drop below ground: 405 mm / 15.9 in
• Including operator’s weight @ 175 lbs.: 5555 kg / 12247 lb

Tracks

• Type: Rubber / Steel

Drive system

• Low: 2.8 km / h / 1.8 mph
• High: 4.9 km / h / 3.1 mph
• Max. traction force: 6567 kgf / 14480 lbf
• Crawler length: 2500 mm / 98.4 in
• Shoe width: 400 mm / 15.7 in
• Ground contact pressure: 0.33 kg / cm2 / 4.6 psi
• Tumbler distance: 1990 mm / 78.3 in

Swing system

• Unit swing speed: 9.2 rpm / 9.2 rpm
• Left: 70 deg / 70 deg
• Right: 55 deg / 55 deg

Fluid capacities

• Reservoir: 41.9 l / 11.1 gal
• System: 77 l / 20.3 gal
• Reservoir: 66 l / 17.4 gal

ROPS / FOPS

• Type: Canopy / Cab
