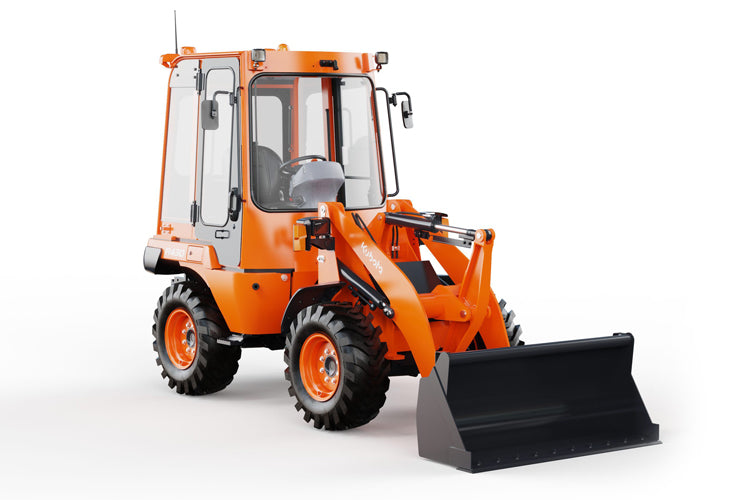

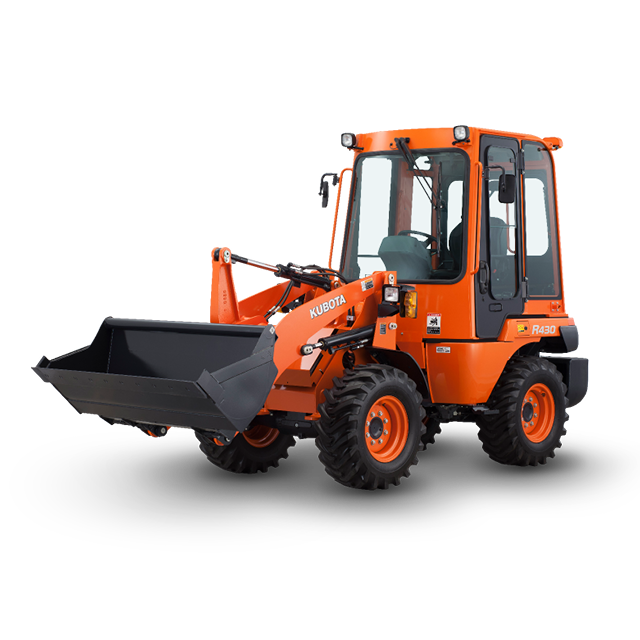

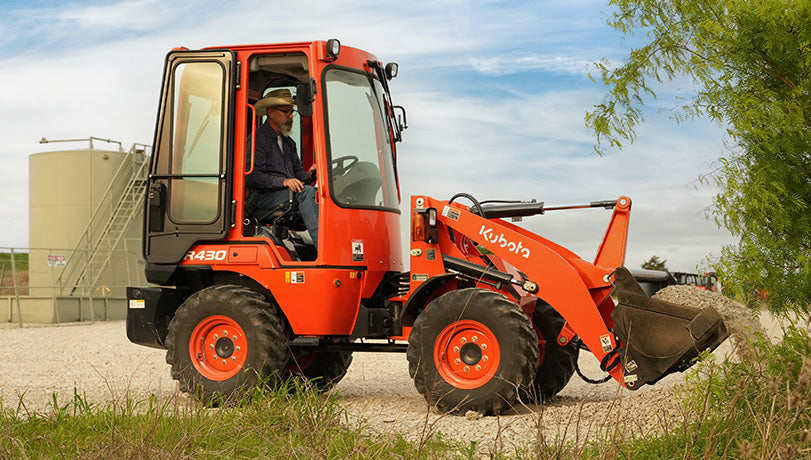

Kubota R430 Wheel Loader

Kubota R430 Wheel Loader is a compact wheel loader designed for loading, stockpiling, material handling and attachment work. Kubota lists engine gross power at 35.5 kW / 47.6 HP, operating weight at 3440 kg / 7583 lb, and breakout force at 23.2 kN / 5215 lbf. As load conditions change, so do the R430’s speed and torque, automatically shifting from high speed/low torque to low speed/high torque.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Articulation and frame oscillation: Articulation allows the rear tires to follow the same track path as the front tires for greater maneuverability and control of the loader.
• Hybrid link system: The well balanced cylinder position of the Kubota Z link system combines the advantages of both Z link and parallel link systems.
• Comfortable work station: Comfort is the key to operator efficiency. That’s why the R430 offers a supremely comfortable cab for the operator.
• Limited slip differential: Limited slip differential Mud, sand, snow, and other challenging terrain are no problem at all for the R430, thanks to its 4-wheel drive and limited slip differential.
• Load sensing transmission: As load conditions change, so do the R430’s speed and torque, automatically shifting from high speed/low torque to low speed/high torque.
• Hydraulic coupler option: Quickly and conveniently exchange attachments to satisfy the needs of any job.
• Powerful Kubota engine: The new R430’s powerful engine produces 47.6 horsepower, a remarkable 20% increase over the R420’s 39.2 horsepower.
• Backhoe option: Kubota’s rugged rear backhoe attachment expands the R430’s versatility.

Specifications

Model

• Model name: R430
• Type: Canopy

Engine

• Rated engine speed: 2600 rpm / 2600 rpm
• Engine gross horsepower @ rpm: 35.5 kW / 47.6 HP
• Engine net horsepower @ rpm: 33.2 kW / 44.5 HP
• Displacement: 1826 cc / 111 cu. in.
• Emission certification: Tier 4
• Model name: D1803-CR-TIE4-WL5

Dimensions and weight

• Ground clearance: 280 mm / 10.8 in
• Overall height: 2515 mm / 99 in
• Overall length: 4355 mm / 172 in
• Overall width: 1520 mm / 59 in
• Weight: 3440 kg / 7583 lb

Drive train/transmission

• Type: Hydrostatic transmission
• Low: 4.8 km/h / 3 mph
• High: 20 km/h / 12.4 mph

Fluid capacities

• Fuel tank capacity: 54 l / 14.3 gal
• Hydraulic system capacity: 58 l / 15.3 gal
• Hydraulic reservoir: 42 l / 11.1 gal

Drive system

• Max. traction force: 24.4 kN / 5485 lbf
• Tire size: 12.5 / 70-16-8PR
• Front/Rear axle traction lock: Limited slip differential
• Angle of articulation (each way): 40 deg / 40 deg
• Angle of rear frame oscillation: 8 deg / 8 deg
• Loader clearance circle: 3695 mm / 145 in
• Track circle: 3085 mm / 121 in

Auxiliary circuit

• Auxiliary hydraulic flow: 42.1 l/min / 11.1 gpm
• Auxiliary hydraulic pressure: 18.6 MPa / 2697 psi

Chassis, axle and brakes

• Service: Enclosed wet disc
• Parking: Spring applied hydraulic released wet disc

Lifting specifications

• With bucket: 2420 kg / 5335 lb
• With bucket: 2085 kg / 4596 lb
• With pallet forks: 1365 kg / 3009 lb
• With bucket: 1042 kg / 2298 lb
• With pallet forks: 682 kg / 1504 lb

Operational specifications

• Standard bucket capacity: 0.38 m3 / 0.5 yd3
• Breakout force: 23.2 kN / 5215 lbf
• Lifting capacity: 16.4 kN / 3687 lbf
• Raise: 4.4 s / 4.4 s
• Lower: 3.3 s / 3.3 s
