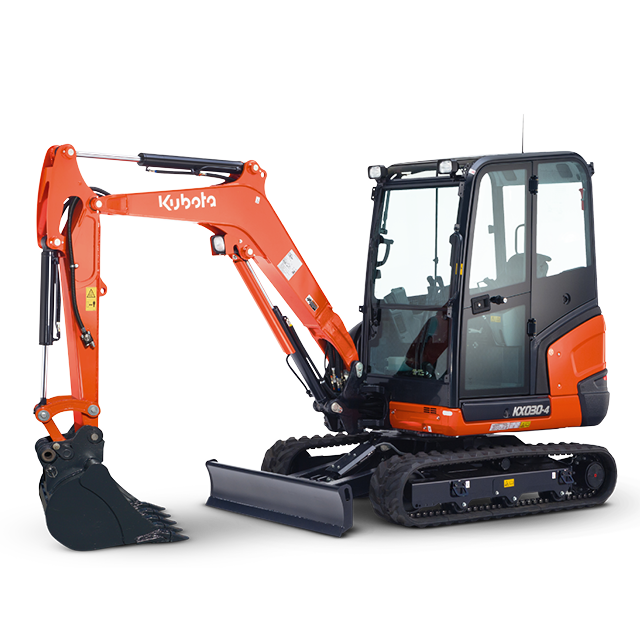

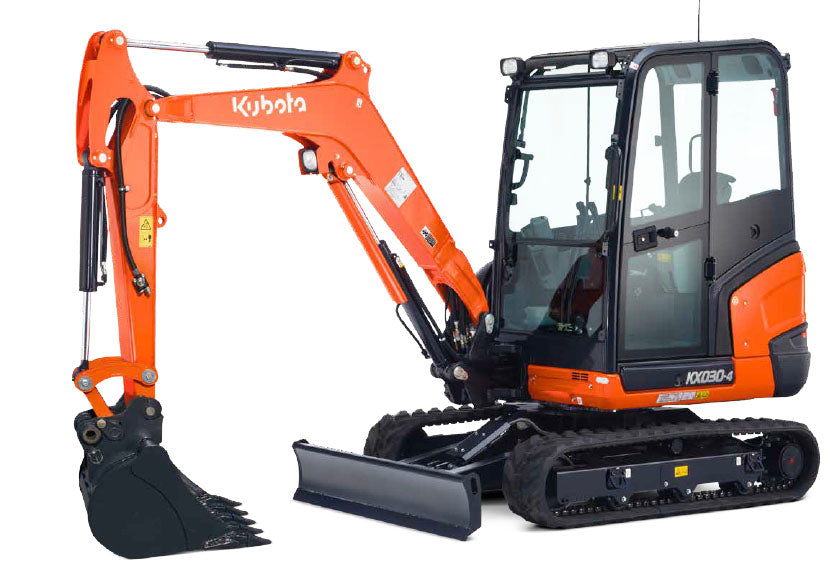

Kubota KX030-4 Mini Excavator

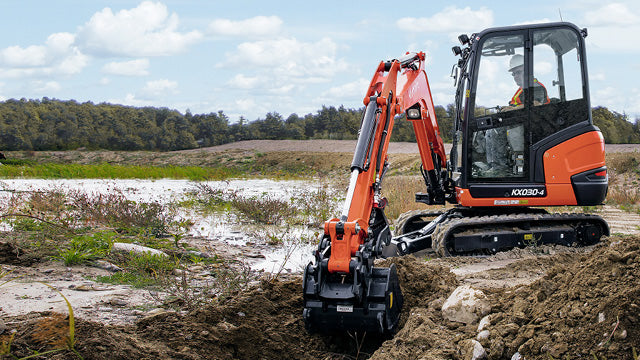

Kubota KX030-4 Mini Excavator is a compact excavator designed for trenching, grading and material handling where access and tail-swing clearance matter. Auto-shift changes travel speed from high to low when turning or entering a pile to maintain control and productivity. A thumb-operated control adjusts auxiliary flow, with return-to-tank capability for one-way-flow hydraulic tools.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Compact 4’11” width: The KX030-4 is powerful but compact: its 4’11” (1500 mm) width enables it to fit into tight spaces.
• Easily and safely towable: Get it to the job site without extra effort. The Cab model weighs under 7000 lbs. so it can be towed with a standard license, depending on weight of trailer.
• Largest Cab in its class: Operator comfort is a priority. That’s why the Kubota KX030-4 features the largest cab in the class, along with a large door entrance to suit any size of operator.
• Auxiliary flow adjustment: A thumb-operated control adjusts auxiliary flow, with return-to-tank capability for one-way-flow hydraulic tools.
• 2-speed with auto shift: Auto-shift changes travel speed from high to low when turning or entering a pile to maintain control and productivity.
• Thumb bracket and relief valves: The factory installed mount brackets and hydraulics significantly reduce the time needed to mount accessories.
• Dozer blade float: the operator don’t need to adjust the dozer height to make a clean ground surface.
• Two Pattern Selector System (TPSS): The Two-Pattern Selection System positioned under the seat allows the operator to shift control styles conveniently while seated.

Specifications

Model

• Model name: KX030-4

Engine

• Model: V1505-E4-BH-3USA
• Rated engine speed: 2250 rpm / 2250 rpm
• Output (SAE J1995 gross): 18.4 kW / 24.7 HP
• Output (SAE J1349 net): 17.7 kW / 23.7 HP

Hydraulic system

• Pump capacity: 31.5 l / min / 8.3 gpm
• Bucket: 3140.7 kgf / 6824 lbf
• Arm: 1580.6 kgf / 3484 lbf

Dimensions and weight

• Ground clearance: 295 mm / 11.6 in
• Overall height: 2420 mm / 95 in
• Overall length: 4600 mm / 181.1 in
• Overall width: 1500 mm / 59 in
• Width: 1500 mm / 59 in
• Height: 300 mm / 11.8 in
• Max. lift above ground: 352 mm / 13.8 in
• Max. drop below ground: 345 mm / 13.5 in
• Including operator’s weight @ 175 lbs.: 2845 kg / 6272 lb (canopy); 2915 kg / 6426 lb (cab)

Tracks

• Type: Rubber / Steel

Drive system

• Low: 2.7 km / h / 1.7 mph
• High: 4.3 km / h / 2.7 mph
• Max. traction force: 3325 kgf / 7330 lbf
• Crawler length: 1980 mm / 77.9 in
• Shoe width: 300 mm / 11.8 in
• Ground contact pressure: 0.27 kg / cm2 / 3.9 psi
• Tumbler distance: 1560 mm / 61.4 in

Swing system

• Unit swing speed: 9.2 rpm / 9.2 rpm
• Left: 76 deg / 76 deg
• Right: 57 deg / 57 deg

Fluid capacities

• Reservoir: 33.9 l / 9 gal
• System: 52 l / 13.7 gal
• Reservoir: 48 l / 12.7 gal

ROPS / FOPS

• Type: Canopy / Cab
