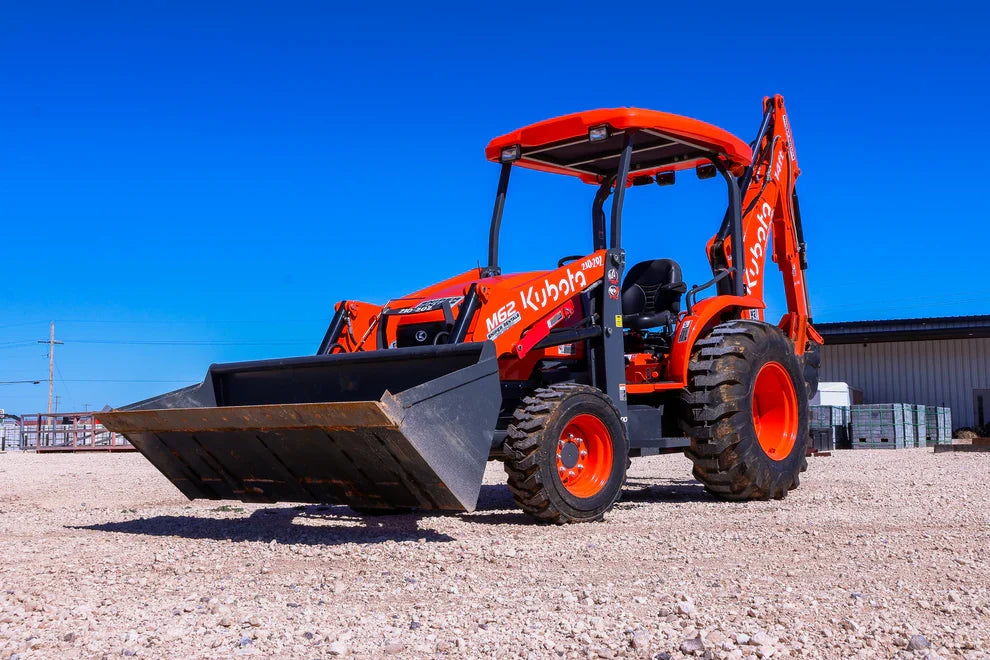

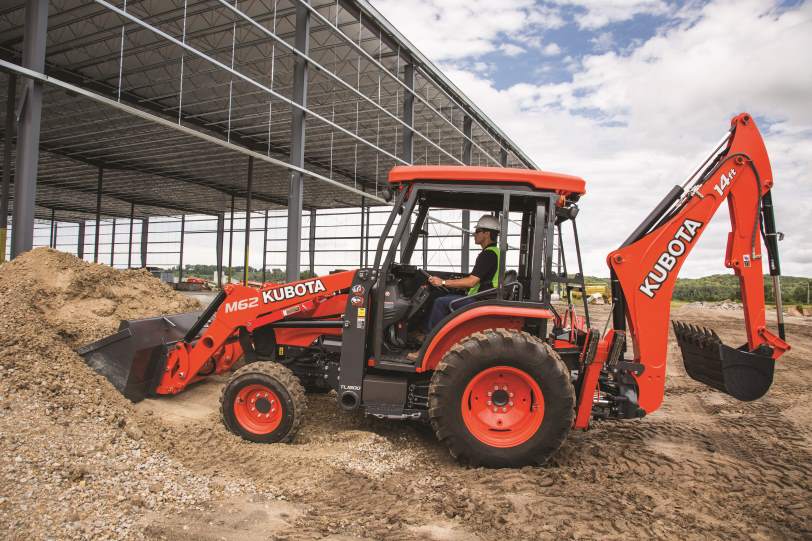

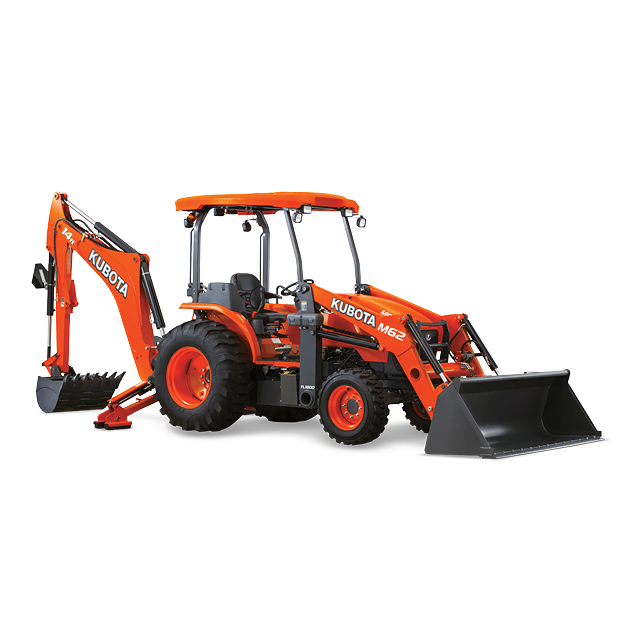

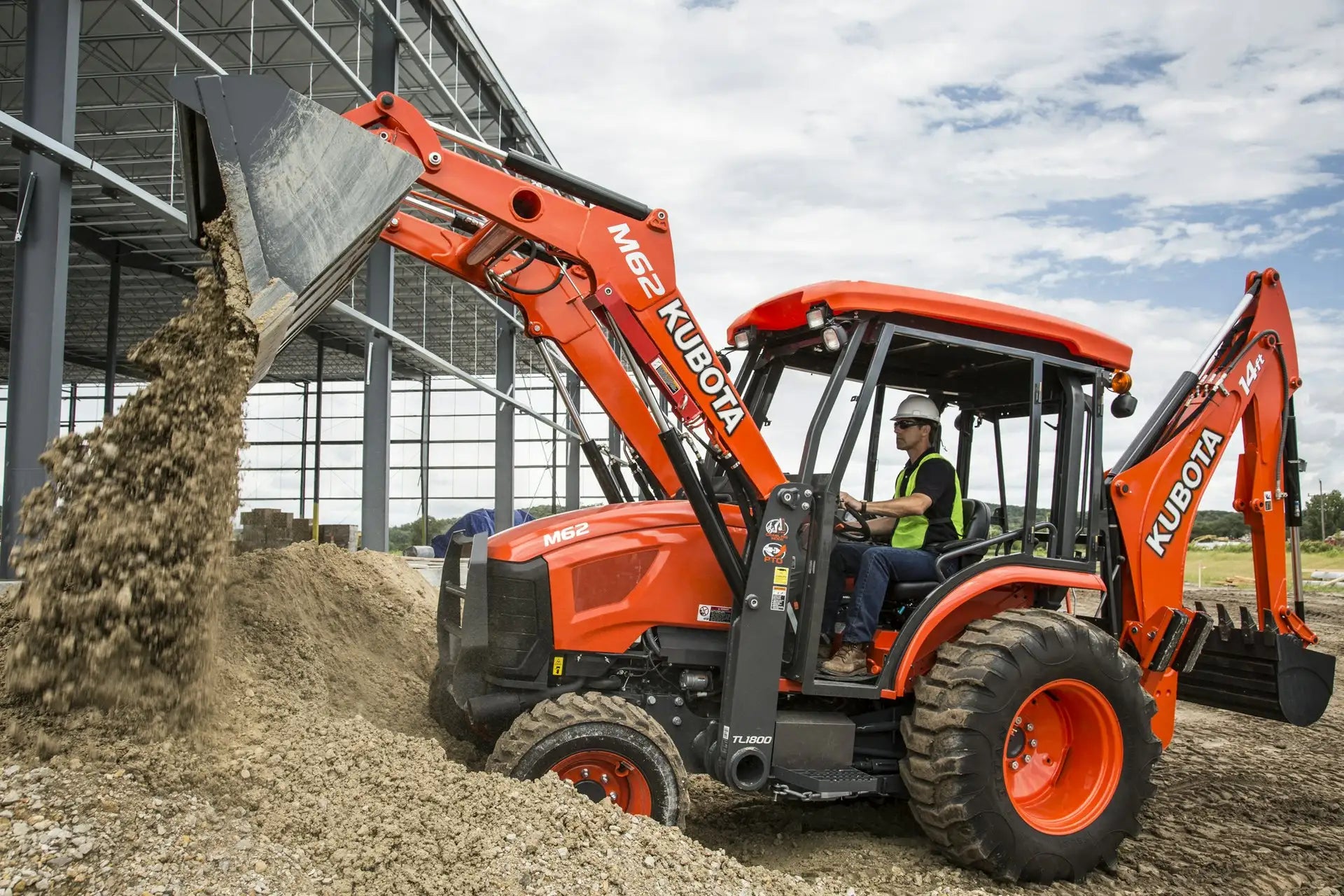

Kubota M62 Tractor Loader Backhoe

Kubota M62 Tractor Loader Backhoe is a tractor-loader-backhoe designed to combine loader work, excavation and three-point implement capability in one machine. Kubota lists engine gross power at 47 kW / 63 HP, PTO power at 34.3 kW / 46 HP, and transmission at HST Plus (6 range). The LCD IntelliPanel displays operating status, engine conditions, warnings and maintenance information.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Quick coupler: Switch from road-use side to steel anchor by simply rotating the unit by hand.
• IntelliPanel: The LCD IntelliPanel displays operating status, engine conditions, warnings and maintenance information.
• Mechanical 2-lever quick coupler: Kubota’s 2-lever quick coupler lets the operator quickly and easily attach and detach front implements.
• Backhoe crawling mode: Now the operator can save time when repositioning during backhoe operations.
• Category I and II 3-point hitch (optional): Do even more by attaching any of a wide array of rear-mounted implements to the Category I and II 3-point hitch.
• Flip-over stabilizer pad: Switch from road-use side to steel anchor by simply rotating the unit by hand.

Specifications

Model

• Model name: M62TLB

Engine

• Air pre-cleaner: Dual element
• Cylinders: 4
• Rated engine speed: 2700 rpm / 2700 rpm
• Engine gross horsepower @ rpm: 47 kW / 63 HP
• Engine net horsepower @ rpm: 44.1 kW / 59.1 HP
• PTO horsepower: 34.3 kW / 46 HP
• Displacement: 2434 cc / 148.5 cu. in.
• Emission certification: EPA Final Tier 4
• Fuel tank capacity: 67 l / 17.7 gal

Power take off (PTO)

• Type: Independent
• PTO/engine speed: 540 rpm / 540 rpm

Drive train/transmission

• Max. traveling speed: 24.9 km/h / 15.5 mph
• Range gear shift: Seat side, right
• Speed: Infinite
• Transmission type: HST Plus (6 range)
• Brake type: Wet disc
• Differential lock - Rear axle: Standard

Hydraulic system

• 3-Point hitch: Optional
• Position control: Standard
• Pump capacity: 116.9 l/min / 30.9 gpm
• 24" behind lift point: 1250 kg / 2756 lb
• Steering type: Hydrostatic

Dimensions and weight

• Wheelbase: 2050 mm / 80.7 in
• Front: 10 × 16.5–R4
• Rear: 17.5L–24 R4
• Front: 1440 mm / 56.7 in
• Rear: 1462 mm / 57.6 in
• Without brake: 3.3 m / 10.8 ft
• Power unit + 2 implements: 4048 kg / 8925 lb

Safety equipment

• Back up alarm: Standard
• FOPS: Standard
• Open Station: 4 post

Other

• Deck type: Walk-through deck
• Loader-integrated reinforced frame: Standard
• Glow plug: Super glow
• Reversible seat: Standard
• Hard nose slanted hood: Standard
• Horn: Standard
• Tilt steering wheel: Standard
