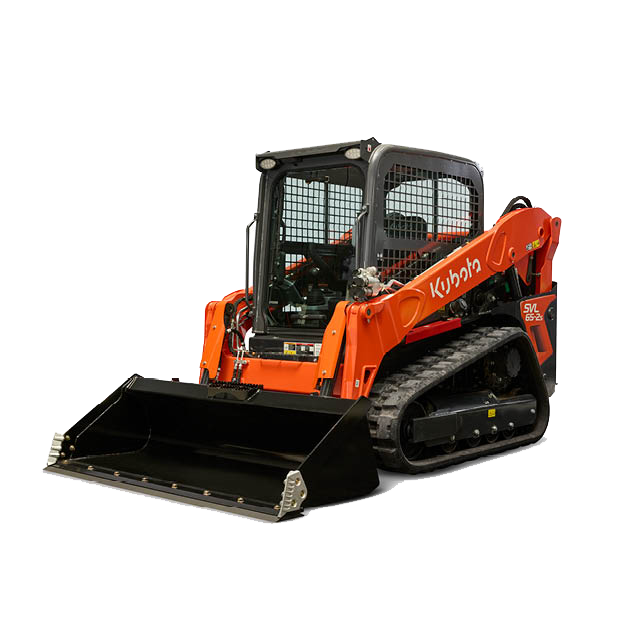

Kubota SVL65-2S Compact Track Loader

Kubota SVL65-2S Compact Track Loader is a compact track loader designed for grading, loading and hydraulic attachment work on demanding ground conditions. Kubota lists engine gross power at 51 kW / 68.4 HP, operating weight at 3915 kg / 8631 lb, and rated operating capacity at 1361 kg / 3000 lb. LED work lights provide a programmable 1-to-20-minute shutoff delay after the engine stops.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• LED work lights with delayed auto turn-off: LED work lights provide a programmable 1-to-20-minute shutoff delay after the engine stops.
• Premium 7” LCD monitor standard: The 7-inch colour LCD touch panel displays machine status and provides touch and jog-dial controls, indicators and alerts.
• Auto downshift: The SVL65-2s features auto down shift for maximum traction when turning.
• Air Ride Seat with Heat: A high-back heated air-ride cloth seat provides adjustable cushioning and support.
• Rear view camera standard: The factory-designed rear-view camera displays a wide-angle view on the cab monitor while reversing.
• Kubota Shockless Ride: The SVL65-2s can be equipped with Kubota Shockless Ride, when activated the loader arm cylinders become shock absorbers for what the operator are carrying.
• Easy entry rollup front door: The roll-up front door provides easy entry and exit regardless of attachment position.
• High flow hydraulic option with 14 pin connector: High-flow auxiliary hydraulics up to 27.0 gpm support demanding attachments, with a 14-pin connector and programmable flow control.
• Low effort hydraulics pilot controls: Work next to home structures and curbs with confidence. Kubota’s hydraulic controls provide maximum feel and precision, with no adjustments or settings necessary.
• Wide cab: Maximize operator visibility with a wide cab, complete with roll-up door.
• Vertical lift arms: Reach the tallest dumpster or truck with the outstanding vertical lift arms on the SVL65-2s.
• Easy maintenance: Lift-up seat, hood and operator-platform access points simplify HST, engine and mower-deck maintenance.
• Track response: Mild, Normal and Quick travel-response settings adjust control sensitivity for different surface conditions.

Specifications

Model

• Model name: SVL65-2S
• Type: Closed CAB

Engine

• Aspiration: Turbocharged
• Bore: 87 mm / 3.4 in
• Stroke: 110 mm / 4.3 in
• Rated engine speed: 2600 rpm / 2600 rpm
• Engine gross horsepower @ rpm: 51 kW / 68.4 HP
• Engine net horsepower @ rpm: 44.7 kW / 59.9 HP
• Displacement: 2615 cc / 159.6 cu. in.
• Model name: V2607-CR-TE4
• Cylinders: 4

Dimensions and weight

• Ground clearance: 233 mm / 9.2 in
• Wide: 320 mm / 12.6 in
• Operating weight: 3915 kg / 8631 lb

Fluid capacities

• Fuel tank capacity: 82 l / 21.7 gal
• Hydraulic tank: 20 l / 5.3 gal
• Hydraulic system capacity: 48 l / 12.7 gal

Lifting specifications

• Tipping load. 50%: 1361 kg / 3000 lb
• Tipping load. straight: 2722 kg / 6000 lb
• Bucket: 2093 kgf / 4614 lbf
• Lift arm: 1935 kgf / 4266 lbf
• Lift arm path: Vertical
• Tipping load. 35%: 953 kg / 2100 lb

Hydraulic system

• Standard: 65.8 l/min / 17.4 gpm
• High: 102.2 l/min / 27 gpm
• Auxiliary hydraulic pressure: 230 kg/cm2 / 3271 psi

Drive system

• Standard: 0.3797 kg/cm2 / 5.4 psi
• Track rollers (per side): 4
• Max. traction force: 3813 kgf / 8406 lbf
• High: 11.5 km/h / 7.1 mph
• Low: 7.8 km/h / 4.9 mph
