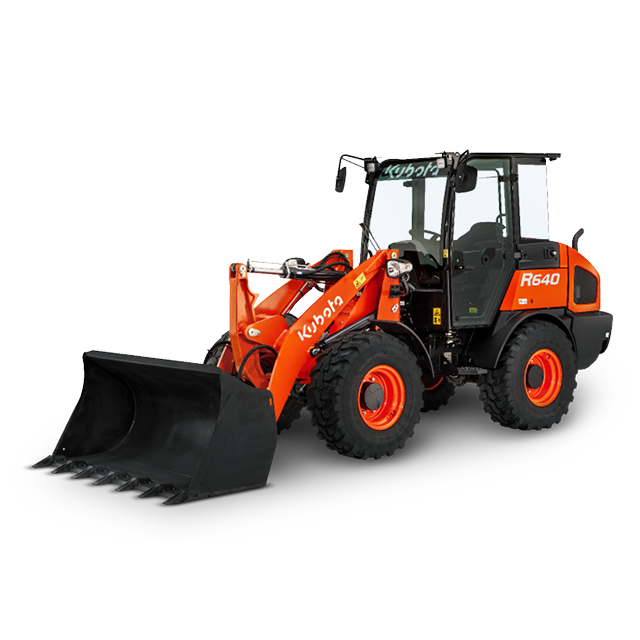

Kubota R640 Wheel Loader

Kubota R640 Wheel Loader is a compact wheel loader designed for loading, stockpiling, material handling and attachment work. Kubota lists engine gross power at 48 kW / 64.3 HP, operating weight at 5245 kg / 11563 lb, and breakout force at 37.9 kN / 8526 lbf. Long reach and high clearance support loading and material-handling work.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Superb lifting performance: A long reach and high clearance paired with impressive lifting power make material handling easy.
• Modern high-visibility cabin: The R40’s expanded cabin offers a panoramic view for easier and safer operation.
• Coupler options: Efficiently exchange attachments to meet the needs of the job at hand.
• Simplified control layout: The R40 series features an updated interior layout focused on easier operation and visibility.
• Aux service ports: Conveniently located on the rear of the attachment quick coupler flat face, no drip couplers provide easy access to power the operator's hydraulic attachments.
• Tire options: Available tire packages support different terrain and seasonal conditions.
• Hybrid link design: The well balanced cylinder position of the Kubota Z link system combines the advantages of both Z link and parallel link systems.
• LED work lights: Bright LED work lights provide plenty of illumination for nighttime tasks.

Specifications

Model

• Model name: R640
• Type: Canopy/Cab

Engine

• Rated engine speed: 2400 rpm / 2400 rpm
• Displacement: 2615 cc / 160 cu. in.
• Emission certification: Tier4 Final
• Output (SAE J1995 gross): 48 kW / 64.3 HP
• Output (SAE J1349 net): 45.6 kW / 61.1 HP
• Model name: V2607-CR-TE5-WL

Dimensions and weight

• Ground clearance: 340 mm / 13 in
• Overall height: 2500 mm / 98 in
• Overall length: 5480 mm / 216 in
• Overall width: 1805 mm / 71 in
• Weight: 5245 kg / 11563 lb

Drive train/transmission

• Type: Hydrostatic transmission
• Low: 0 km/h / 0 mph
• High: 20 km/h / 12.4 mph

Fluid capacities

• Fuel tank capacity: 70 l / 18.5 gal
• Hydraulic system capacity: 55 l / 14.5 gal
• Hydraulic reservoir: 39 l / 10.3 gal

Drive system

• Max. traction force: 38.2 kN / 8588 lbf
• Tire size: 405/70R18
• Front/Rear axle traction lock: Diff-lock (both axles)
• Angle of articulation (each way): 40 deg / 40 deg
• Angle of rear frame oscillation: 8 deg / 8 deg
• Loader clearance circle: 4221 mm / 166 in

Auxiliary circuit

• Auxiliary hydraulic flow: 67.2 l/min / 17.8 gpm
• Auxiliary hydraulic pressure: 20.5 MPa / 2973 psi

Chassis, axle and brakes

• Service: Enclosed wet disc
• Parking: Spring applied hydraulic released wet disc

Lifting specifications

• With bucket: 3520 kg / 7760 lb
• With bucket: 3090 kg / 6812 lb

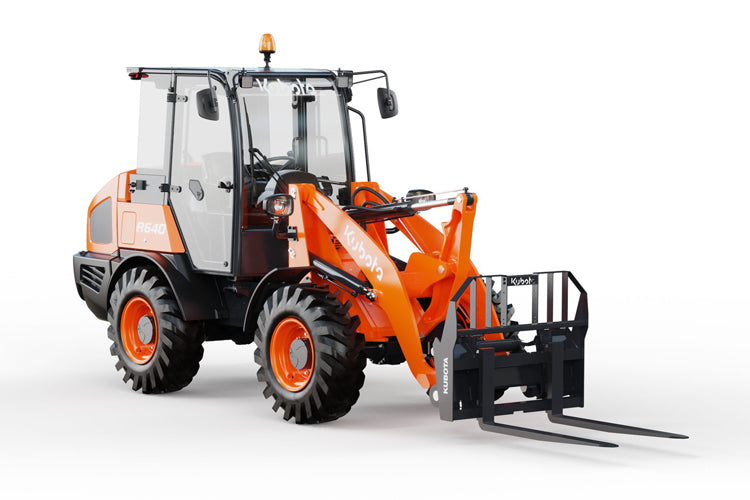

• With pallet forks: 2410 kg / 5313 lb
• With bucket: 1545 kg / 3406 lb
• With pallet forks: 1450 kg / 3197 lb
• With pallet forks: 2750 kg / 6063 lb

Operational specifications

• Standard bucket capacity: 0.94 m3 / 0.94 yd3
• Breakout force: 37.9 kN / 8526 lbf
• Lifting capacity: 36.3 kN / 8161 lbf
• Raise: 5.8 s / 5.8 s
• Lower: 3.9 s / 3.9 s
