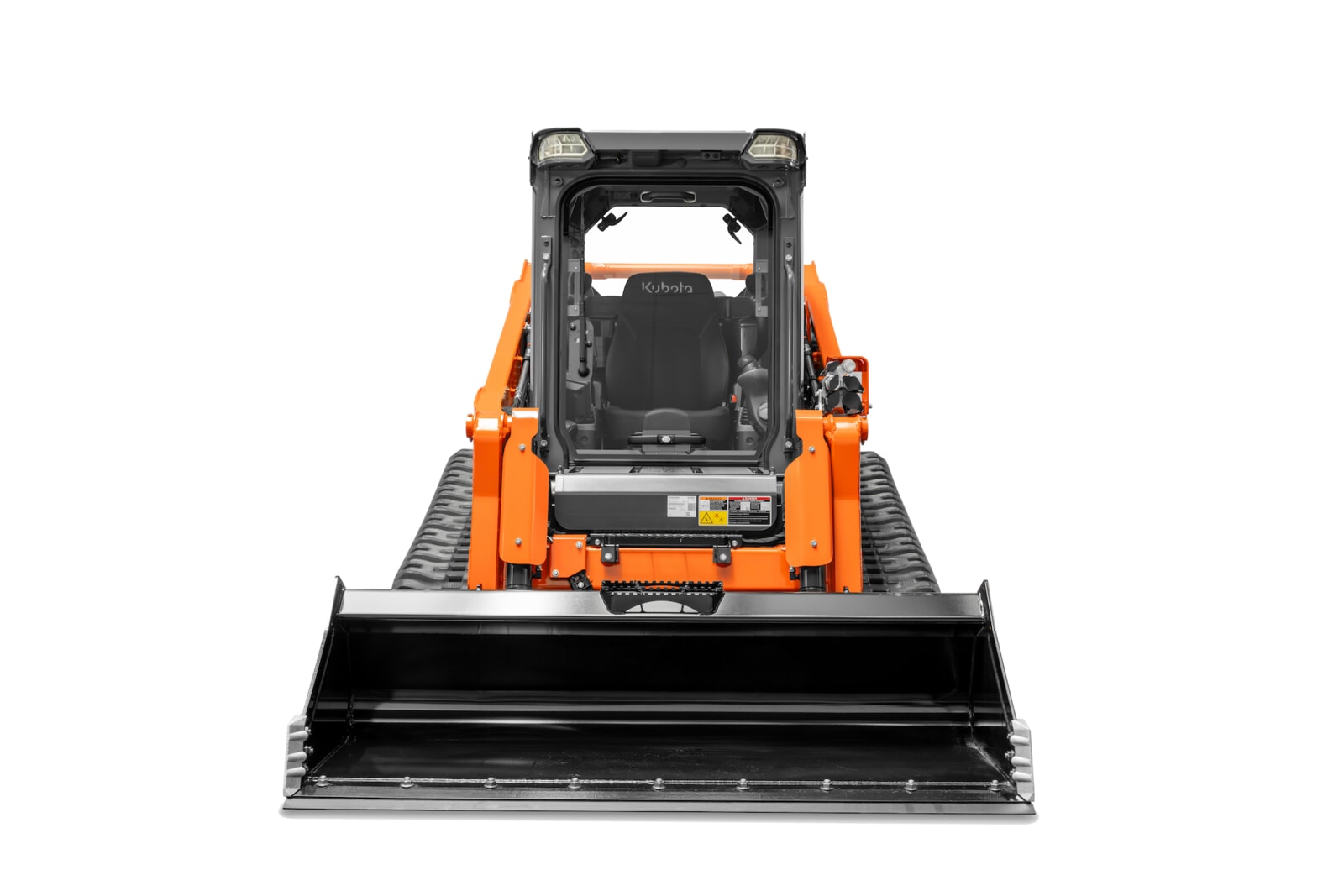

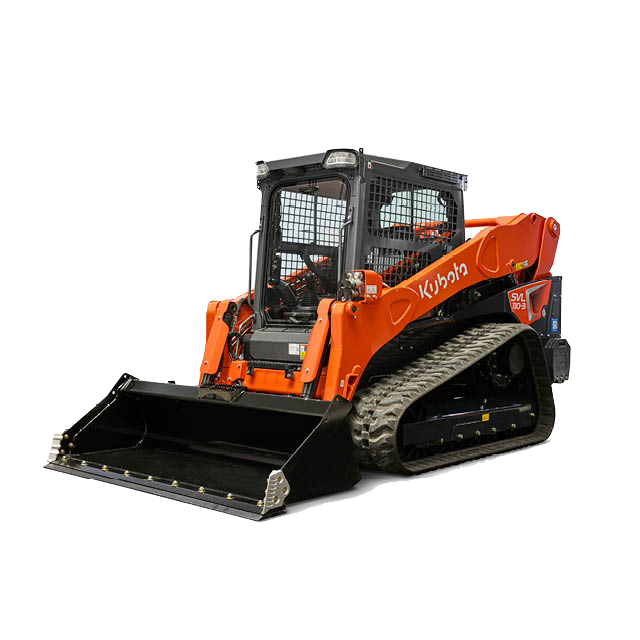

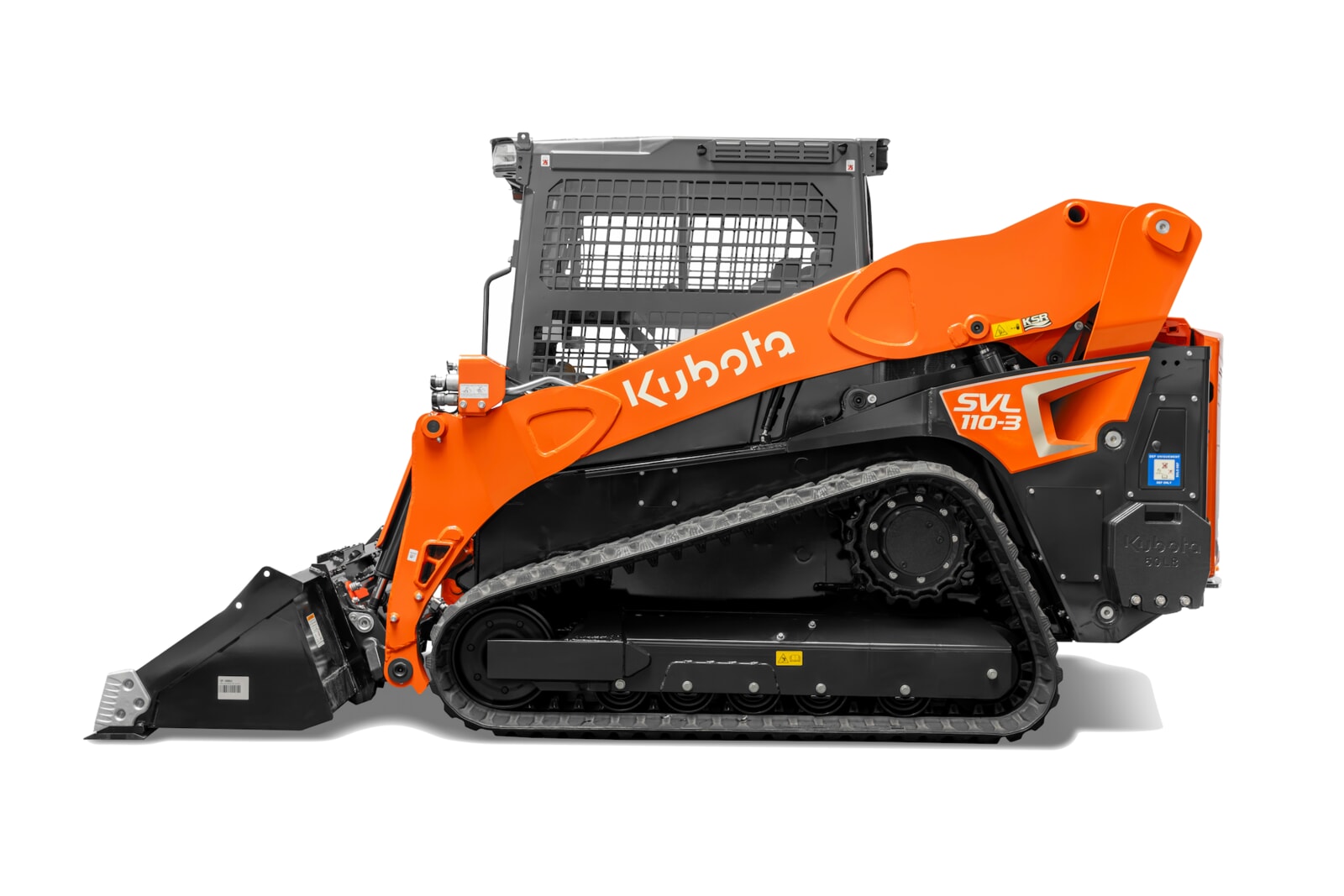

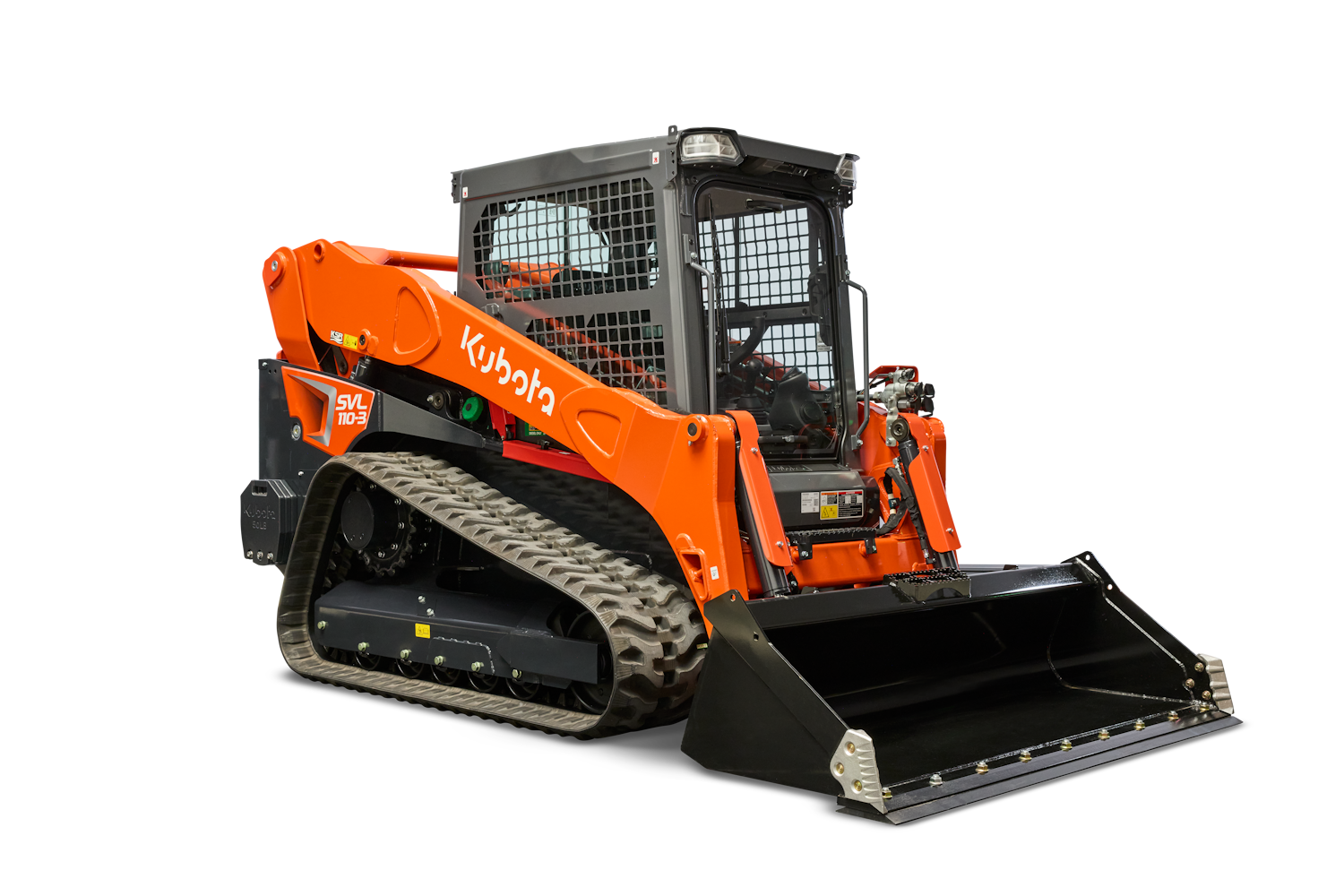

Kubota SVL110-3 Compact Track Loader

Kubota SVL110-3 Compact Track Loader is a compact track loader designed for grading, loading and hydraulic attachment work on demanding ground conditions. Kubota lists engine gross power at 84 kW / 112.7 HP, operating weight at 5589 kg / 12322 lb, and rated operating capacity at 2398 kg / 5286 lb. High-flow auxiliary hydraulics up to 45 gpm support demanding attachments, with a 14-pin connector and programmable flow control.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• High flow auxiliaries with 14 pin connector: High-flow auxiliary hydraulics up to 45 gpm support demanding attachments, with a 14-pin connector and programmable flow control.
• Auxiliary Performance System (APS): APS manages auxiliary flow and engine power to keep high-flow attachments operating efficiently under load.
• Creep mode: Creep mode lets the operator set travel speed from a crawl to top low-range speed while retaining full joystick stroke and hydraulic control.
• Closed center hydraulics: Closed-centre hydraulics allow simultaneous operation of the loader, bucket cylinders and auxiliary functions for improved productivity and efficiency.
• Sealed cab for quiet comfort: The sealed cab helps reduce dust and outside noise, with an interior sound level of 79 dBA.
• Easy Entry Roll-Up Door: The roll-up front door provides easy entry and exit regardless of attachment position.
• Premium 7” LCD monitor standard: The 7-inch colour LCD touch panel displays machine status and provides touch and jog-dial controls, indicators and alerts.
• LED work lights with delayed auto turn-off: LED work lights provide a programmable 1-to-20-minute shutoff delay after the engine stops.
• Air ride seat with heat: A high-back heated air-ride cloth seat provides adjustable cushioning and support.
• Rear view camera standard: The factory-designed rear-view camera displays a wide-angle view on the cab monitor while reversing.
• Ride control standard: Ride control cushions heavy loads to improve stability, reduce operator fatigue and limit material loss over rough terrain.
• Engine auto-idle: Engine auto-idle reduces rpm during inactivity and restores engine speed when a control is used, helping reduce fuel use, noise and emissions.
• Track response: Mild, Normal and Quick travel-response settings adjust control sensitivity for different surface conditions.
• Decelerator pedal: The decelerator pedal lets the operator reduce engine rpm on demand, particularly when grading or pushing material.
• Auto-Shift: Auto-shift changes travel speed from high to low when turning or entering a pile to maintain control and productivity.
• Radiator easy access swing out design: The tool-free swing-out radiator provides access to the water separator and engine filters for routine maintenance.
• Easy maintenance and cleanouts: The cab tilts 72 degrees without raising the lift arms for hydraulic access, while chassis and loader-arm cleanouts simplify debris removal.

Specifications

Model

• Model name: SVL110-3
• Type: Closed CAB

Engine

• Aspiration: Turbocharged
• Bore: 100 mm / 3.9 in
• Stroke: 120 mm / 4.7 in
• Rated engine speed: 2500 rpm / 2500 rpm
• Engine gross horsepower @ rpm: 84 kW / 112.7 HP
• Engine net horsepower @ rpm: 75.6 kW / 101.3 HP
• Displacement: 3769 cc / 230 cu. in.
• Model name: V3800-TIE5-LA
• Cylinders: 4

Dimensions and weight

• Ground clearance: 233 mm / 9.2 in
• Operating weight: 5589 kg / 12322 lb
• Standard: 450 mm / 17.7 in
• Length of track on ground: 1667 mm / 65.6 in

Fluid capacities

• DEF tank capacity: 12.7 l / 3.4 gal
• Fuel tank capacity: 115.7 l / 30.6 gal
• Hydraulic tank: 40.2 l / 10.6 gal
• Hydraulic system capacity: 70.1 l / 18.5 gal

Drive system

• Low: 8.8 km/h / 5.5 mph
• High: 13.4 km/h / 8.4 mph
• Max. traction force: 5976 kgf / 13174.7 lbf
• Standard: 0.3375 kg/cm2 / 4.8 psi
• Track rollers (per side): 5

Lifting specifications

• Tipping load. 50%: 2398 kg / 5286 lb
• Tipping load. straight: 4795 kg / 10571 lb
• Bucket: 3469 kgf / 7650 lbf
• Lift arm: 2398 kgf / 5288 lbf
• Lift arm path: Vertical
• Tipping load. 35%: 1678 kg / 3700 lb

Hydraulic system

• High: 170.4 l/min / 45 gpm
• Auxiliary hydraulic pressure: 250 kg/cm2 / 3553 psi
