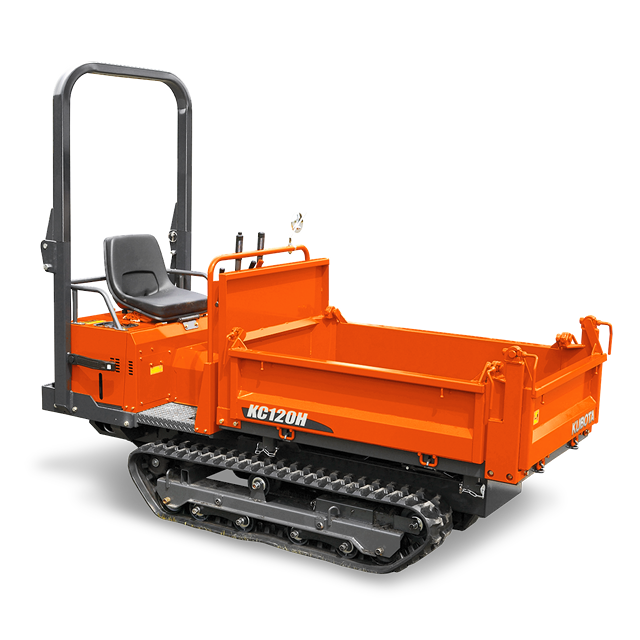

Kubota KC120 Track Carrier

Kubota KC120 Track Carrier is a rubber-track carrier designed to move materials across confined, soft or uneven jobsites. Kubota lists engine gross power at 10.8 kW / 14.5 HP, maximum payload at 1200 kg / 2646 lb, and operating weight at 910 kg / 2006 lb. The Kubota diesel engine combines strong torque and output with efficient fuel use and cleaner emissions.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Clean, environmentally friendly engine: The Kubota diesel engine combines strong torque and output with efficient fuel use and cleaner emissions.
• Large load capacity: Though quite compact, the KC-Series of Kubota rubber track carriers feature notably large load capacities, 1,543 lbs (700 kg) for the KC70 and 2,646 lbs (1200 kg) for the KC120HC.

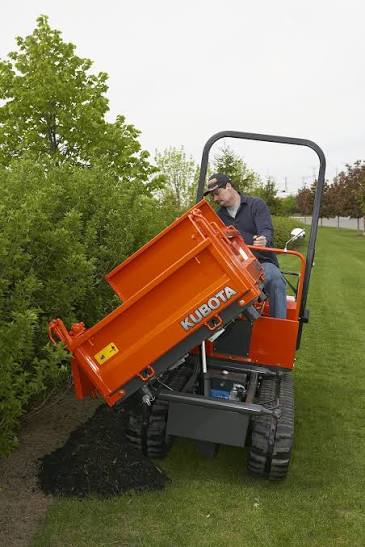

• Generous dumping angles: The KC70 provides a generous 68° dumping angle in the forward direction.

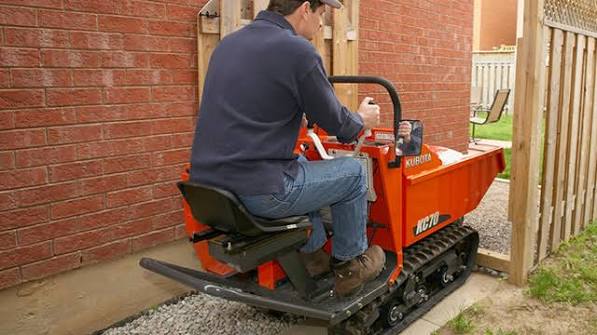

• Compact design: To more easily pass through gates and between structures in close proximity as well as to negotiate otherwise proh itively narrow spaces, models in the KC Series feature exceptionally efficient compactness.
• Travel & traction: The flexible bogie style under rollers absorb shock and help contribute to smoother and more stable travel even on rough surface.
• Easy one-touch seat adjustment: The KC120HC-4S’s new slide lever simplifies adjusting the seat backwards and forwards.

Specifications

Model

• Model name: KC120

Engine

• Model: KUBOTA Z602
• Cylinders: 2
• Rated engine speed: 3200 rpm / 3200 rpm
• Engine gross horsepower @ rpm: 10.8 kW / 14.5 HP
• Displacement: 599 cc / 37 cu. in.
• Fuel tank capacity: 19.5 l / 5.1 gal

Dimensions and weight

• Ground clearance: 145 mm / 5.7 in
• Weight: 910 kg / 2006 lb
• Length: 2620 mm / 103.1 in
• Width: 975 mm / 38.4 in
• Max. payload capacity: 1200 kg / 2646 lb
• Height: 2115 mm / 83.3 in
• Track centre-to-centre distance: 720 mm / 28.3 in
• Length: 1470 mm / 57.9 in
• Width: 855 mm / 33.7 in
• Height: 330 mm / 13 in
• Capacity - struck: 0.4 m3 / 0.52 yd3
• Capacity - heaped: 0.52 m3 / 0.68 yd3
• Track width: 230 mm / 9.1 in
• Length of track on ground: 1180 mm / 46.5 in

Drive train/transmission

• Type: Hydrastatic + Mechanica
• Forward: 1
• Reverse: 1

Traveling speed

• Forward: 5.6 km/h / 3.5 mph
• Reverse: 3.5 km/h / 2.2 mph

Other

• Dumping system: Hydraulic
• Dumping direction: Front / Right side / Left side
• Approx.: 60 deg / 60 deg
