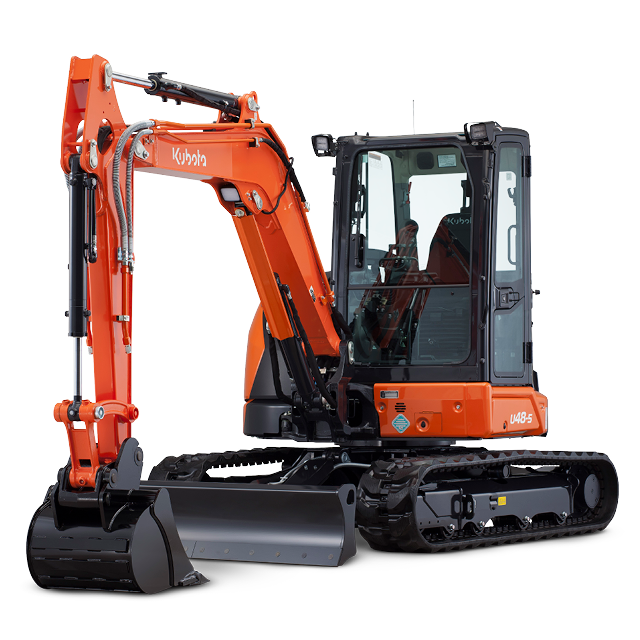

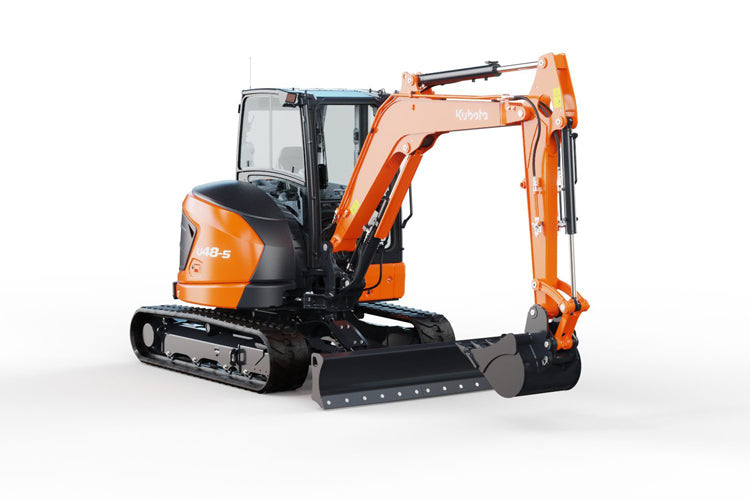

Kubota U48-5 Mini Excavator

Kubota U48-5 Mini Excavator is a 4.8-ton tight tail swing excavator with advanced performance and a large cab that features a 7” LCD monitor to provide vital information and auxiliary flow settings. Five auxiliary-flow settings and an electronic return-to-tank circuit support one-way-flow hydraulic tools. The factory-designed rear-view camera displays a wide-angle view on the cab monitor while reversing.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Large comfortable Cab to suit all operators: Not all operators are the same size. That’s why the interior of the Kubota U48-5 is generously-sized, with an adjustable seat and available air ride seat and sunshade.
• Available 5 auxiliary flow settings: Go with the flow: there are 5 auxiliary flow settings available on the U48-5, to match the attachment performance with the electronic return-to-tank for one-way flow attachments such as the Kubota Hydraulic Breaker.
• 9500 lbs of bucket breakout force: Get the power to get the job done. With performance-matched buckets to help provide 9500lbs. of bucket breakout force, even tough digging jobs can be completed quickly and efficiently.
• Keyless start option: When time is precious, it’s the little things that make the difference.
• Increased visibility: Visibility is critical when operating equipment. With more glass in the front window, skylight, and left and right windows, operators get a wider viewpoint.
• Optional - Rear-view camera. See the difference.: The factory-designed rear-view camera displays a wide-angle view on the cab monitor while reversing.
• Angle blade optional hydraulic angle blade*: The hydraulic blade angles left or right from the operator controls to move soil sideways and reduce repositioning during trench backfilling.
• LED work lights with turn-off delay: LED work lights provide a programmable shutoff delay after the engine stops.

Specifications

Model

• Model name: U48-5

Engine

• Model: D1803-CR-TE5-BH3
• Make: Kubota
• Rated engine speed: 2200 rpm / 2200 rpm
• Displacement: 1826 cc / 111.4 cu. in.
• Output (SAE J1995 gross): 30.1 kW / 40.4 HP
• Output (SAE J1349 net): 29 kW / 38.9 HP

Hydraulic system

• Pump capacity: 118.8 l / min / 31.4 gpm
• Bucket: 4220 kgf / 9304 lbf
• Arm: 2406 kgf / 5304 lbf
• Aux 1: 65 l / min / 17.2 gpm
• Aux 2: 37 l / min / 9.8 gpm

Dimensions and weight

• Ground clearance: 310 mm / 12 in
• Overall height: 2550 mm / 100 in
• Overall length: 5355 mm / 210 in
• Overall width: 1960 mm / 77 in
• Width: 1960 mm / 77 in
• Height: 410 mm / 16 in
• Max. lift above ground: 440 mm / 17 in
• Max. drop below ground: 405 mm / 15.9 in
• Including operator’s weight @ 165 lbs.: 4920 kg / 10848 lb

Tracks

• Type: Rubber / Steel

Drive system

• Low: 2.8 km / h / 1.7 mph
• High: 4.9 km / h / 3 mph
• Max. traction force: 5440 kgf / 11993 lbf
• Crawler length: 2500 mm / 98 in
• Shoe width: 400 mm / 15.7 in
• Ground contact pressure: 0.28 kg / cm2 / 4 psi
• Tumbler distance: 1990 mm / 78 in

Swing system

• Unit swing speed: 9.2 rpm / 9.2 rpm
• Left: 70 deg / 70 deg
• Right: 53 deg / 53 deg

Fluid capacities

• Reservoir: 40 l / 10.6 gal
• System: 76 l / 20.1 gal
• Reservoir: 66 l / 17.4 gal

ROPS / FOPS

• Type: Canopy / Cab
