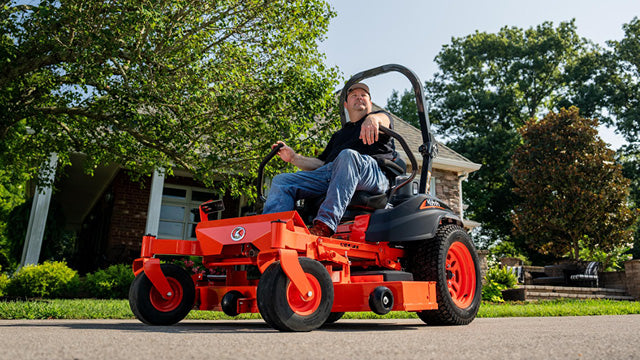

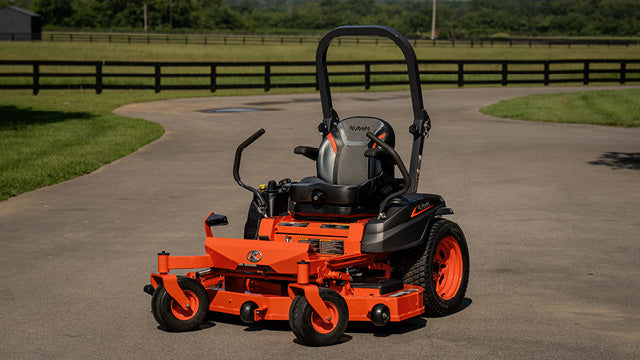

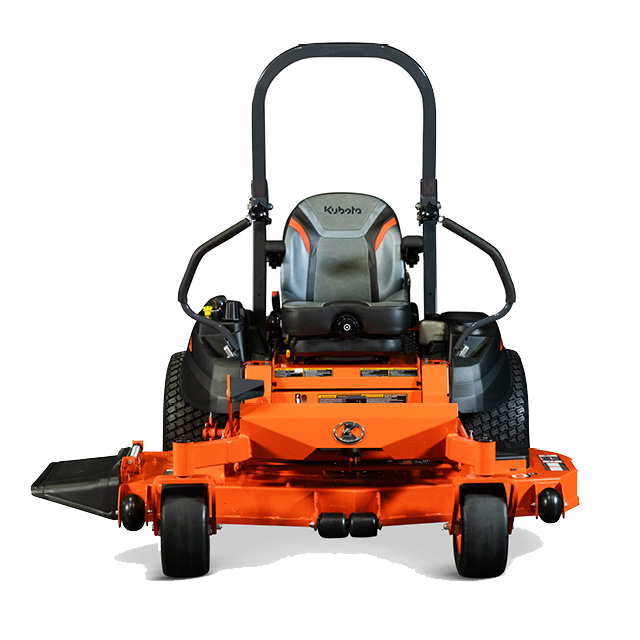

Kubota Z452 Zero-Turn Mower

Kubota Z452 Zero-Turn Mower is a commercial EFI zero-turn mower available with 54-inch or 60-inch side-discharge decks. Both configurations use a 26 HP Kawasaki EFI gasoline engine and Hydro-Gear 3600 transmission, with shared specifications combined below and differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Commercial-grade drivetrain: Both deck configurations use a 26 HP Kawasaki FT-series EFI engine and Hydro-Gear ZT3600 transmission for dependable commercial mowing performance.
• Sit back and mow in comfort: Say goodbye to uncomfortable mowing. The Z400’s deluxe high-back suspension seat and patented vibration-reducing technology ensures a smooth, fatigue-free ride.
• Tailored to you for maximum control: The Z400 was designed with the operator's comfort in mind, with fully adjustable controls for maximum ergonomic support.
• One push deck lift: The K-Lift system allows for quick and effortless adjustment of the cutting height.
• Precision crafted for a flawless cut: The Z400’s 5” deep, 10 gauge fabricated mower deck is engineered for strength and durability, while delivering consistently high-quality cuts.
• Built for easy maintenance: Keeping the operator's Z400 in peak condition is simple. the operator can quickly perform maintenance and cleaning with tool-less mower deck access and a flip-up seat.
• Power when you need it most: With Electronic Fuel injection (EFI) technology, the Z452 continuously adjusts engine power to match cutting load and ground speed.
• Built for a smooth ride: Semi-pneumatic caster tires are engineered to absorb impacts on the job without relying on air, alleviating concerns about downtime and allowing the operator to mow in total comfort and confidence.

Specifications

Model

• Model name: Z452KWi-54 / Z452KWTi-60

Engine

• Model: GH730V
• Type: EFI Air cooled V-twin vertical crank shaft gasoline engine
• Make: Kawasaki (FT Series)
• Displacement: 726 cc / 44.3 cu. in.
• Safety starting system: Push button
• Engine gross power: 19.3882 kW / 26 HP

Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Dimensions and weight

• Overall length: 2055 mm / 80.9 in
• Wheelbase: 1255 mm / 49.4 in
• Top of Open Station: 1772 mm / 69.8 in
• With mower: 1710 mm / 67.3 in (Z452KWi-54); 1870 mm / 73.6 in (Z452KWTi-60)
• Without mower: 1235 mm / 48.6 in (Z452KWi-54); 1388 mm / 54.6 in (Z452KWTi-60)
• With mower: 433 kg / 954 lb
• Top of Open Station - folded position: 1265 mm / 49.8 in

Electrical

• Battery: U1 (12V, RC : 45min, CCA : 300, CA : 410)
• Generator: 15 A / 15 A

Tread

• Front: 1255 mm / 49.4 in
• Rear: 1000 mm / 39.4 in (Z452KWi-54); 1070 mm / 42.1 in (Z452KWTi-60)

Drive train/transmission

• Type: Hydro-Gear® Commercial ZT3600®
• System: 2-HST w/Gear reduction

Traveling speed

• System: 2-hand lever
• Forward: 16 km/h / 10 mph
• Reverse: 8 km/h / 5 mph

Mower decks

• Model: RCK54P-400Z (Z452KWi-54); RCK60P-400Z (Z452KWTi-60)
• Type: Side discharge
• Lift system: Mechanical / Foot pedal
• Mower deck depth: 127 mm / 5 in
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1372 mm / 54 in (Z452KWi-54); 1524 mm / 60 in (Z452KWTi-60)
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Parallel linkage
• Blade tip speed: 5699.76 m/min / 18700 fpm (Z452KWi-54); 5577.84 m/min / 18300 fpm (Z452KWTi-60)

Other

• Seat: Deluxe seat w/3 inch stroke suspension
• Hour meter: Standard

Fluid capacities

• Fuel tank capacity: 25.7 l / 6.8 gal

Chassis, axle and brakes

• Type: Cog style parking lock / Foot pedal

Tires

• Front: 13 × 6.5 – 6
• Rear: 24 × 9.5 –14 (Z452KWi-54); 24 × 12 –14 (Z452KWTi-60)
• Front: Semi-pneumatic
• Rear: Low profile tire
