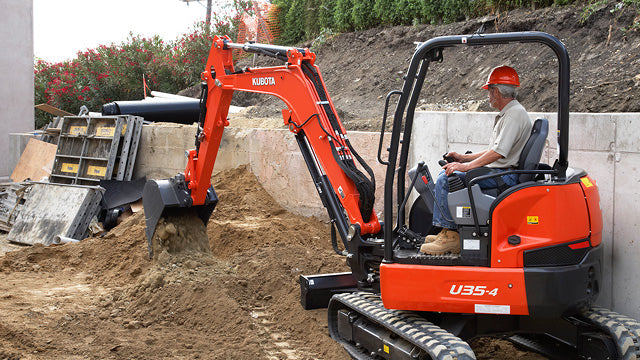

Kubota U35-4G Excavator

The Kubota U35-4G Tight Tail Swing Compact Excavator combines powerful digging performance, attachment versatility and exceptional operator comfort in a compact 3.5-tonne machine. Its tight tail swing design makes it ideal for working around buildings, landscaping projects, roadways and other confined jobsites.

Powered by a reliable Kubota D1703M-DI-E4 direct-injection diesel engine producing 24.8 gross horsepower, the U35-4G delivers smooth, efficient performance with a maximum digging depth of 9 feet 8.9 inches and a maximum dumping height of 11 feet 0.7 inches.

The Kubota U35-4G Excavator is available from Kooy Brothers Equipment Ltd., located at 1919 Wilson Avenue in Toronto, Ontario.

Contact Us for pricing, availability and additional information.

Features

• Tight tail swing design – The counterweight extends only 1.9 inches beyond the tracks, providing excellent manoeuvrability and helping protect the machine when working in confined areas.

• Spacious enclosed cab – A wide entrance, generous legroom, deluxe suspension seat, adjustable wrist rests, air conditioning and six strategically positioned vents provide all-season operator comfort.

• Kubota direct-injection diesel engine – The 24.8-horsepower Kubota engine delivers dependable digging and lifting performance while minimizing fuel consumption, noise and vibration.

• Digital control panel – Clearly displays engine speed, fuel level, coolant temperature, operating hours, service information and machine alerts.

• Adjustable auxiliary flow – Operators can program up to five AUX1 flow settings for different hydraulic attachments directly through the digital control panel.

• AUX1 diverter valve – Allows auxiliary oil to be redirected to another attachment without removing the hydraulic thumb piping.

• Third-line hydraulic return – Routes oil directly back to the hydraulic tank when operating one-way attachments, helping reduce back pressure and improve hydraulic efficiency.

• Proportional auxiliary control – A bi-directional rocker switch and full-flow button on the right control lever provide precise attachment control.

• Auto-idle system – Automatically lowers engine speed when the control levers remain in neutral for more than four seconds, reducing fuel use, noise and emissions.

• Two-speed travel with auto-shift – Automatically shifts between high and low travel speeds based on traction and terrain.

• Variable-displacement hydraulic pumps – Provide smooth, precise control of the boom, arm and bucket while delivering strong breakout performance.

• Optional hydraulic angle blade – Angles 25 degrees left or right for more efficient grading and backfilling, reducing the need to reposition the excavator.

• Blade float function – Helps simplify grading and finishing work by allowing the blade to follow the ground contour.

• Two-pattern selection system – Allows the operator to switch between ISO and SAE control patterns.

• Travel and swivel negative brakes – Automatically hold the tracks and upper structure in position to help prevent unintended movement.

Specifications

• Engine model: Kubota D1703M-DI-E4

• Engine type: Three-cylinder, liquid-cooled, direct-injection diesel

• Gross engine output: 24.8 HP (18.5 kW) at 2,200 RPM

• Net engine output: 23.9 HP (17.8 kW) at 2,200 RPM

• Engine displacement: 100.5 cu. in. (1,647 cc)

• Operating weight: Approximately 8,451–8,996 lb (3,833–4,080 kg), depending on blade and track configuration

• Maximum digging depth: 9 ft. 8.9 in. (2,970 mm)

• Maximum vertical digging depth: 6 ft. 7.3 in. (2,013 mm)

• Maximum digging height: 15 ft. 10.7 in. (4,844 mm)

• Maximum dumping height: 11 ft. 0.7 in. (3,370 mm)

• Maximum digging radius at ground: 16 ft. 11.3 in. (5,165 mm)

• Maximum digging radius: 17 ft. 3.6 in. (5,272 mm)

• Bucket breakout force: 7,924 lb (3,594 kgf)

• Arm breakout force: 4,451 lb (2,019 kgf)

• Maximum auxiliary hydraulic flow: 15.8 GPM (60 L/min)

• Travel speed: 1.9 mph low / 2.9 mph high (3.0/4.6 km/h)

• Maximum traction force: 6,091 lb (2,763 kgf)

• Swing speed: 8.9 RPM

• Boom swing: 71° left / 45° right

• Overall length: 15 ft. 7 in. (4,749 mm)

• Overall width: 5 ft. 6.9 in. (1,700 mm)

• Overall height: 8 ft. 1.2 in. (2,470 mm)

• Minimum ground clearance: 11.34 in. (288 mm)

• Crawler length: 6 ft. 10 in. (2,084 mm)

• Track width: 11.8 in. (300 mm)

• Fuel capacity: 12.4 US gal. (46.9 L)

• Hydraulic oil capacity: 11.8 US gal. reservoir / 16.1 US gal. system (44.6/61 L)
