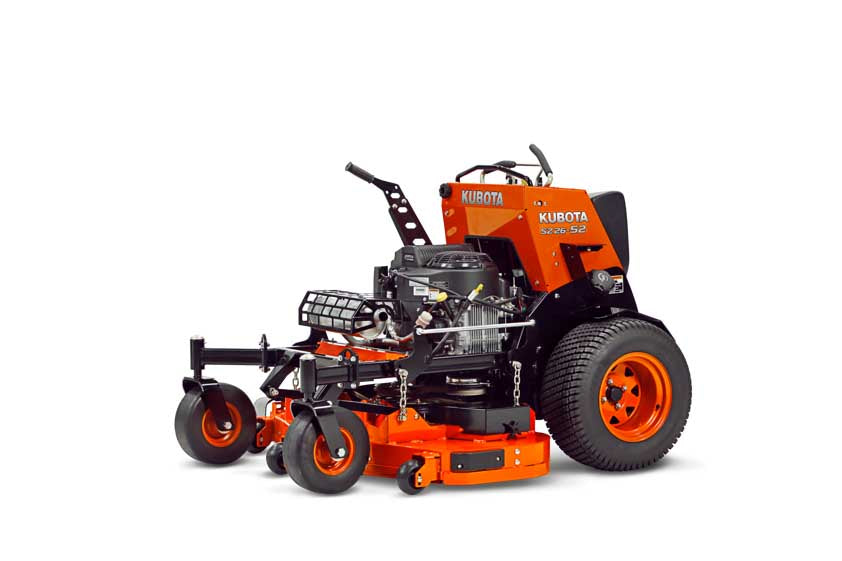

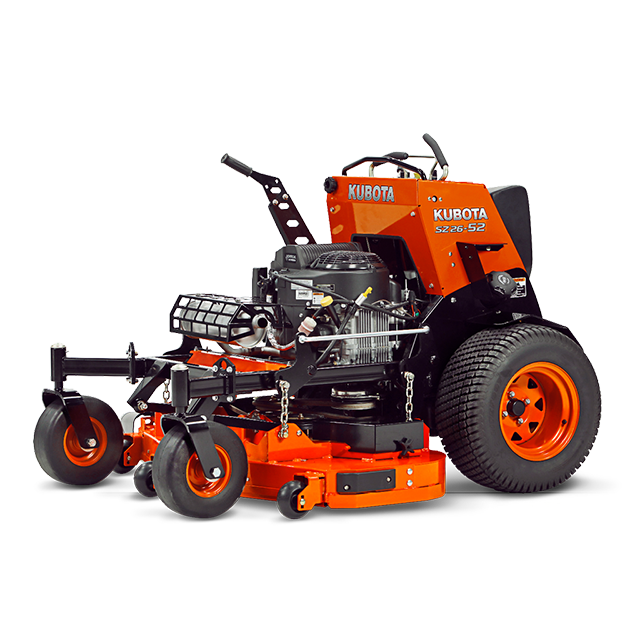

Kubota SZ26-2 Stand-On Zero-Turn Mower

Kubota SZ26-2 Stand-On Zero-Turn Mower is a commercial stand-on zero-turn mower offered with 52-inch and 61-inch decks. Complete engine, mower, dimensions and operating specifications are combined below, with any differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Mowing made Easy: Conveniently designed to make mowing a breeze. The operator platform easily folds away giving operators the option to either ride or walk behind while mowing.
• Power: Powered by commercial-grade Kawasaki engines, each Kubota SZ series stand-on mower is primed to deliver effective on the job capability.
• Durable DNA: The SZ series is built for tough commercial-grade mowing demands.
• Quick and nimble: Enjoy agility and speed in one package.
• Mow it your way: The SZ series come with an adjustable reference bat and dampers to give operators a personalized experience.
• Compact and convenient: Thanks to its small footprint, the SZ series is easy to trasnport, store and load on a trailer.

Specifications

Model

• Model name: SZ26-52-2 / SZ26-61-2

Engine

• Model: FT730V-EFI
• Type: Gasoline, Air-Cooled V-Twin
• Displacement: 726 cc / 44.3 cu. in.
• Manufacturer: Kawasaki
• Engine gross power: 19.388 kW / 26 HP

Dimensions and weight

• Ground clearance: 107.95 mm / 4.25 in
• Overall height: 1162.05 mm / 45.75 in
• Overall length: 1619.25 mm / 63.75 in
• Wheelbase: 1168.4 mm / 46 in
• Without mower: 1368.425 mm / 53.875 in
• With mower: 452.2 kg / 997 lb

Fuel system

• Fuel type: Gasoline

Tires

• Front: 13 x 5-6 (Flat-Free)
• Rear: 23 x 10.5-12

Drive train/transmission

• Type: Hydro-Gear ZT3600

Traveling speed

• Forward: 17.7 km/h / 11 mph
• Reverse: 6.4 km/h / 4 mph

Power take off (PTO)

• Clutch: Electric
• Drive system: Belt

Mower decks

• Mower deck depth: 120.65 mm / 4.75 in
• Cutting width: 1320.8 mm / 52 in (SZ26-52); 1550 mm / 61 in (SZ26-61-2)
• Number of blades: 3
• Cutting height: 114.3 mm / 4.5 in
• Mounting method: Parallel Linkage
• Blade tip speed: 5623.56 m/min / 18450 fpm (SZ26-52); 5654.04 m/min / 18550 fpm (SZ26-61-2)
• Adjustment of cutting height: Pin
