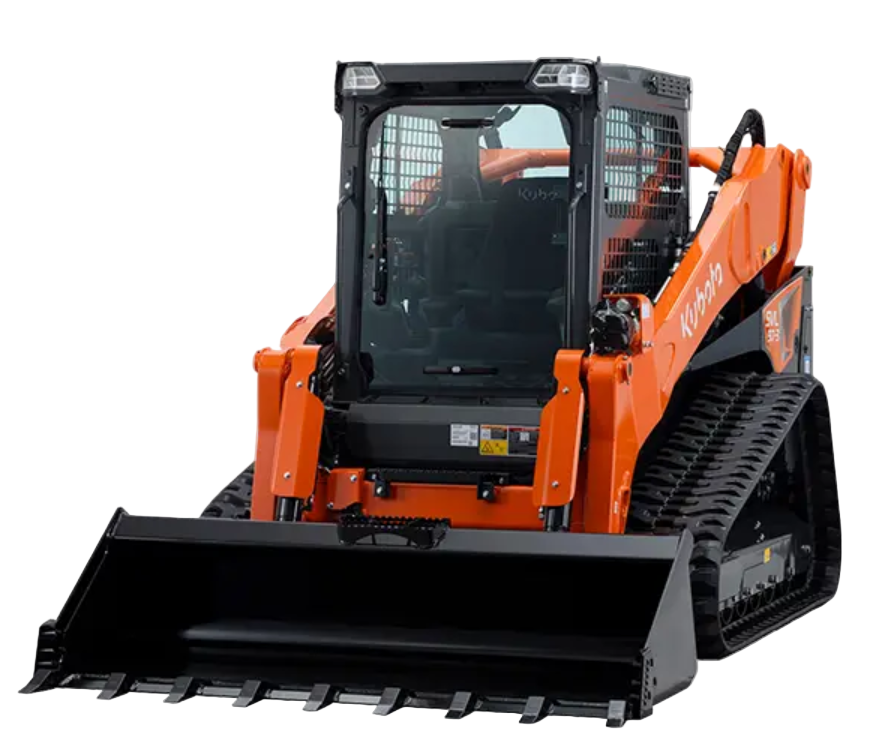

Kubota SVL97-3 Compact Track Loader

Overview

Introducing the Kubota SVL97-3 Compact Track Loader—built for smooth operation, enhanced comfort, and superior efficiency. Engineered for demanding job sites, this 96.4 HP machine features two-speed travel, a sealed pressurized cab, and a high-flow hydraulic system to tackle tough tasks with precision. The 7” LCD touchscreen, auto-shift travel, and Kubota Shockless Ride Control maximize productivity while keeping operators comfortable in all conditions.

Features

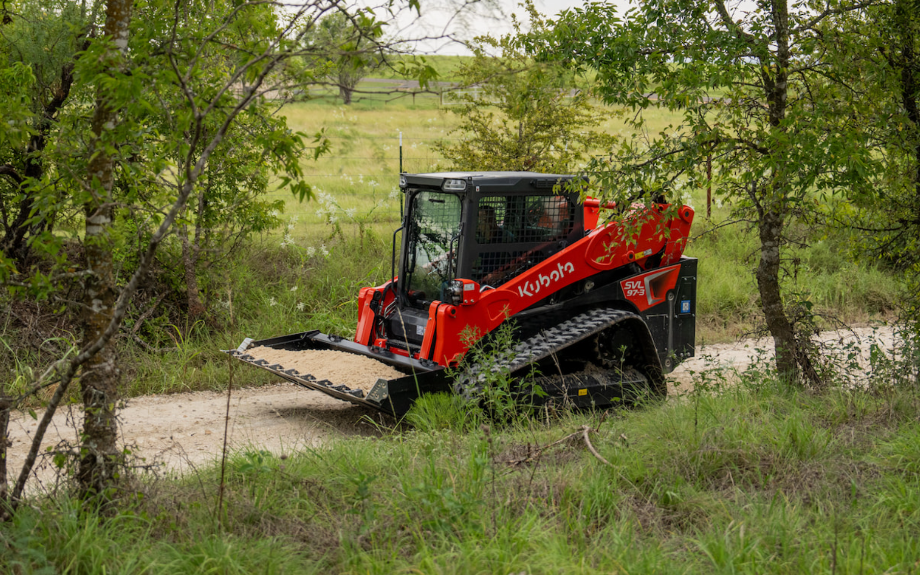

• Two-Speed Travel – Get the job done faster with low gear at 8.9 km/h (5.5 mph) and high gear at 13.5 km/h (8.4 mph) for optimized efficiency.

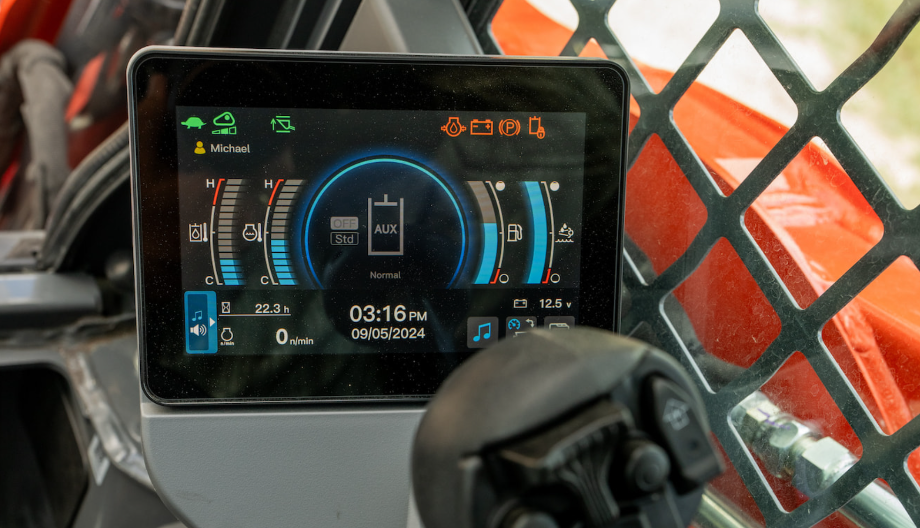

• Premium 7” LCD Monitor – A digital color touchscreen panel provides real-time machine diagnostics, hydraulic settings, and easy-to-read alerts, ensuring maximum operator control.
• Seamless Bluetooth Connectivity – Integrated Bluetooth radio allows for hands-free calls and seamless music streaming.

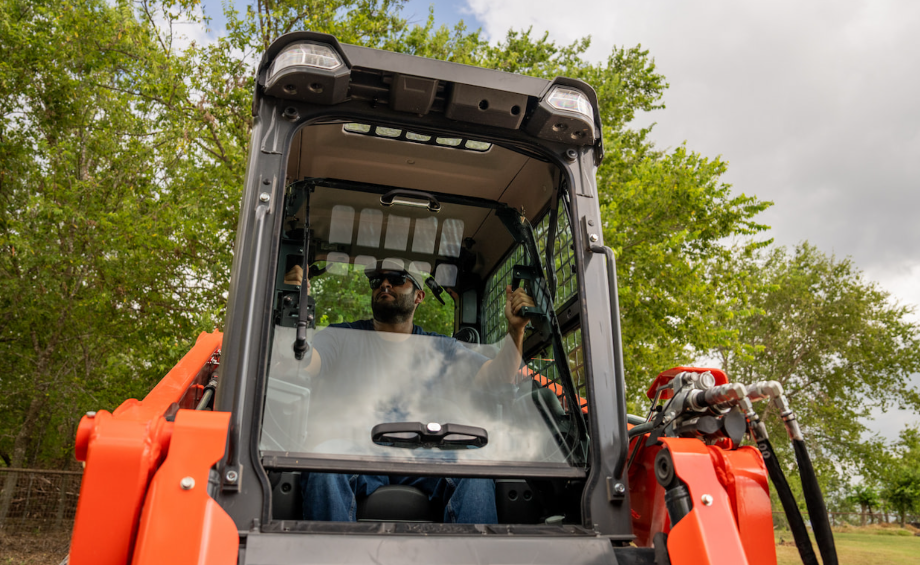

• Easy Entry Roll-Up Front Door – The sliding door design enables operators to enter and exit easily, no matter the attachment.

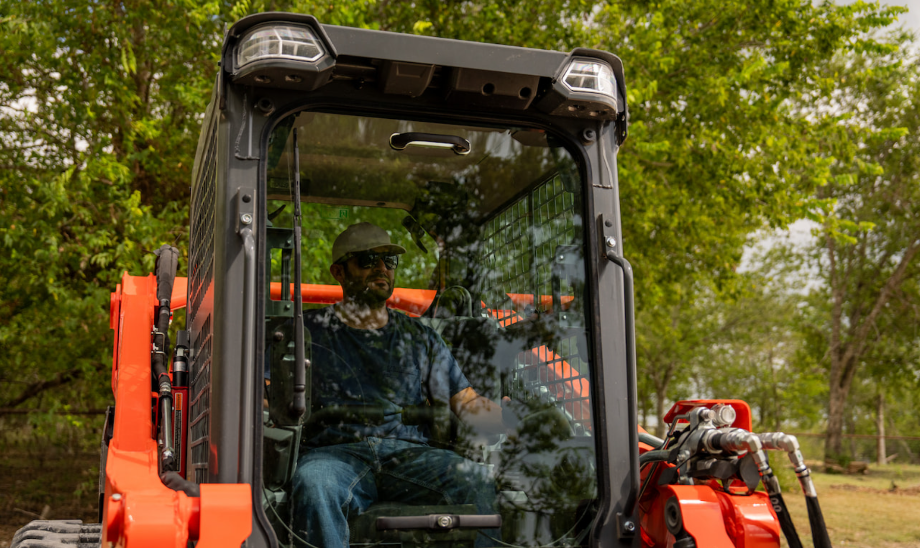

• Sealed & Pressurized Cab – Blocks out dust, dirt, and debris while reducing noise levels to 79 dBA, ensuring a quiet and comfortable working environment.

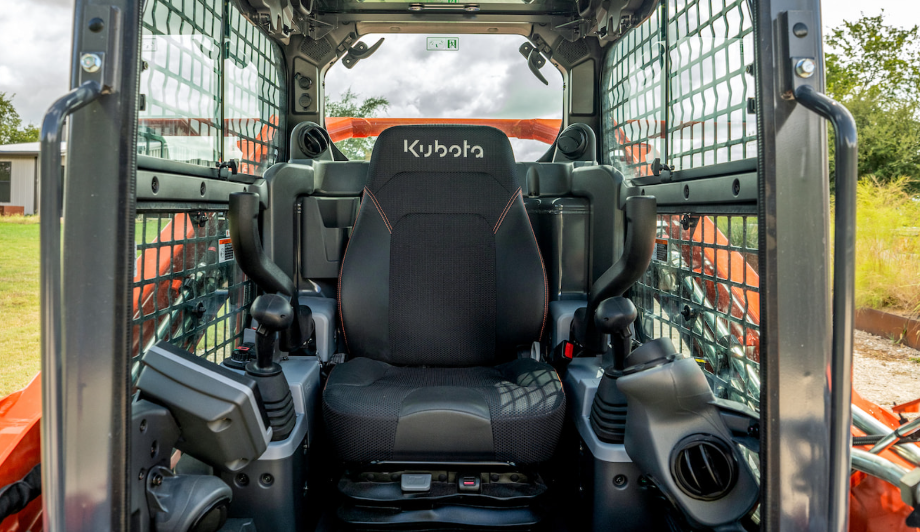

• New Heated Air Ride Seat – The high-back cloth air-ride seat with integrated heating offers superior cushioning, durability, and warmth for extended operator comfort.
• Kubota Shockless Ride Control – Minimizes material spillage and operator fatigue by cushioning heavy loads on rough terrain.

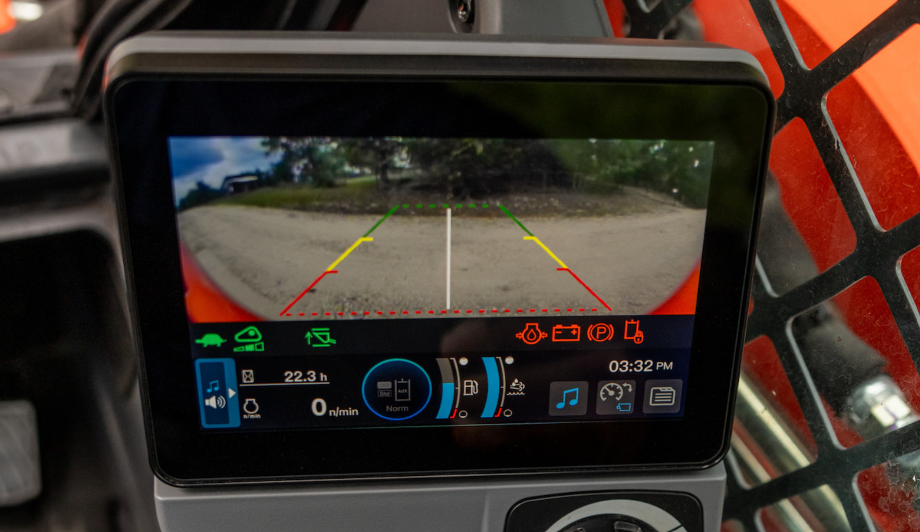

• Rear View Camera (Standard) – The factory-installed fish-eye camera feeds directly to the LCD screen, providing enhanced rear visibility for safer maneuvering.

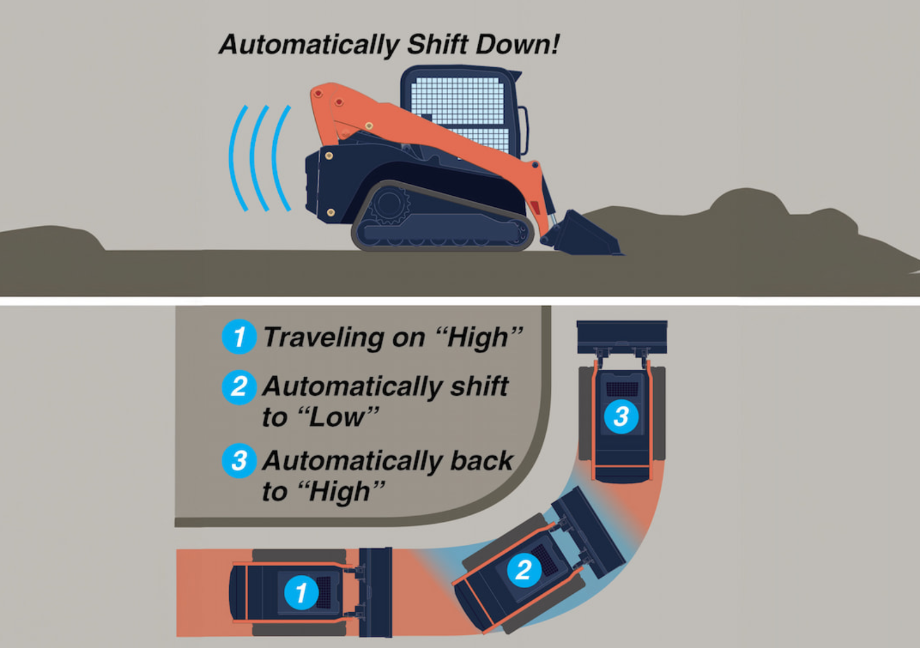

• Auto-Shift Travel – Automatically shifts between high and low speeds when turning or encountering resistance for improved traction and smoother operation.

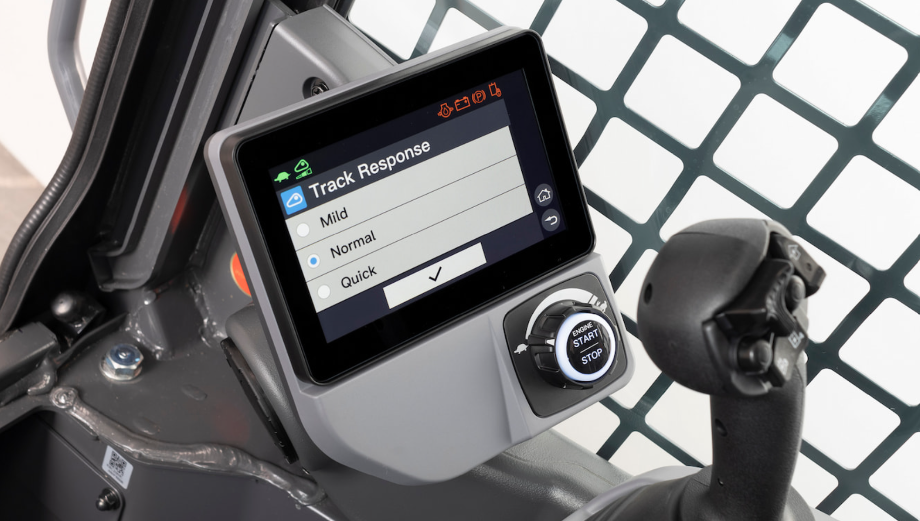

• Adjustable Track Response – Choose from three track response settings (Mild, Normal, Quick) via the LCD panel for optimized control.
• Engine Auto-Idle – Automatically reduces engine RPM after inactivity and revs up instantly when controls are engaged, improving fuel efficiency and reducing emissions.
• High-Flow Hydraulics with 14-Pin Connector – Provides 41.2 GPM auxiliary hydraulic flow, allowing for powerful attachment operation. The coupler manifold includes ½” and ¾” couplers, plus a 14-pin connector for multi-function attachments.
• Swing-Out Radiator for Easy Maintenance – Quick access to water/fuel separator, oil, air, and fuel filters for simplified servicing.
• New LED Work Lights with Delayed Auto Turn-Off – Programmable shut-off from 1 to 20 minutes after engine shutdown, ensuring a well-lit exit path.
• Decelerator Pedal – Standard foot throttle control allows operators to reduce RPM on demand, ideal for precision work like grading and pushing material.
• KubotaNOW Telematics – Monitor machine diagnostics, fuel levels, location tracking, and operational hours remotely via the KubotaNOW telematics system.

Specifications

Engine

• Model: Kubota 96.4 HP Diesel Engine
• Horsepower: 96.4 HP
• Auto Idle System: Yes

Performance & Operation

• Travel Speed (Low/High): 8.9 km/h (5.5 mph) / 13.5 km/h (8.4 mph)
• Track Response Settings: Mild, Normal, Quick
• Cycle Time Improvement: 20% faster
• Self-Leveling Loader: Standard

Lift & Load Capacity

• Hinge Pin Height: 128.5 in
• Rated Operating Capacity: 3,200 lbs
• Breakout Force: 7,961 lbs

Operator Comfort & Technology

• Cabin Type: Sealed & Pressurized
• Noise Reduction: 79 dBA
• Touchscreen Display: 7” LCD with job dial control
• Bluetooth & Radio Connectivity: Yes
• Seating: Heated air-ride cloth seat

Hydraulics & Attachments

• High-Flow Hydraulics: Yes
• Auxiliary Hydraulic Flow: 41.2 GPM
• Attachment Compatibility: Wide range, including buckets, forks, grapples, augers, and more

Safety & Visibility

• Rearview Camera: Standard
• LED Work Lights (Front & Rear): Standard
• Keyless Start: Yes, with passcode

Maintenance & Accessibility

• Swing-Out Radiator Door: Yes
• Easy Access Panels: Yes

Visit Kooy Brothers Equipment Ltd. to purchase your Kubota SVL97-3 Compact Track Loader today and experience next-level performance for demanding applications. Located at 1919 Wilson Avenue, Toronto, Ontario.
