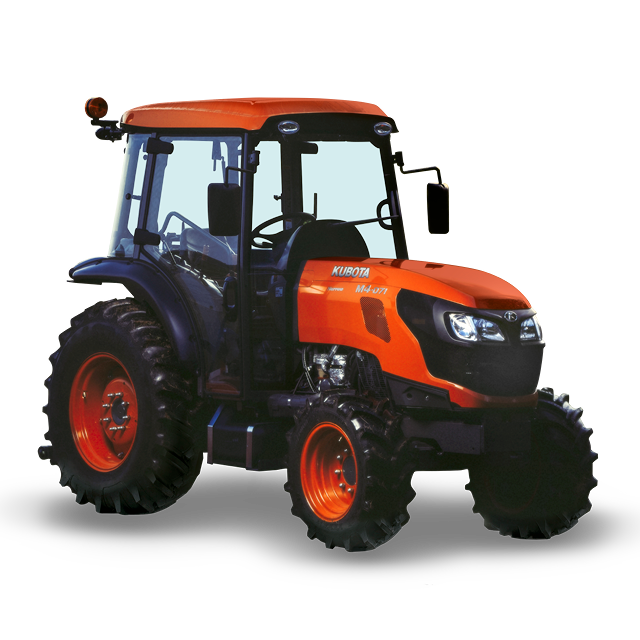

Kubota M4N-071 Cab Specialty Tractor
By Kubota
SKU: M4N-071HDCC12
In-store purchase only
This item can't be shipped. Request a quote and our team will get back to you shortly.
Request a QuoteThe Kubota M4N-071HDCC12 is a 72.6 gross HP narrow cab tractor engineered for vineyards, orchards and other tight-row applications. A 48-inch minimum width, Bi-Speed turning, 12F/12R electro-hydraulic shuttle and 16.7 gpm hydraulic flow combine maneuverability with full M-Series capability.
Features

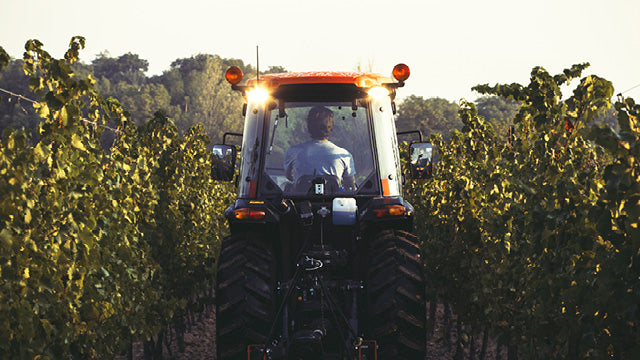

- Narrow working profile: A 48-inch minimum overall width helps the tractor work efficiently between vines, trees and confined rows.

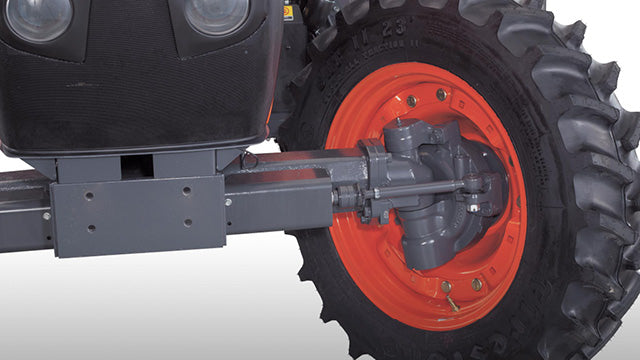

- Bevel-gear axle with Bi-Speed turning: Sealed front axle components and accelerated front-wheel rotation help produce a tight turning path.

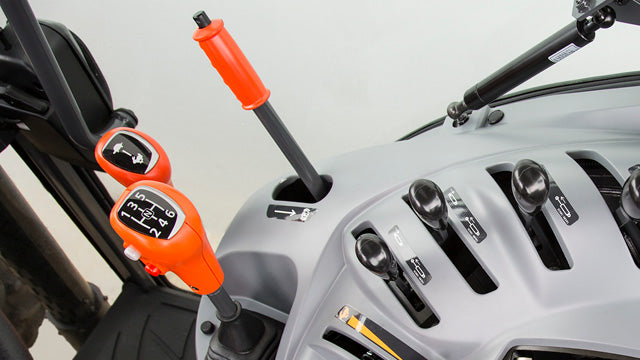

- 12F/12R transmission: Six speeds in two ranges, electro-hydraulic shuttle and optional creeper provide flexibility from low-speed field work to transport.
- Improved hydraulics: 16.7 gpm flow and two standard flow-controlled rear remotes, with capacity for up to five remotes.

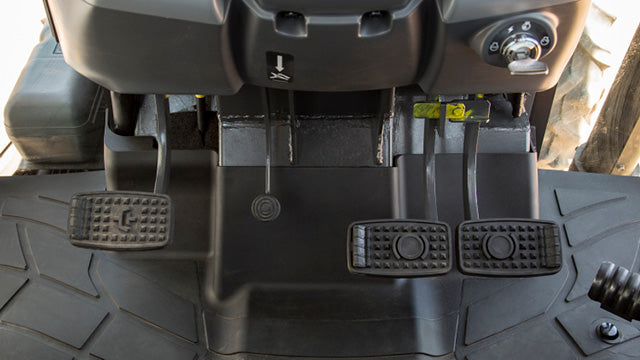

- Updated cab: Right-side control layout, additional steering-wheel tilt, dual mirrors and a flat floor support operator comfort and efficiency.
- Tier 4 Kubota diesel engine: Common-rail fuel delivery, turbocharging, intercooling and diesel particulate filtration support strong, efficient performance.
- Work cruise: Constant RPM management helps keep engine speed steady as loads change.
Specifications
| Model | M4N-071HDCC12, cab |
|---|---|
| Infinity SKU | M4N-071HDCC12 |
| Engine | Kubota V3800-TIEF4, direct-injection, water-cooled four-cycle common-rail diesel |
| Aspiration / emissions equipment | Turbocharged and intercooled with diesel particulate filter |
| Cylinders | 4 |
| Rated engine speed | 2,400 rpm |
| Engine gross horsepower | 72.6 HP (54.1 kW) |
| PTO horsepower | 61 HP (45.5 kW) |
| Fuel tank | 20.1 gal (76 L) |
| Alternator | 130 A |
| Transmission | 6 speeds × 2 ranges; 12 forward / 12 reverse |
| Shuttle | Electro-hydraulic |
| Optional creeper | 18 forward / 18 reverse speeds |
| Drive | 4WD with electronic engagement and Bi-Speed turning |
| PTO | Electro-hydraulic 540 / 540E rpm |
| 3-point hitch | Category II with position and draft control |
| 3-point lift capacity | 3,307 lb (1,500 kg) at 24 in. behind lift point |
| Hydraulic pump capacity | 16.7 gpm (63.3 L/min) |
| Remote valves | 2 with flow control standard; maximum 5 |
| Overall width | 48 in. (1,220 mm) at minimum tread |
| Overall height | 90.2 in. (2,290 mm) |
| Ground clearance | 12.2 in. (310 mm) |
| Weight | 5,291 lb (2,400 kg) |
| Standard tires | Front 8-16; rear 12.4-24 |
| Fuel type | Diesel |
| Operator platform | Cab with flat deck |
