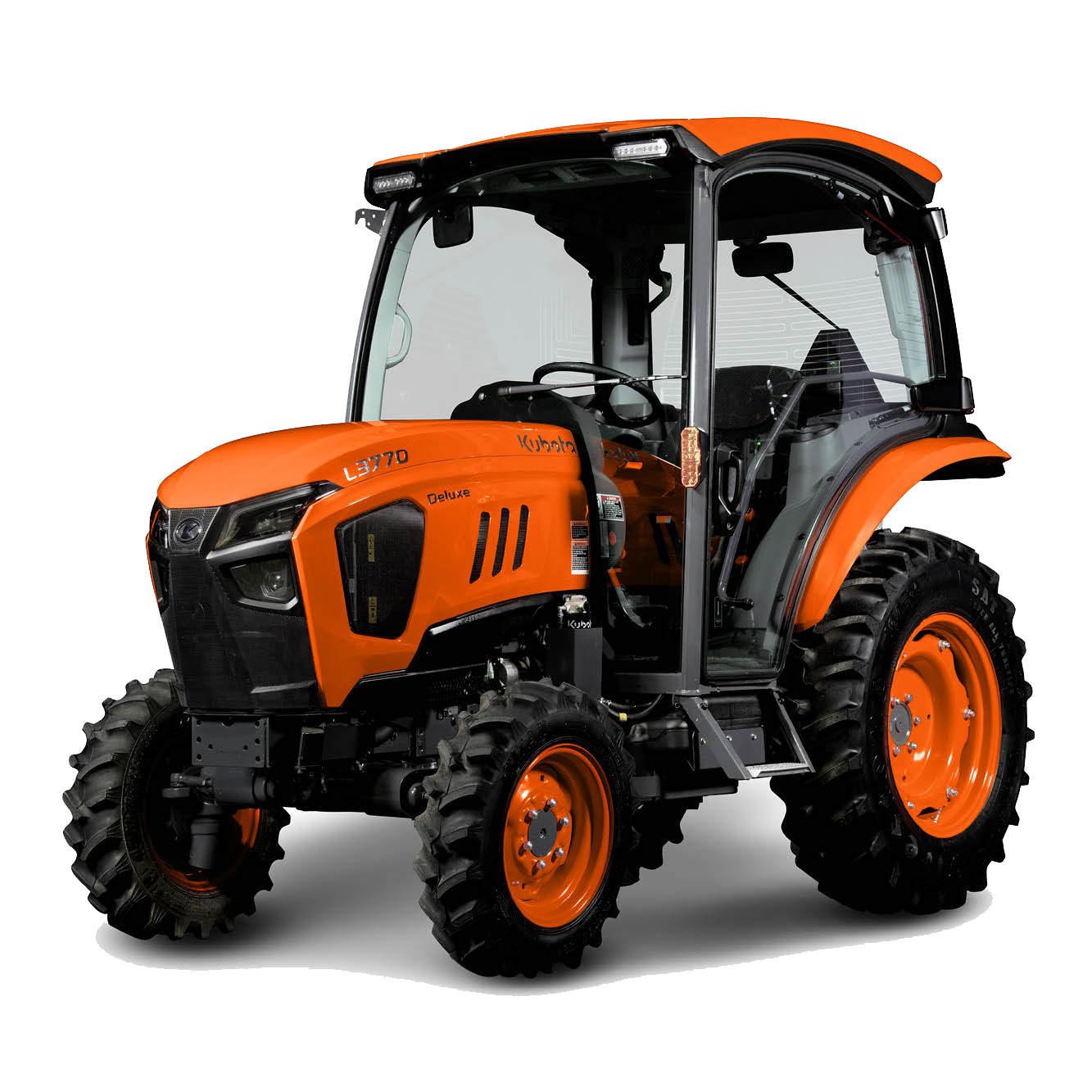

Kubota L4270 ProCab Compact Tractor
By Kubota
SKU: L4270DLXCC
In-store purchase only
This item can't be shipped. Request a quote and our team will get back to you shortly.

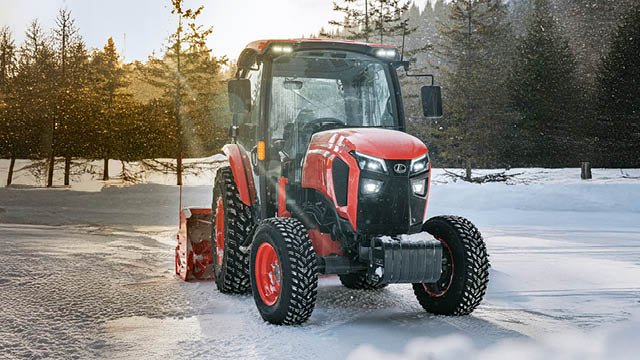

Request a QuoteThe Kubota L4270 ProCab is a 42 HP deluxe compact tractor built for demanding property maintenance, snow removal and material handling. Its intelligent three-range hydrostatic transmission, spacious climate-controlled cab and strong hydraulic system give operators precise control and all-day comfort.
Features

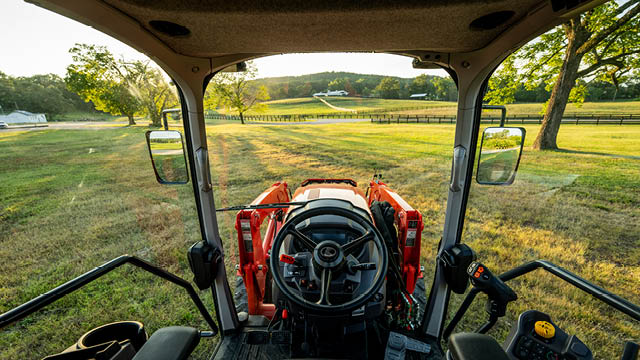

- Comfortable ProCab: Four-post cab design with expansive glass, optimized HVAC airflow, defrosters and front and rear LED work lighting.

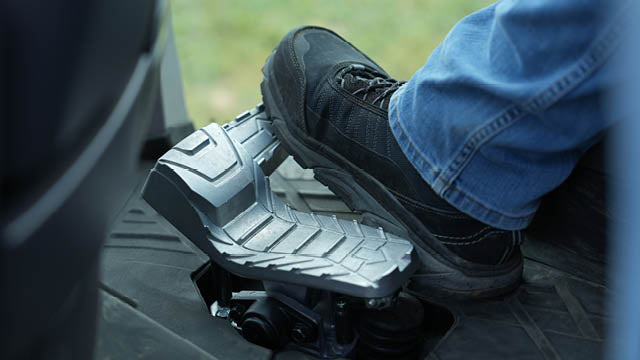

- Intelligent hydrostatic transmission: Three-range iHST with adjustable pedal response and task-focused drive settings for smooth, customizable operation.

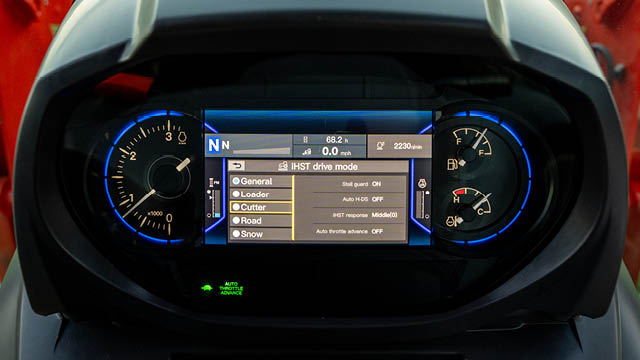

- K-Command colour display: Central access to tractor settings, integrated radio, Bluetooth connectivity and hands-free phone controls.
- Kubota diesel power: Naturally aspirated four-cylinder common-rail diesel engine engineered for dependable, efficient performance.

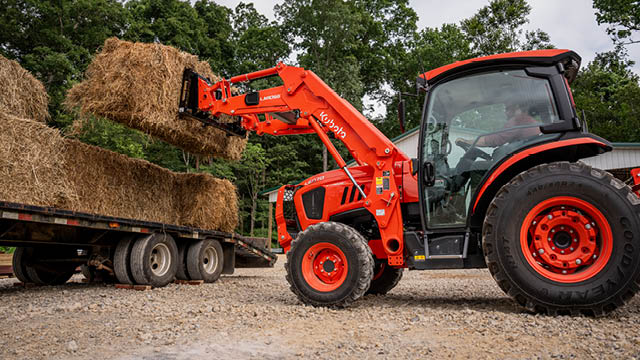

- Performance-matched loader capability: Compatible with the LA806 loader and available mechanical self-leveling for controlled material handling.
Specifications
| Model | L4270 ProCab (Deluxe) |
|---|---|
| Infinity SKU | L4270DLXCC |
| Engine | Kubota V2403-CR-E5, direct-injection, water-cooled four-cycle diesel with common-rail fuel system |
| Cylinders / displacement | 4 / 148.5 cu. in. (2.434 L) |
| Bore and stroke | 3.4 × 4.0 in. (87 × 102.4 mm) |
| Rated engine speed | 2,600 rpm |
| Engine gross horsepower | 42 HP (31.3 kW) |
| PTO horsepower | 32.5 HP (24.2 kW) |
| Maximum torque | 98.5 lbf-ft (133.5 N·m) |
| Transmission | Intelligent hydrostatic transmission, 3 ranges |
| Drive / steering | 4WD / hydrostatic power steering |
| Brakes | Wet disc |
| Maximum forward speed | 17.7 mph (28.5 km/h) |
| Rear PTO | SAE 1-3/8 in., 6-spline; 540 rpm at 2,491 engine rpm |
| 3-point hitch | SAE Category I |
| Hydraulic pump capacity | 9.4 gpm (35.6 L/min) |
| 3-point lift capacity | 3,858 lb (1,750 kg) at lift points; 2,756 lb (1,250 kg) at 24 in. behind |
| Rear remotes | 1 factory rear remote; supports up to 3 |
| Overall length | 123.6 in. (3,140 mm) without 3-point hitch |
| Overall width | 66.5 in. (1,690 mm) at minimum tread |
| Overall height | 91.9 in. (2,335 mm) to top of cab |
| Wheelbase | 74.6 in. (1,895 mm) |
| Ground clearance | 13.5 in. (342 mm) |
| Turning radius | 8.9 ft (2.7 m) with brake |
| Weight | 4,288 lb (1,945 kg), cab |
| Standard tires | Front 8.3-16; rear 14.9-24 |
| Battery | 12 V, reserve capacity 133 min, 582 CCA |
| Operator station | ProCab |
Specifications are based on current Kubota Canada information and may change without notice. Contact Kooy Bros to confirm configuration and availability.
