Kubota BX2690S Premium Tractor Loader Backhoe

Kubota BX2690S Premium Tractor Loader Backhoe combines 23.9 HP Premium BX tractor technology with the LA405 loader and BT604 backhoe for demanding property and landscape projects.

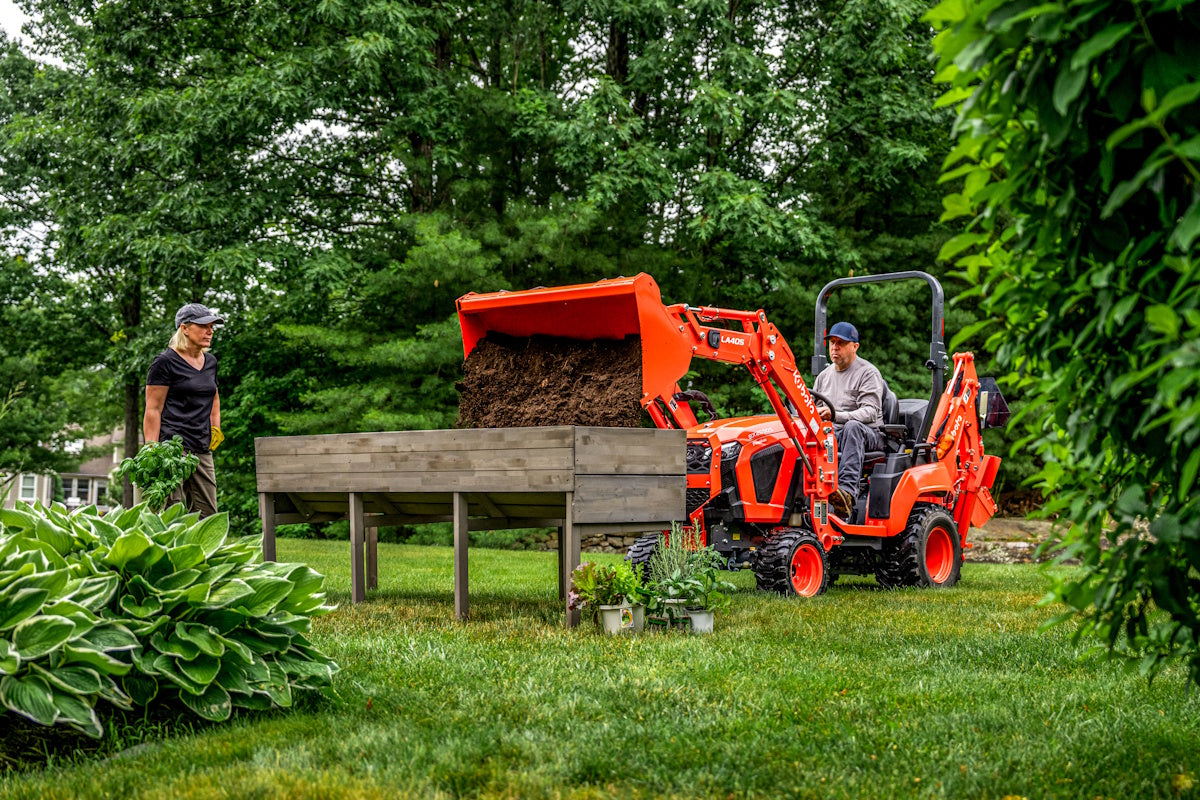

The BX2690S Premium provides a compact three-in-one work platform for digging, loading and year-round property maintenance. With the BT604 backhoe for excavating and the LA405 loader for material movement, it can tackle drainage trenches, landscape renovation, moving fill and grading support while retaining the compact dimensions of a sub-compact tractor.

Premium equipment includes an electronically controlled diesel engine, full-colour LCD display, programmable engine-speed settings and loader-joystick throttle-up. The throttle-up function allows the operator to call on a preset engine speed when hydraulic response is needed. A dedicated flip-up backhoe seat, generous work platform and stabilizer-lock system are designed to make digging work more comfortable and efficient.

Kubota lists 29 L/min (7.7 US gpm) total hydraulic pump output for this model. The LA405 provides a published 904 lb loader lift rating at the specified pivot-pin measurement, while the BT604 rear backhoe adds digging and material-handling capability. Ask Kooy Brothers about the right approved bucket and attachment setup for your property.

Features

• BT604 backhoe: Integrated rear excavation capability for trenches, planting and site work
• Dedicated backhoe seat: Flip-up seat with improved foot room for the digging station
• Stabilizer lock: Designed to help streamline setup and travel transitions
• LA405 front loader: Published 904 lb loader lift rating at 1.5 m pivot height
• 23.9 gross HP electronically controlled diesel: Kubota D902-K engine with modern engine management
• Full-colour LCD instrument cluster: Readable operating data and programmable performance settings

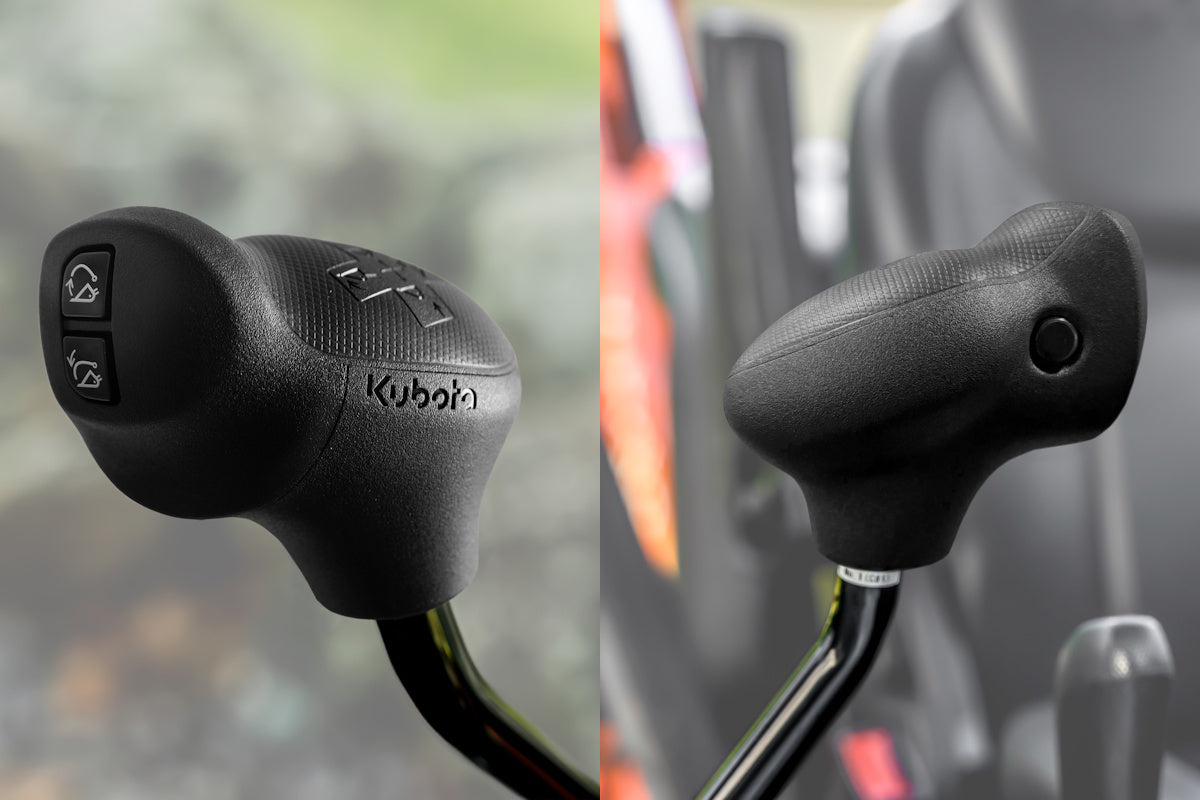

• Joystick throttle-up: Engine-speed response when operating the loader
• Two-range HST and 4WD: Controlled travel and traction for varied ground surfaces
• 7.7 US gpm total pump output: Hydraulic capability supporting loader and tractor systems
• USB functionality: Operator-convenience connectivity in the Premium configuration

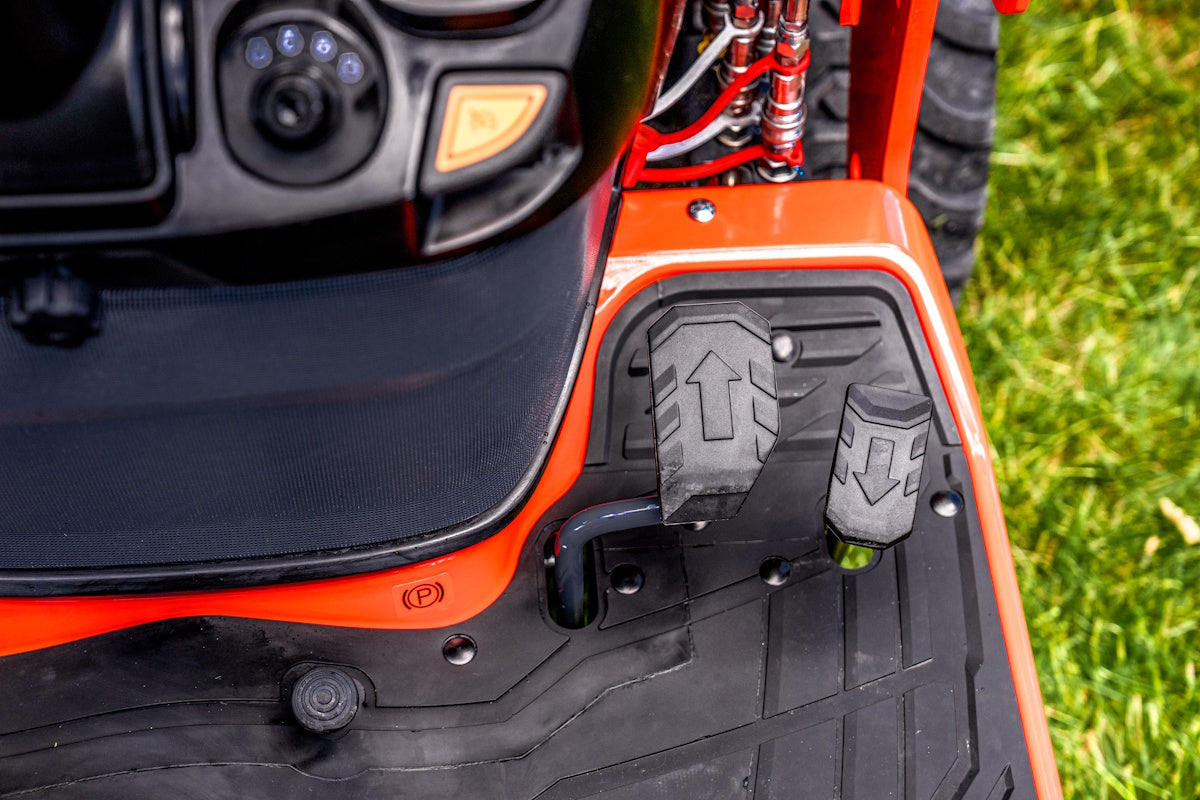

• Side-by-side drive pedals: Comfortable forward and reverse transitions
• Performance-matched equipment: Attachment possibilities for the tractor-loader-backhoe platform

Specifications

• Model: BX2690S
• Configuration: Premium tractor loader backhoe
• Engine: Kubota D902-K three-cylinder diesel
• Engine management: Electronically controlled indirect injection
• Gross engine power: 23.9 HP (17.8 kW) at 3,600 rpm
• PTO output: 18.7 HP (13.9 kW)
• Displacement: 898 cc
• Fuel tank: 25 L
• Transmission: Two-range hydrostatic HST
• Drivetrain: 4WD
• Total pump output: 29 L/min (7.7 US gpm)
• Front loader: LA405
• Loader lift rating: 904 lb at 1.5 m bucket pivot height
• Backhoe: BT604
• Backhoe seat: Dedicated flip-up
• Hitch: Category I available as optional equipment
• Operator display: Full-colour LCD
