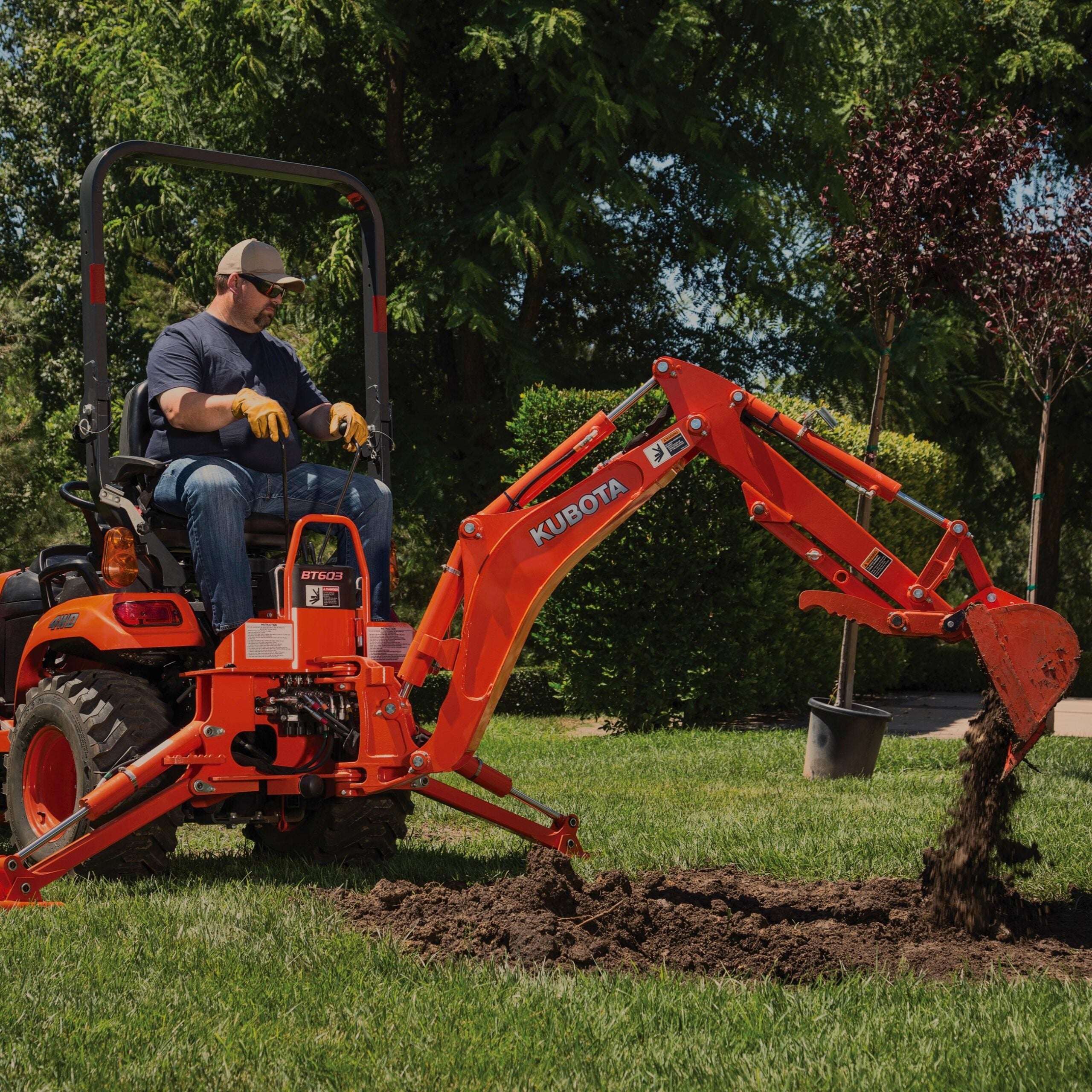

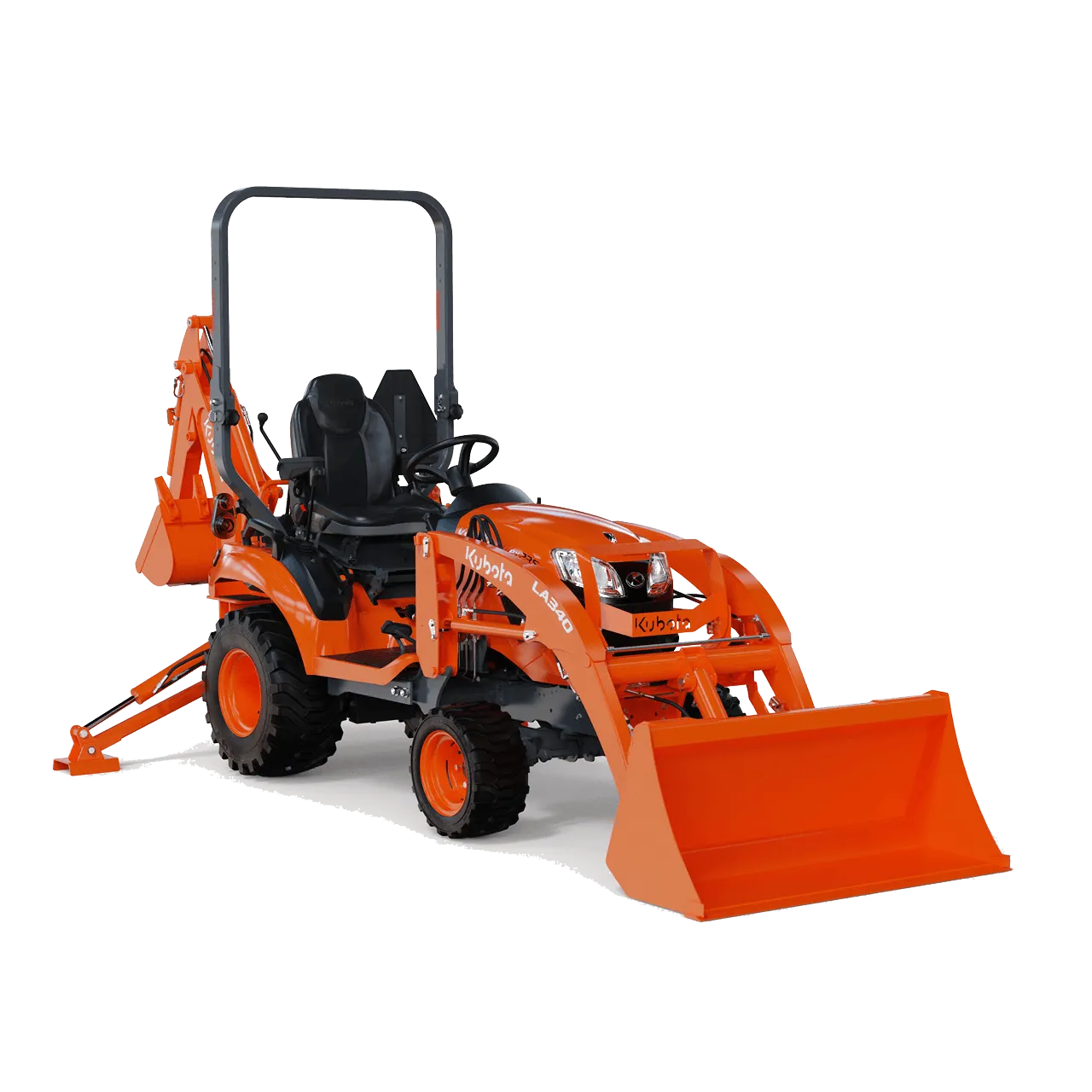

Kubota BX23S With Loader and Backhoe

Kubota BX23S With Loader and Backhoe is a tractor-loader-backhoe designed to combine loader work, excavation and three-point implement capability in one machine. Kubota lists engine gross power at 16.1 kW / 21.6 HP, PTO power at 13.2 kW / 17.7 HP, and transmission at HST, High-Low gear shift (2 forward / reverse). The compact footprint provides easy operation and maneuverability in tight spaces while remaining gentle on finished turf.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Kubota diesel engine: Kubota diesel engines are known worldwide for their exceptional power and durability.
• Year-round versatility: A true jack-of-all-trades, the BX23S is engineered to take on any job, any time.
• Compact and mighty: The compact footprint provides easy operation and maneuverability in tight spaces while remaining gentle on finished turf.
• All-day comfort: Experience superior comfort and efficiency with the BX23S’s deluxe high-back seat.
• Time-saving K-Connect for front implements: The K-Connect four-point hitch couples compatible front implements and their PTO connection from a single lever.
• Intuitive operation: An intuitive interface for smooth, safe, and efficient tractor operation.
• Exceptional ground clearance: The BX Series provides plenty of ground clearance, 7.6 inches for the BX1880, 8.4 inches for BX2380/ BX2680/BX23S, to get the operator over rocks and other objects in the operator's path.
• Telematics - Optional: Now available with KubotaNOW Telematics.

Specifications

Model

• Model name: BX23S

Engine

• Model: Kubota D902
• Type: Liquid-cooled, 3-cylinder diesel
• Cooling system: Liquid-cooled
• Cylinders: 3
• Rated engine speed: 3200 rpm / 3200 rpm
• Engine gross horsepower @ rpm: 16.1 kW / 21.6 HP
• PTO @ rpm: 13.2 kW / 17.7 HP
• Displacement: 898 cc / 54.8 cu. in.
• Fuel tank capacity: 25 l / 6.6 gal

Power take off (PTO)

• Mid-PTO: Standard
• Rear PTO: Standard
• Type: Live independent PTO (with hydraulic clutch)
• PTO/engine speed: 540 rpm / 540 rpm
• Rated engine speed: 2500 rpm / 2500 rpm

Drive train/transmission

• Transmission type: HST, High-Low gear shift (2 forward / reverse)
• Brake type: Wet disc
• Drive method: 4WD

Hydraulic system

• 3-Point hitch: Optional
• 24" behind lift point: 310 kg / 680 lb
• Total pump output: 23.5 l/min / 6.2 gpm
• Steering type: Hydrostatic Power Steering

Dimensions and weight

• Ground clearance: 193 mm / 7.6 in
• Overall width: 1145 mm / 45.1 in
• Wheelbase: 1400 mm / 55.1 in
• Top of Open Station: 2190 mm / 86.2 in
• With 3 Pt hitch: 4541.52 mm / 178.8 in
• Front: 930 mm / 36.6 in
• Rear: 820 mm / 32.2 in
• Without brake: 2.3 m / 7.5 ft
• Open Station: 1220 kg / 2689 lb

Fuel system

• Fuel type: Diesel

Tires

• Front: N.A.
• Rear: N.A.
• Front: 18×8.5–10
• Rear: 26×12–12
• Front: 18×8.5–10
• Rear: 26×12–12

Traveling speed

• Forward: 13.5 km/h / 8.4 mph
• Reverse: 10.5 km/h / 6.5 mph
