Kubota BX2390S Tractor Loader Backhoe

Kubota BX2390S Tractor Loader Backhoe is a 21.6 HP sub-compact tractor-loader-backhoe built to cover digging, lifting, grading and property-maintenance jobs with one versatile machine.

The BX2390S pairs Kubota's compact BX tractor platform with the LA355 front loader and BT604 backhoe, giving acreage owners and landscape contractors a productive combination for drainage trenches, planting, utility preparation, moving soil and maintaining property. A dedicated backhoe seat and improved operator platform make switching from tractor operation to excavation simpler.

The backhoe configuration includes a flip-up operator seat, a more generous foot platform and a stabilizer lock/unlock system that reduces the effort of moving between tasks. The BT604 backhoe gives owners a digging tool with a compact footprint, while the front loader is useful for moving spoil, aggregate, mulch and other materials around the property.

A 4WD drivetrain, side-by-side hydrostatic pedals and ergonomic controls make the BX2390S approachable for frequent use. Kubota's matched equipment ecosystem provides options for seasonal property care, subject to the installed loader, backhoe, mower and hitch setup.

Features

• Dedicated backhoe operator seat: Flip-up seat designed for use at the rear digging station

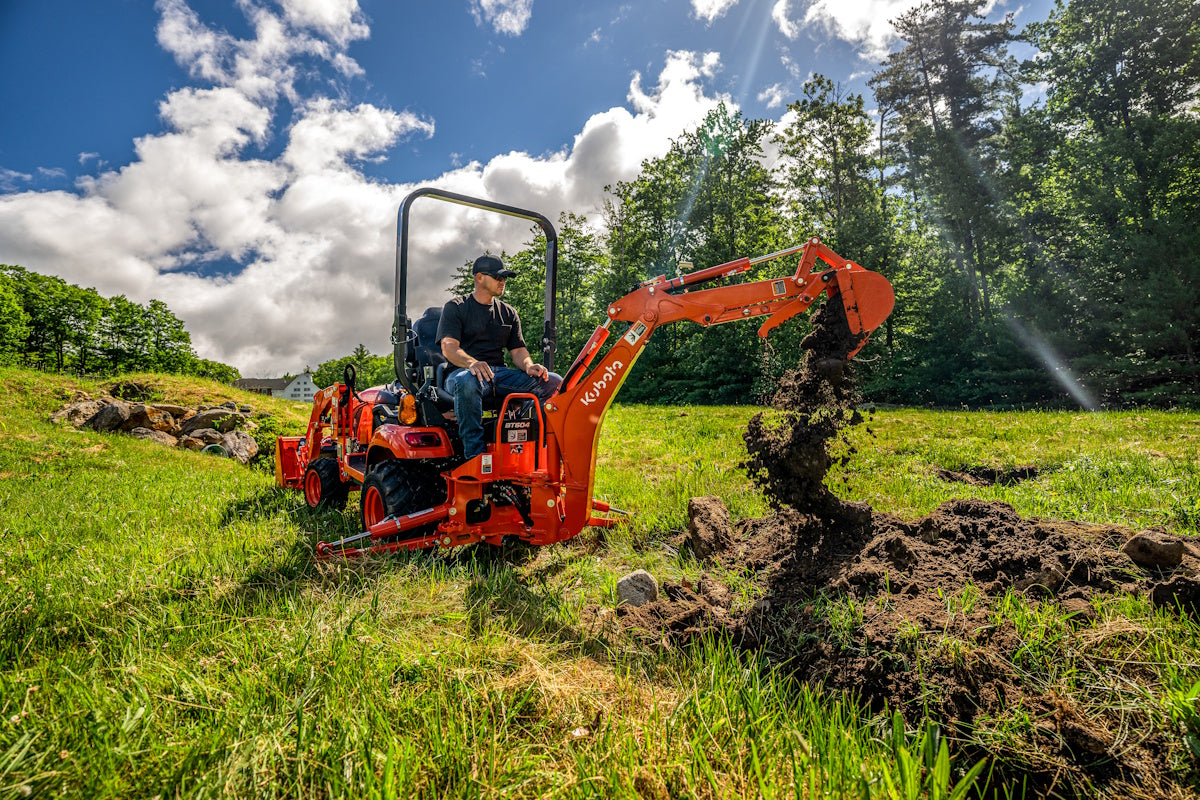

• BT604 backhoe: Compact digging attachment for trenching, planting and site preparation
• Improved foot platform: More working room around the backhoe controls
• Stabilizer lock/unlock: Simplifies positioning and securing the backhoe stabilizers
• LA355 loader: Front-end material handling with published 721 lb lift capacity at 1.5 m pivot height
• 21.6 gross HP diesel: Kubota three-cylinder power for varied seasonal tasks
• Standard 4WD: Added traction on property terrain and prepared job surfaces

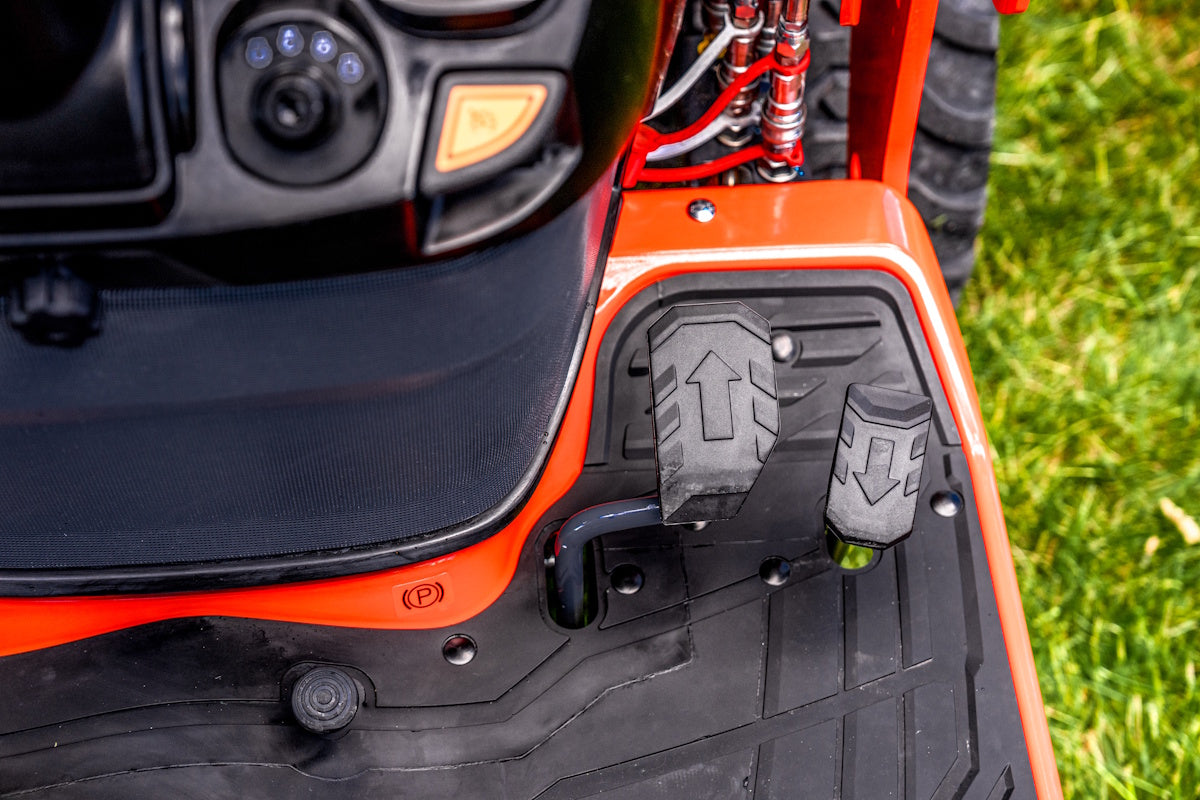

• Side-by-side HST pedals: Intuitive separate forward and reverse controls
• Two-range hydrostatic transmission: High/Low selection supports travel and controlled loader work
• Compact tractor format: Useful for residential access, landscaping and acreage care
• Kubota-compatible accessories: Discuss bucket, blade and seasonal attachment fitment with Kooy Brothers

Specifications

• Model: BX2390S
• Configuration: Standard tractor loader backhoe
• Engine output: 21.6 gross HP
• Engine: Kubota liquid-cooled three-cylinder diesel
• Transmission: Two-range hydrostatic HST
• Drivetrain: 4WD
• Loader: Kubota LA355
• Loader lift rating: 721 lb at 1.5 m bucket pivot height
• Backhoe: Kubota BT604
• Backhoe seat: Dedicated flip-up
• Backhoe stabilizers: Lock/unlock system
• Forward/reverse: Side-by-side HST pedals
• Mid-mount deck options: 54- and 60-inch configurations; attachment combination dependent
