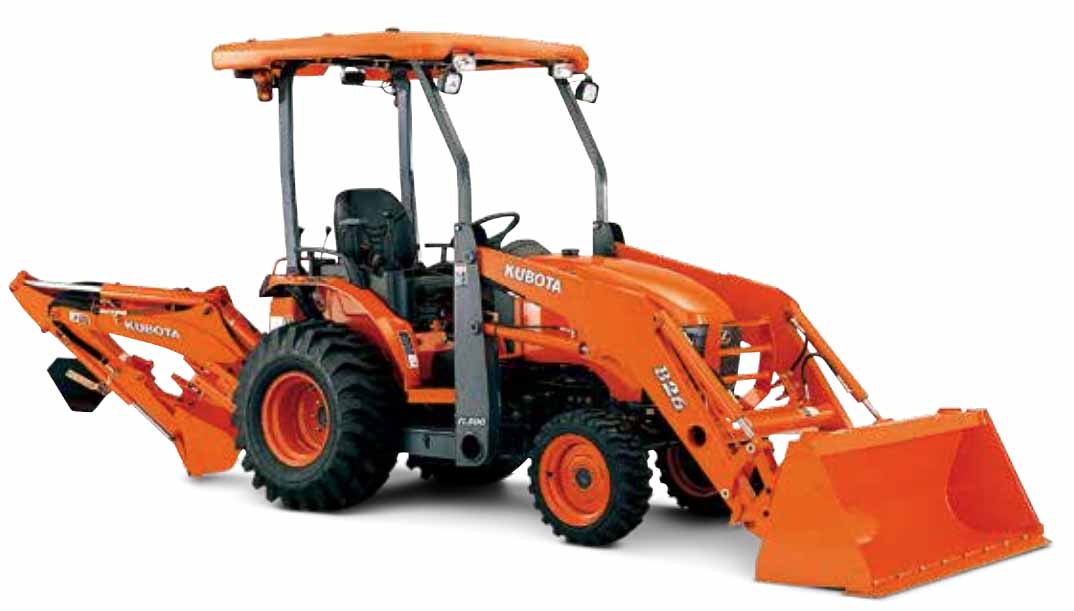

Kubota B26 Tractor Loader Backhoe

Kubota B26 Tractor Loader Backhoe is a tractor-loader-backhoe designed to combine loader work, excavation and three-point implement capability in one machine. Kubota lists engine gross power at 17.4 kW / 23.3 HP, PTO power at 14.5 kW / 19.4 HP, and transmission at HST (3 range). Kubota’s 2-lever quick coupler lets the operator quickly and easily attach and detach front implements.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Mechanical 2-lever quick coupler: Kubota’s 2-lever quick coupler lets the operator quickly and easily attach and detach front implements.
• Category I 3-point hitch (optional): Do even more by attaching any of a wide array of rear-mounted implements to the Category I 3-point hitch.
• Flip-over stabilizer pad: Switch from road-use side to steel anchor by simply rotating the unit by hand.
• Independent PTO: Get even more work done by attaching a wide range of PTO-driven implements, including rotary tillers, post hole diggers, snow blowers and rear-mounted mowers.
• Transporting this workhorse is easy: Even with both loader and backhoe attached, the compact B26 can be loaded on a 10,000-lb.

Specifications

Model

• Model name: B26TLB

Engine

• Air pre-cleaner: Single element
• Cylinders: 3
• Rated engine speed: 2800 rpm / 2800 rpm
• Engine gross horsepower @ rpm: 17.37 kW / 23.3 HP
• PTO horsepower: 14.47 kW / 19.4 HP
• Displacement: 1123 cc / 68.5 cu. in.
• Emission certification: EPA Final Tier 4
• Fuel tank capacity: 31 l / 8.2 gal

Power take off (PTO)

• Type: Independent
• PTO/engine speed: 540 rpm / 540 rpm

Drive train/transmission

• Max. traveling speed: 17.8 km/h / 11.1 mph
• Range gear shift: Seat side, left
• Speed: Infinite
• Transmission type: HST (3 range)
• Brake type: Wet disc
• Differential lock - Rear axle: Standard

Hydraulic system

• 3-Point hitch: Optional
• Position control: Standard
• Pump capacity: 42 l/min / 11.1 gpm
• 24" behind lift point: 760 kg / 1676 lb
• Steering type: Hydrostatic

Dimensions and weight

• Wheelbase: 1581 mm / 62.2 in
• Front: 23 × 8.5–14 R4
• Rear: 12.4–16 R4
• Front: 905 mm / 35.6 in
• Rear: 1050 mm / 41.3 in
• Without brake: 2.5 m / 8.2 ft
• Power unit + 2 implements: 1815 kg / 4001 lb

Safety equipment

• Back up alarm: Optional
• FOPS: Standard
• Open Station: 4 post

Other

• Deck type: Full-floating ISO-mounted flat deck
• Loader-integrated reinforced frame: Standard
• Glow plug: Super glow
• Reversible seat: Standard
• Hard nose slanted hood: Standard
• Horn: Optional
• Tilt steering wheel: Standard
