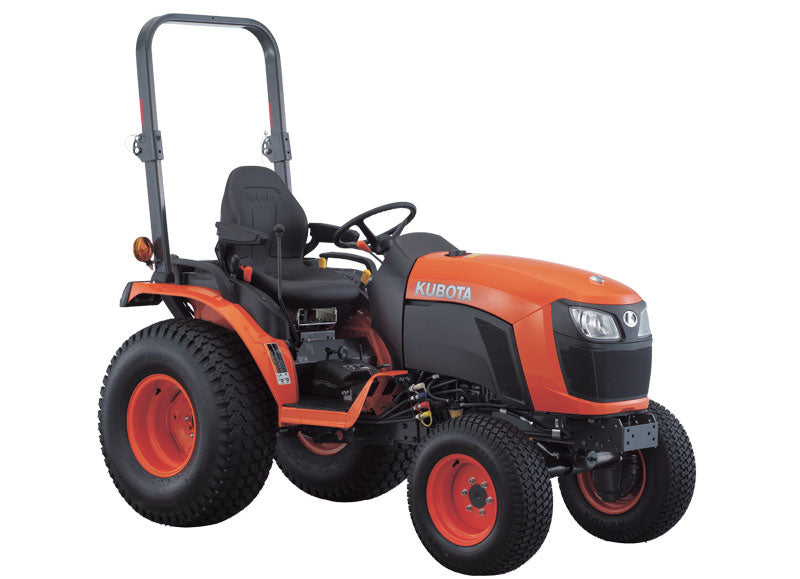

Kubota B2301 Compact Tractor

Kubota B2301 Compact Tractor is a compact tractor built for property maintenance, loader work and three-point implements. Kubota lists engine gross power at 15.6 kW / 20.9 HP, PTO power at 13 kW / 17.4 HP, and transmission at HST (3 ranges). A Kubota diesel engine, cast-iron front and rear axles and a heavy-duty Category I three-point hitch provide dependable durability.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Quality you can trust: A Kubota diesel engine, cast-iron front and rear axles and a heavy-duty Category I three-point hitch provide dependable durability.
• Comfort that lasts (HST models): The B01’s spacious ISO-mounted flat deck provides generous legroom, while the high-back shock-absorbing seat with standard armrests helps reduce fatigue.
• Versatility for every task: Swift-Tach loader, BH70 backhoe and K-Connect front-hitch systems support quick changes between mowing, loading, digging, hauling and snow work.
• Swift-Tach Loader: The LA435 Swift-Tach loader can be removed from the operator seat in less than a minute for faster changeovers.
• BH70 Backhoe: The BH70 backhoe uses a reversible swivel seat and four-point mounting system for quick, tool-free changes between digging and rear implements.
• Drive-over mid-mount mower: Offered in 54” and 60” side-discharge models, this mower is designed for quick hookup, simply drive the tractor over it to align for fast attachment and removal.
• HST or Manual Transmission: The B2301 and B2601 come equipped with an easy to use 3 range hydrostatic transmission (HST) for simple, intuitive control, ideal for frequent direction changes.
• Expansive operator platform: The ISO-mounted flat deck provides ample legroom, wide steps, and easy access, while widely spaced fenders create a more open, spacious operating environment.
• Hydraulic Independent PTO (HST models): The independent PTO allows the operator to engage or disengage implements on the go, keeping the operator moving forward and backward with ease, no downtime required.

Specifications

Model

• Model name: B2301

Engine

• Type: E-TVCS, liquid cooled, 3 -cylinder diesel
• Air pre-cleaner: Dual paper element
• Bore: 76 mm / 3 in
• Stroke: 73.6 mm / 2.9 in
• Cooling system: Pressurized radiator
• Lubrication: Forced lubrication
• Make: Kubota D1005
• Radiator fan: Radial air flow
• Rated engine speed: 2800 rpm / 2800 rpm
• Engine gross horsepower @ rpm: 15.6 kW / 20.9 HP
• PTO horsepower: 12.98 kW / 17.4 HP
• Displacement: 1001 cc / 61.1 cu. in.
• Fuel tank capacity: 23 l / 6.1 gal

Power take off (PTO)

• Type: Independent
• PTO/engine speed: 540 rpm / 540 rpm
• Rated engine speed: 2500 rpm / 2500 rpm

Drive train/transmission

• Clutch: N/A
• Transmission type: HST (3 ranges)
• Differential lock: Standard
• Brake type: Multi-plate wet disc

Hydraulic system

• Control system: Position control valve
• 3-Point hitch: Category I
• Type: Open center
• 24" behind lift point: 640 kg / 1411 lb
• At lift points: 820 kg / 1808 lb
• Total pump output: 31.4 l/min / 8.3 gpm
• Pump type: Dual pump
• Hydraulic outlet: Rear outlet
• Steering type: Hydraulic power steering

Chassis, axle and brakes

• Final drive: Spur gear

Dimensions and weight

• Ground clearance: 305 mm / 12 in
• Overall height: 2130 mm / 83.9 in
• Wheelbase: 1560 mm / 61.4 in
• Weight: 710 kg / 1566 lb
• Without 3 Pt hitch: 2380 mm / 93.7 in
• (min. tread): 1150 mm / 45.3 in
• Front (Farm): 44901
• Rear (Farm): 9.5-16
• With brake: 2.1 m / 6.9 ft

Fluid capacities

• Cooling system capacity: 3.8 l / 4 qt
• Engine lubricant oil capacity: 3.1 l / 3.3 qt
• Transmission oil capacity: 15 l / 4 gal

Fuel system

• Fuel type: diesel

Traveling speeds (With standard tires)

• Forward: 19.1 km/h / 11.9 mph
• Reverse: 14.3 km/h / 8.9 mph
