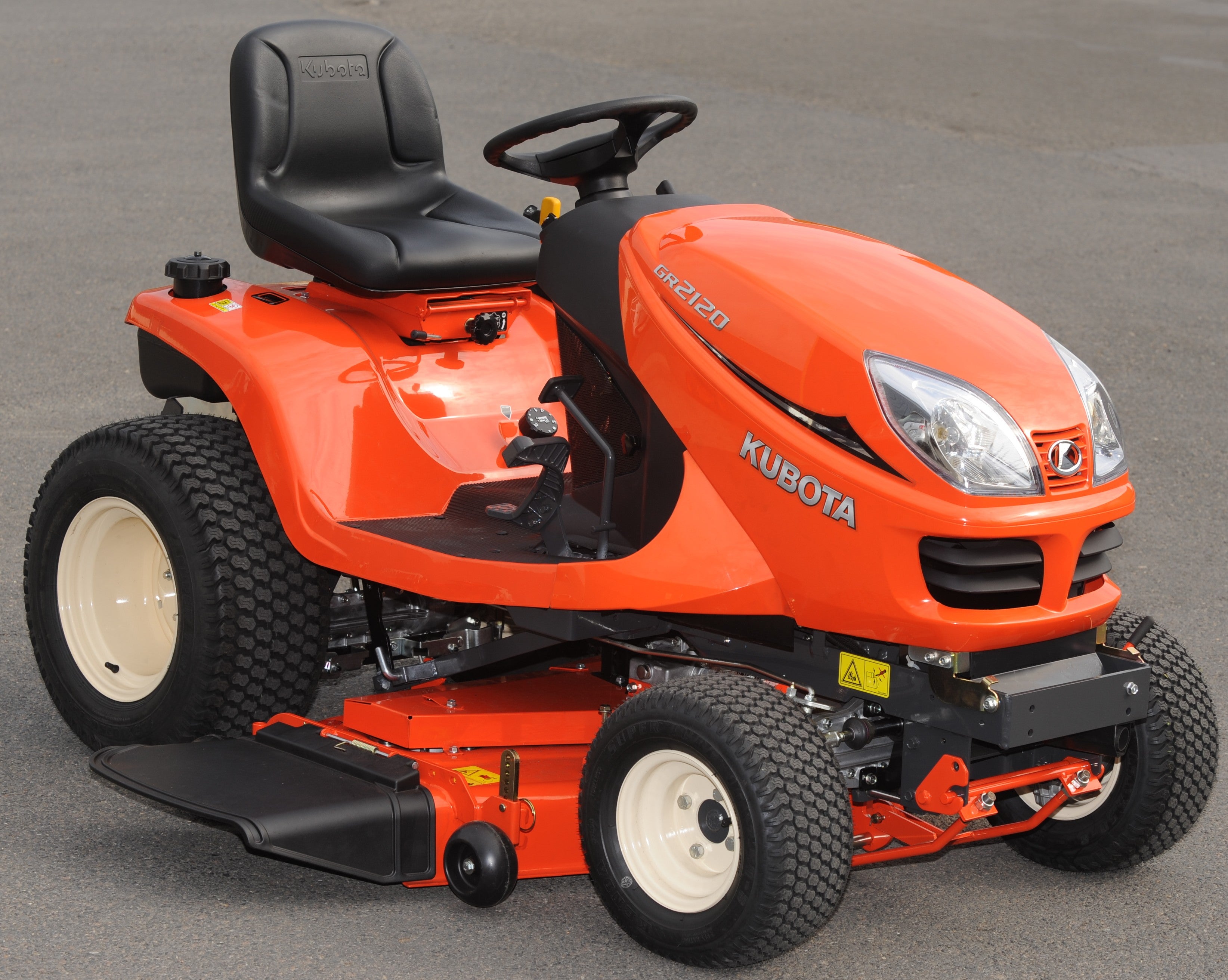

Kubota GR2120 Lawn Tractor

Kubota GR2120 Lawn Tractor is a lawn tractor designed for routine mowing and property maintenance. Kubota lists engine gross power at 12.7 kW / 17 HP. The shaft-drive transmission and mower deck reduce belt maintenance. A single-pedal Kubota HST paired with hydrostatic power steering makes operation smooth, responsive, and easy, so the operator can stay focused on the task ahead.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

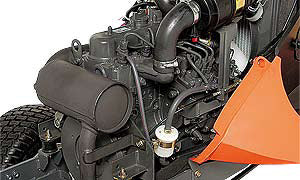

• Durable engines: The GR mowers offer options in both gas and diesel engines which are proven, high performing, efficent and reliable.
• Shaft drive transmission and mower deck: The low maintenance shaft drive transmission and mower deck will provide years and years of reliable service with far less maintenance than conventional belt drive mowers.
• Glide Steer technology: Allows the inside rear wheel to rotate freely during turns, working with the 70° steering angle to deliver a tighter turning radius and minimize turf damage around trees, planter boxes, and other obstacles.

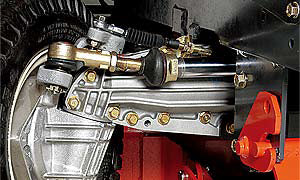

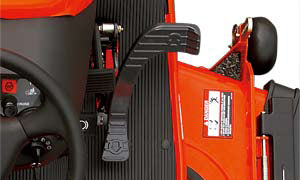

• Hydrostatic transmission and power steering: A single-pedal Kubota HST paired with hydrostatic power steering makes operation smooth, responsive, and easy, so the operator can stay focused on the task ahead.
• Adjustable suspension seat: Built for mowing over bumpy terrain, the high-back suspension seat adjusts to the operator's weight and position, minimizing vibration and reducing fatigue during long mowing sessions.
• Fuel gauge and oversized filler neck: Keep tabs on the operator's fuel level at a glance with an easy-to-read mechanical gauge.
• All-wheel drive: With full-time all-wheel drive, this mower maintains consistent traction across snow, turf, and uneven ground, built for year-round use with compatible attachments.
• Optional power grass collector: The 10-bushel power grass collector makes cleanup easy. From fall leaves to spring clippings, it doesn’t leave a trace.
• Hydraulic PTO clutch engagement and mower lift: No more belts and pulleys to maintain.

Specifications

Model

• Model name: GR2120

Engine

• Displacement: 778 cc / 47.5 cu. in.
• Manufacturer: D782
• Engine gross power: 12.7 kW / 17 HP
• Engine layout: Horizontal

Drive train/transmission

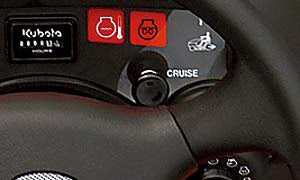

• Cruise control: Std.
• Type: Hydrostatic transmission
• System: Shaft drive

Dimensions and weight

• Ground clearance: 120 mm / 4.7 in
• Overall height: 1290 mm / 50.8 in
• Overall length: 1990 mm / 78.3 in
• Wheelbase: 1280 mm / 50.4 in
• With 48" mower deck: 1550 mm / 61 in
• With 48" mower deck: 435 kg / 959 lb
• With 54" mower deck: 440 kg / 970 lb

Fuel system

• Fuel type: gasoline

Tread

• Front: 825 mm / 32.5 in
• Rear: 820 mm / 32.2 in

Tires

• Front: 16x7.5–8
• Rear: 23x10.50–12

Traveling speed

• System: Single foot pedal
• Forward: 10 km/h / 6.2 mph
• Reverse: 5 km/h / 3.1 mph

Power take off (PTO)

• Clutch: Hydraulic wet multi discs

Fluid capacities

• Fuel tank capacity: 18 l / 4.8 gal

Other

• Hour meter: Std.
• Easy Checker: Std.
• Capacity: 10 bu / 10 bu
• Material of bag: cloth
• Fuel gauge: Std.

Operating area

• Mower: Std.
• Travel: Std.
• Blade shut off brake: PTO Clutch
• Seat adjustment: Slide
• Seat suspension: Mechanical suspension with weight adjustment

Chassis, axle and brakes

• System: Internal expanding brake
• Steering type: Glide Steer, hydraulic power steering

Mower decks

• Mower drive: Shaft drive
• Operator's platform: Flat
