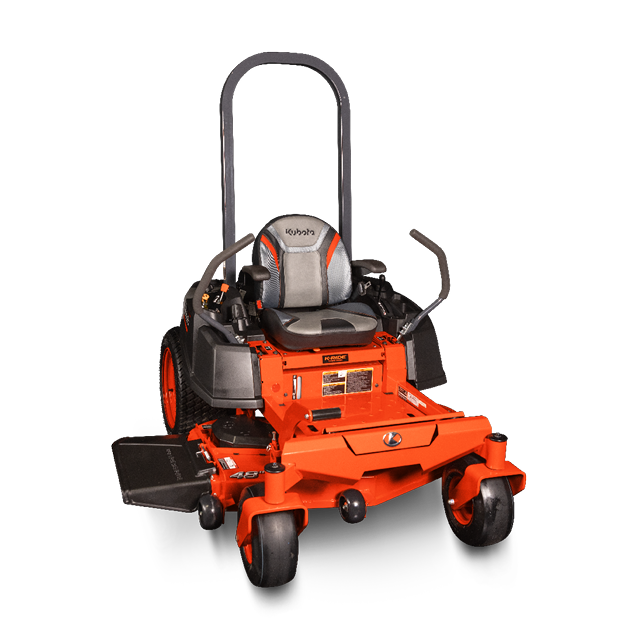

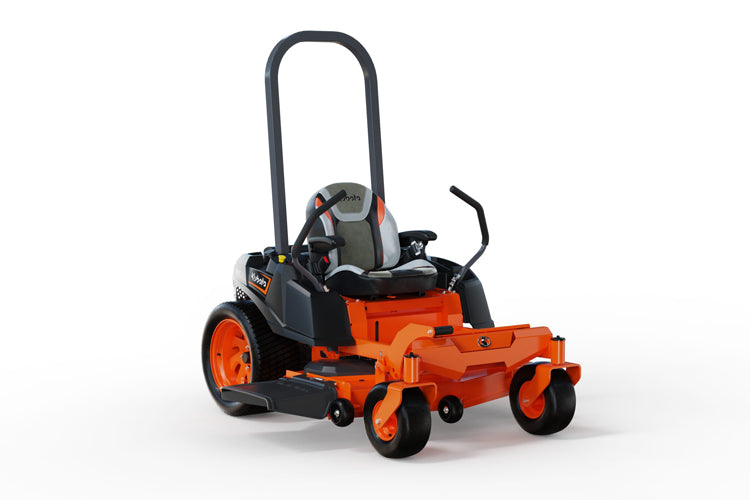

Kubota Z242KH-48 Zero-Turn Mower

Kubota Z242KH-48 Zero-Turn Mower is a zero-turn mower designed for productive turf maintenance and precise manoeuvring around obstacles. Kubota lists engine gross power at 16.4 kW / 22 HP, cutting width at 1219 mm / 48 in, and mower deck depth at 127 mm / 5 in. With its heavy-duty 10-gauge fabricated mower deck, the operator get high cut quality and maximum productivity, which means commercial-grade results.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Pro cutting performance: With its heavy-duty 10-gauge fabricated mower deck, the operator get high cut quality and maximum productivity, which means commercial-grade results.

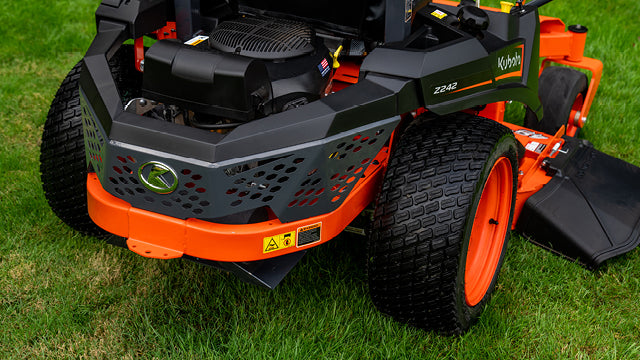

• Serious power: The Z200 is powered by a Kawasaki or Kohler engine that’s easy to maintain and has up to 26 hp.
• K-Lift: Adjusting the operator's cutting height is effortless and easy with the K-Lift mechanical one push deck lift pedal.
• Mow in total comfort: A full-flat operator platform, factory-equipped air-ride seat and thick cushion mat simplify entry and help reduce fatigue.
• User-friendly controls: Enjoy pinpoint control via an ergonomic layout with easy-to-read indicators, a cutting height adjustment dial the operator can set to precise ¼” increments and dual control levers that are ideal for trimming around tight spaces.
• Lasting durability: The Kubota Z200 Series models are easy to maintain and are built with quality materials to keep the operator mowing for years to come.

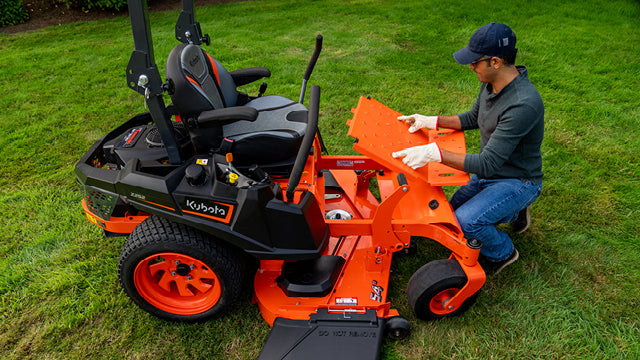

• Ease of maintenance: Easily maintain and clean the mower deck on the Z200 by removing the floor pan and belt guards without tools.
• 3 cutting sizes available: 42” cutting width for the Kubota Z232KW-42 model, 48” for the Kubota Z242KH-48 & Kubota Z242KW-48 models and 54” for the Kubota Z252KH-54 & Kubota Z252KW-54 models.

Specifications

Model

• Model name: Z242KH-48

Engine

• Model: Kohler ® KT Series"
• Type: Carburated air cooled 2 cylinders gasoline engine
• Displacement: 747 cc / 45.6 cu. in.
• Safety starting system: Push Button w/ keyfob
• Engine gross power: 16.4 kW / 22 HP

Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Dimensions and weight

• Overall height: 1855 mm / 73 in
• Overall length: 2006 mm / 79 in
• Wheelbase: 1195 mm / 47 in
• With mower: 1552 mm / 61.1 in
• Without mower: 1207 mm / 47.5 in
• With mower: 368 kg / 811 lb

Electrical

• Battery - cold cranking amps: U1 (300CCA, 410CA)

Fuel system

• Fuel type: Gasoline

Tread

• Front: 826 mm / 32.5 in
• Rear: 964 mm / 38 in

Tires

• Front: 13 × 6.5 – 6 pneumatic
• Rear: 22 × 10 – 14

Drive train/transmission

• Type: Hydro-Gear® ZT-3100
• System: 2-HST w/ Gear reduction

Traveling speed

• System: 2-hand lever
• Forward: 12.9 km/h / 8 mph
• Reverse: 6.4 km/h / 4 mph

Mower decks

• Model: RCK48P-200Z
• Type: Side discharge
• Lift system: Mechanical / Foot pedal K-LIFT Ratchet System
• Mower deck depth: 127 mm / 5 in
• Belt type: Belt drive
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1219 mm / 48 in
• Number of blades: 3
• Mounting method: Parallel linkage
• Blade tip speed: 5516.88 m/min / 18100 fpm
• Cutting height (min.): 38.1 mm / 1.5 in
• Cutting height (max.): 114.3 mm / 4.5 in

Other

• Seat: 21" high back seat w/ armrests
• Hour meter: Hour meter w/ maintenance indicator
• Fuel gauge: Sight window

Fluid capacities

• Fuel tank capacity: 16.3 l / 4.3 gal

Operating area

• Seat suspension: OPT

Chassis, axle and brakes

• Type: Cog style parking lock / Hand lever
