Kubota Z232KW-42 Zero-Turn Mower

Kubota Z232KW-42 Zero-Turn Mower is a zero-turn mower designed for productive turf maintenance and precise manoeuvring around obstacles. Kubota lists engine gross power at 16 kW / 21.5 HP, cutting width at 1066.8 mm / 42 in, and mower deck depth at 114 mm / 4.5 in. With its heavy-duty 42” 10-gauge fabricated mower deck, the operator get high cut quality and maximum productivity, which means commercial-grade results.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• User-friendly controls: Enjoy pinpoint control via an ergonomic layout with easy-to-read indicators, a cutting height adjustment dial the operator can set to precise ¼” increments and dual control levers that are ideal for trimming around tight spaces.
• Lasting durability: The Kubota Z200 Series models are easy to maintain and are built with quality materials to keep the operator mowing for years to come.
• 3 cutting sizes available: 42” cutting width for the Kubota Z232KW-42 model, 48” for the Kubota Z242KH-48 & Kubota Z242KW-48 models and 54” for the Kubota Z252KH-54 & Kubota Z252KW-54 models.
• Pro cutting performance: With its heavy-duty 42” 10-gauge fabricated mower deck, the operator get high cut quality and maximum productivity, which means commercial-grade results.

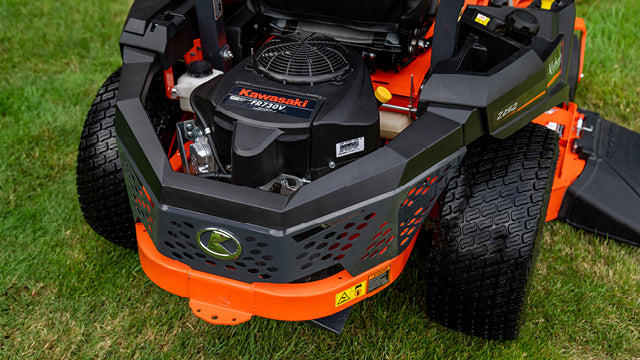

• Serious power: The Z232KW-42 is powered by a Kawasaki engine that’s easy to maintain and has 21.5 hp.
• Foot Operated Deck Lift: Adjusting the operator's cutting height is easy with the one push deck lift pedal.
• Mow in total comfort: A full-flat operator platform, factory-equipped air-ride seat and thick cushion mat simplify entry and help reduce fatigue.

Specifications

Model

• Model name: Z232KW-42

Engine

• Model: Kawasaki ® FR Series
• Type: Air cooled 2 cylinders
• Displacement: 726 cc / 44.3 cu. in.
• Safety starting system: Key switch
• Engine gross power: 16.03 kW / 21.5 HP

Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Dimensions and weight

• Overall height: 1693 mm / 66.7 in
• Overall length: 1890 mm / 74.4 in
• Wheelbase: 1236 mm / 48.7 in
• With mower: 1400 mm / 55.1 in
• Without mower: 1076 mm / 42.4 in
• With mower: 292 kg / 643 lb

Electrical

• Battery - cold cranking amps: U1 (300CCA, 410CA)

Fuel system

• Fuel type: Gasoline

Tread

• Front: 616 mm / 24.3 in
• Rear: 885 mm / 34.8 in

Tires

• Front: 11 × 4 – 5 pneumatic
• Rear: 18 × 7.5 – 10

Drive train/transmission

• Type: Hydro-Gear® ZT-2200
• System: 2-HST w/ Gear reduction

Traveling speed

• System: 2-hand lever
• Forward: 10.5 km/h / 6.5 mph
• Reverse: 6.4 km/h / 4 mph

Mower decks

• Model: RCK42P-122Z
• Type: Side discharge
• Lift system: Mechanical
• Mower deck depth: 114 mm / 4.5 in
• Belt type: Belt drive
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1066.8 mm / 42 in
• Number of blades: 2
• Mounting method: Parallel linkage
• Blade tip speed: 5394.96 m/min / 17700 fpm
• Cutting height (min.): 38.1 mm / 1.5 in
• Cutting height (max.): 107.95 mm / 4.25 in

Fluid capacities

• Fuel tank capacity: 13.6 l / 3.6 gal

Other

• Hour meter: Hour meter
• Fuel gauge: Sight window

Operating area

• Seat suspension: N/A

Chassis, axle and brakes

• Type: Cog style parking lock / Hand lever
