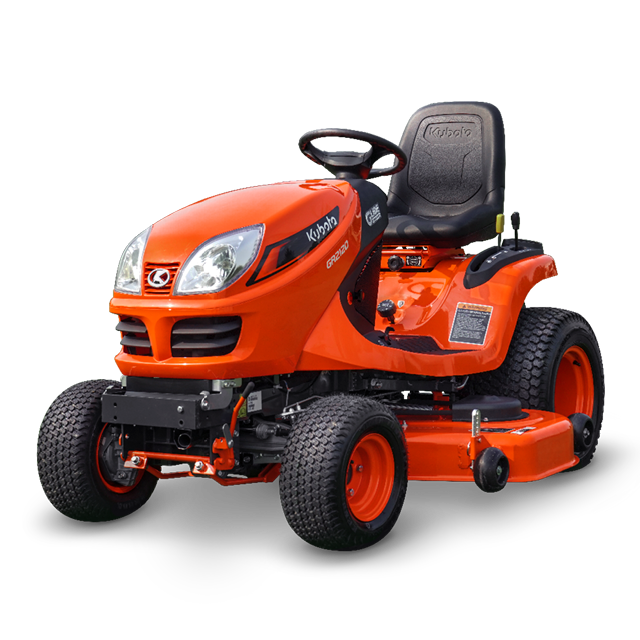

Kubota GR2020G-3 Lawn Tractor

Kubota GR2020G-3 Lawn Tractor is a lawn tractor designed for routine mowing and property maintenance. Kubota lists engine gross power at 15.3 kW / 20.5 HP, forward travel speed at 10 km/h / 6.2 mph, and fuel capacity at 16 l / 4.2 gal. The shaft-drive transmission and mower deck reduce belt maintenance.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Durable engines: The GR mowers offer options in both gas and diesel engines which are proven, high performing, efficent and reliable.
• Shaft drive transmission and mower deck: The low maintenance shaft drive transmission and mower deck will provide years and years of reliable service with far less maintenance than conventional belt drive mowers.
• Glide Steer technology: Allows the inside rear wheel to rotate freely during turns, working with the 70° steering angle to deliver a tighter turning radius and minimize turf damage around trees, planter boxes, and other obstacles.
• Hydrostatic transmission and power steering: A single-pedal Kubota HST paired with hydrostatic power steering makes operation smooth, responsive, and easy, so the operator can stay focused on the task ahead.
• Adjustable suspension seat: Built for mowing over bumpy terrain, the high-back suspension seat adjusts to the operator's weight and position, minimizing vibration and reducing fatigue during long mowing sessions.
• Fuel gauge and oversized filler neck: Keep tabs on the operator's fuel level at a glance with an easy-to-read mechanical gauge.

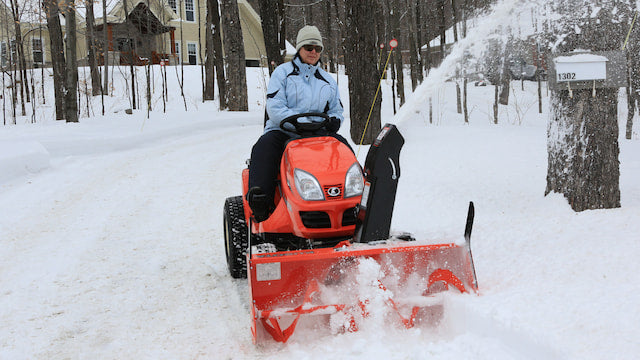

• All-wheel drive: With full-time all-wheel drive, this mower maintains consistent traction across snow, turf, and uneven ground, built for year-round use with compatible attachments.
• Optional power grass collector: The 10-bushel power grass collector makes cleanup easy. From fall leaves to spring clippings, it doesn’t leave a trace.
• Hydraulic PTO clutch engagement and mower lift: No more belts and pulleys to maintain.

Specifications

Model

• Model name: GR2020

Engine

• Displacement: 674 cc / 41.1 cu. in.
• Manufacturer: GH631
• Engine gross power: 15.3 kW / 20.5 HP
• Engine layout: Horizontal

Drive train/transmission

• Cruise control: Std.
• Type: Hydrostatic transmission
• System: Shaft drive

Dimensions and weight

• Ground clearance: 120 mm / 4.7 in
• Overall height: 1290 mm / 50.8 in
• Overall length: 1990 mm / 78.3 in
• Wheelbase: 1280 mm / 50.4 in
• With 48" mower deck: 1550 mm / 61 in
• With 48" mower deck: 400 kg / 882 lb

Fuel system

• Fuel type: gasoline

Tread

• Front: 825 mm / 32.5 in
• Rear: 820 mm / 32.2 in

Tires

• Front: 16x7.5–8
• Rear: 23x10.50–12

Traveling speed

• System: Single foot pedal
• Forward: 10 km/h / 6.2 mph
• Reverse: 5 km/h / 3.1 mph

Power take off (PTO)

• Clutch: Hydraulic wet multi discs

Fluid capacities

• Fuel tank capacity: 16 l / 4.2 gal

Other

• Hour meter: Std.
• Easy Checker: Std.
• Capacity: 10 bu / 10 bu
• Material of bag: cloth
• Fuel gauge: Std.

Operating area

• Mower: Std.
• Travel: Std.
• Blade shut off brake: PTO Clutch
• Seat adjustment: Slide
• Seat suspension: Mechanical suspension with weight adjustment

Chassis, axle and brakes

• System: Internal expanding brake
• Steering type: Glide Steer, hydraulic power steering

Mower decks

• Mower drive: Shaft drive
• Operator's platform: Flat
