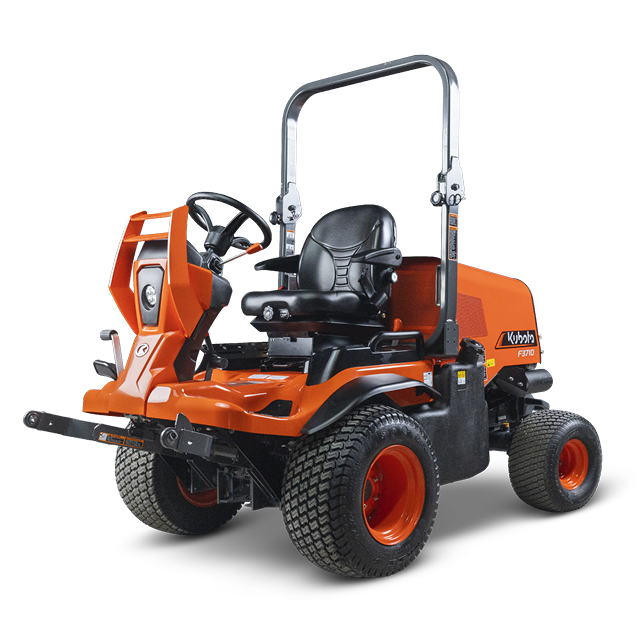

Kubota F3710 Front Mount Tractor

Kubota F3710 Front Mount Tractor is a front-mount mower platform designed for visibility, manoeuvrability and commercial turf maintenance. Kubota lists engine gross power at 27.5 kW / 36.9 HP, forward travel speed at 20 km/h / 12.4 mph, and fuel capacity at 61 l / 16.1 gal. The mower deck tilts a full 90° to provide quick, safe access to the blades and underside for cleaning or servicing.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Get comfortable: Get the job done in a comfortable and fully adjustable seat. The armrests come standard and the operator can select between a suspension or air ride seat.
• New parking brake: Secure the operator's ride at the end of a productive day with ease. The new parking brake on the F10 is dash mounted and easier to lock for trouble-free access and operation.
• LED work light: The F10 is equipped with a powerful LED work light for better visibility in low light conditions so the operator have the ability to get the job done at any time of day.
• Easier maintenance points: It’s now easier to access important areas of the F10 for the operator's daily check points.
• Dependable diesel engine: The F2510 and F2510E are powered by Kubota’s proven D1105 diesel engine with mechanical injection and an improved Three Vortex Combustion System for clean burning, reliable performance.
• 4WD and auto-assist 4WD: Auto-Assist 4WD works in forward and reverse, automatically controlling the drive loads on the wheels during turns to reduce turf wear and improve maneuverability.
• Go all season: The F10 can be put to work 24/7/365. the operator can switch from a front mower deck to a variety of attachments for spring and fall cleanup or snow removal.
• Flip-up mower deck: The mower deck tilts a full 90° to provide quick, safe access to the blades and underside for cleaning or servicing.
• Heavy-duty fabricated mower deck: Built for long-lasting performance, the mower deck uses a double V-belt design with heavy-duty cast iron pulleys to deliver dependable operation season after season.

Specifications

Model

• Model name: F3710

Engine

• Type: Liquid-cooled diesel (4 cyl)
• Displacement: 1498 cc / 91.4 cu. in.
• Manufacturer: Kubota V1505T-IDI+DPF
• Engine gross power: 27.5 kW / 36.9 HP
• Type: Dual element

Power take off (PTO)

• Type: Independent live, Shaft drive
• Clutch: Wet multi discs, hydraulic
• Revolution: 2580

Drive train/transmission

• Cruise control: Optional
• Drive method: 4WD
• Type: HST (F2/R2)
• 4WD - mode select: Auto-assist 4WD with dual acting overrunning clutch/locked (4WD)

Dimensions and weight

• Ground clearance: 185 mm / 7.3 in
• Overall height: 1985 mm / 78.1 in
• Overall length: 2530 mm / 99.6 in
• Overall width: 1370 mm / 53.9 in
• Wheelbase: 1350 mm / 53.1 in
• Weight: 849 kg / 1872 lb

Fuel system

• Fuel type: diesel

Tread

• Front: 1063 mm / 41.9 in
• Rear: 1020 mm / 40.2 in

Tires

• Front: 24 × 12 - 12
• Rear: 18 × 9.5 - 8

Traveling speed

• Forward: 20 km/h / 12.4 mph
• Reverse: 11 km/h / 6.8 mph

Mower decks

• Lift system: Hydraulic 2-point hitch
• Tilt assist: Standard
• Weight transfer system: Standard

Other

• Seat: Reclining suspension seat
• Fuel gauge: LCD Display (White backlight)
• Roll-over protective structure (ROPS): Standard (ISO21299 and OSHA)
• Tachometer: LCD Display (White backlight)
• Toolbox: Standard
• Beverage holder: Standard

Fluid capacities

• Fuel tank capacity: 61 l / 16.1 gal

Chassis, axle and brakes

• System: Wet discs
• Type: Hydrostatic power
• Tilt steering wheel: Standard
• Differential lock: Standard
• Turn assist brake: Optional

Electrical

• Alternator: 12 V, 60A
