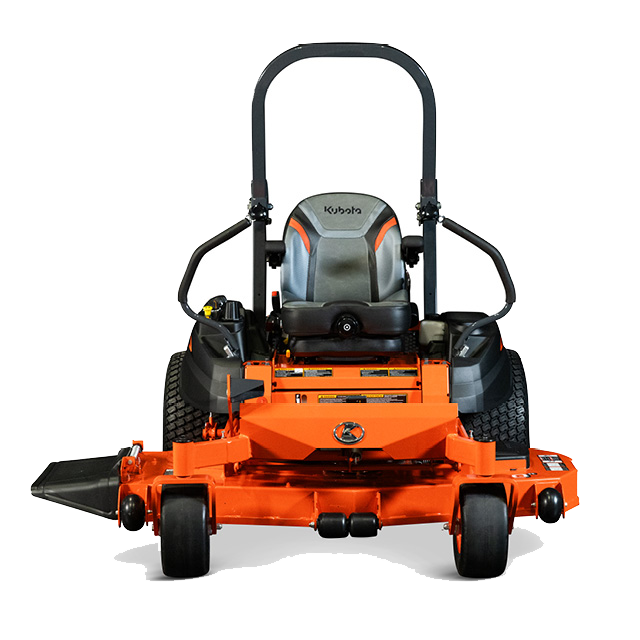

Kubota Z452KWi-54 Zero-Turn Mower

Kubota Z452KWi-54 Zero-Turn Mower is a zero-turn mower designed for productive turf maintenance and precise manoeuvring around obstacles. Kubota lists engine gross power at 19.4 kW / 26 HP, cutting width at 1372 mm / 54 in, and mower deck depth at 127 mm / 5 in. With Electronic Fuel injection (EFI) technology, the Z452 continuously adjusts engine power to match cutting load and ground speed.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Commercial-grade mowing at home: Powered by a Kawasaki FS carbureted or FT EFI engine and Hydro-Gear 3600 transmission, the Z400’s commercial-grade drivetrain offers strength and reliability for years to come.
• Sit back and mow in comfort: Say goodbye to uncomfortable mowing. The Z400’s deluxe high-back suspension seat and patented vibration-reducing technology ensures a smooth, fatigue-free ride.
• Tailored to you for maximum control: The Z400 was designed with the operator's comfort in mind, with fully adjustable controls for maximum ergonomic support.
• One push deck lift: The K-Lift system allows for quick and effortless adjustment of the cutting height.
• Precision crafted for a flawless cut: The Z400’s 5” deep, 10 gauge fabricated mower deck is engineered for strength and durability, while delivering consistently high-quality cuts.
• Built for easy maintenance: Keeping the operator's Z400 in peak condition is simple. the operator can quickly perform maintenance and cleaning with tool-less mower deck access and a flip-up seat.
• Power when you need it most: With Electronic Fuel injection (EFI) technology, the Z452 continuously adjusts engine power to match cutting load and ground speed.
• Built for a smooth ride: Semi-pneumatic caster tires are engineered to absorb impacts on the job without relying on air, alleviating concerns about downtime and allowing the operator to mow in total comfort and confidence.

Specifications

Z452KWi-54 | Model

• Model name: Z452KWi-54

Z452KWi-54 | Engine

• Model: GH730V
• Type: EFI Air cooled V-twin vertical crank shaft gasoline engine
• Make: Kawasaki (FT Series)
• Displacement: 726 cc / 44.3 cu. in.
• Safety starting system: Push button
• Engine gross power: 19.3882 kW / 26 HP

Z452KWi-54 | Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Z452KWi-54 | Dimensions and weight

• Overall length: 2055 mm / 80.9 in
• Wheelbase: 1255 mm / 49.4 in
• Top of Open Station: 1772 mm / 69.8 in
• With mower: 1710 mm / 67.3 in
• Without mower: 1235 mm / 48.6 in
• With mower: 433 kg / 954 lb
• Top of Open Station - folded position: 1265 mm / 49.8 in

Z452KWi-54 | Electrical

• Battery: U1 (12V, RC : 45min, CCA : 300, CA : 410)
• Generator: 15 A / 15 A

Z452KWi-54 | Tread

• Front: 1255 mm / 49.4 in
• Rear: 1000 mm / 39.4 in

Z452KWi-54 | Drive train/transmission

• Type: Hydro-Gear® Commercial ZT3600®
• System: 2-HST w/Gear reduction

Z452KWi-54 | Traveling speed

• System: 2-hand lever
• Forward: 16 km/h / 10 mph
• Reverse: 8 km/h / 5 mph

Z452KWi-54 | Mower decks

• Model: RCK54P-400Z
• Type: Side discharge
• Lift system: Mechanical / Foot pedal
• Mower deck depth: 127 mm / 5 in
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1372 mm / 54 in
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Parallel linkage
• Blade tip speed: 5699.76 m/min / 18700 fpm

Z452KWi-54 | Other

• Seat: Deluxe seat w/3 inch stroke suspension
• Hour meter: Standard

Z452KWi-54 | Fluid capacities

• Fuel tank capacity: 25.7 l / 6.8 gal

Z452KWi-54 | Chassis, axle and brakes

• Type: Cog style parking lock / Foot pedal

Z452KWi-54 | Tires

• Front: 13 × 6.5 – 6
• Rear: 24 × 9.5 –14
• Front: Semi-pneumatic
• Rear: Low profile tire

Z452KWTi-60 | Model

• Model name: Z452KWTi-60

Z452KWTi-60 | Engine

• Model: GH730V
• Type: EFI Air cooled V-twin vertical crank shaft gasoline engine
• Make: Kawasaki (FT Series)
• Displacement: 726 cc / 44.3 cu. in.
• Safety starting system: Push button
• Engine gross power: 19.3882 kW / 26 HP

Z452KWTi-60 | Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Z452KWTi-60 | Dimensions and weight

• Overall length: 2055 mm / 80.9 in
• Wheelbase: 1255 mm / 49.4 in
• Top of Open Station: 1772 mm / 69.8 in
• With mower: 1870 mm / 73.6 in
• Without mower: 1388 mm / 54.6 in
• With mower: 433 kg / 954 lb
• Top of Open Station - folded position: 1265 mm / 49.8 in

Z452KWTi-60 | Electrical

• Battery: U1 (12V, RC : 45min, CCA : 300, CA : 410)
• Generator: 15 A / 15 A

Z452KWTi-60 | Tread

• Front: 1255 mm / 49.4 in
• Rear: 1070 mm / 42.1 in

Z452KWTi-60 | Drive train/transmission

• Type: Hydro-Gear® Commercial ZT3600®
• System: 2-HST w/Gear reduction

Z452KWTi-60 | Traveling speed

• System: 2-hand lever
• Forward: 16 km/h / 10 mph
• Reverse: 8 km/h / 5 mph

Z452KWTi-60 | Mower decks

• Model: RCK60P-400Z
• Type: Side discharge
• Lift system: Mechanical / Foot pedal
• Mower deck depth: 127 mm / 5 in
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1524 mm / 60 in
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Parallel linkage
• Blade tip speed: 5577.84 m/min / 18300 fpm

Z452KWTi-60 | Other

• Seat: Deluxe seat w/3 inch stroke suspension
• Hour meter: Standard

Z452KWTi-60 | Fluid capacities

• Fuel tank capacity: 25.7 l / 6.8 gal

Z452KWTi-60 | Chassis, axle and brakes

• Type: Cog style parking lock / Foot pedal

Z452KWTi-60 | Tires

• Front: 13 × 6.5 – 6
• Rear: 24 × 12 –14
• Front: Semi-pneumatic
• Rear: Low profile tire
