Kubota RTV-X Utility Vehicle

Kubota RTV-X Utility Vehicle is a full-size diesel utility vehicle offered in Basic, Standard and Premium grades. Grade-specific cargo equipment, colour availability, dimensions, capacities and operating specifications are combined below, with any differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Powerful Kubota diesel engine: All grades use a three-cylinder Kubota diesel engine for dependable hauling and utility work.
• One-pedal operation: The VHT-X hydrostatic drivetrain provides smooth one-pedal speed control and easy manoeuvrability.

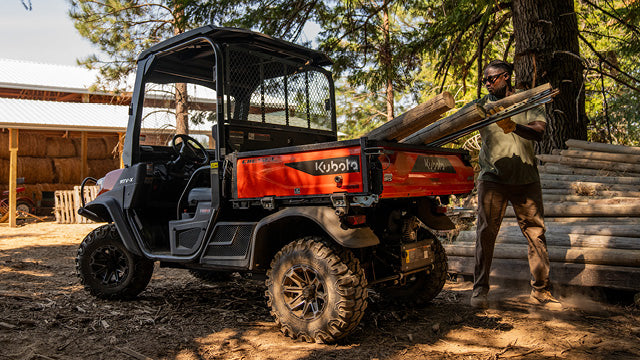

• Heavy-duty steel cargo box: All grades use a durable steel cargo box for hauling tools, materials and equipment.
• Comfortable operator area: Hydrostatic power steering and a tilt-adjustable steering wheel support precise, comfortable control.
• LCD meter panel: A bright LCD meter displays key operating information at a glance.
• Strong high-rigidity frame: The high-rigidity steel frame is designed for demanding utility work while helping reduce noise and vibration.
• Independent suspension: Four-wheel independent suspension supports durability and a smoother ride over uneven terrain.
• LED lighting: LED lighting supports visibility across the RTV-X grade range; exact lighting equipment is listed by model in Specifications.

Specifications

Model

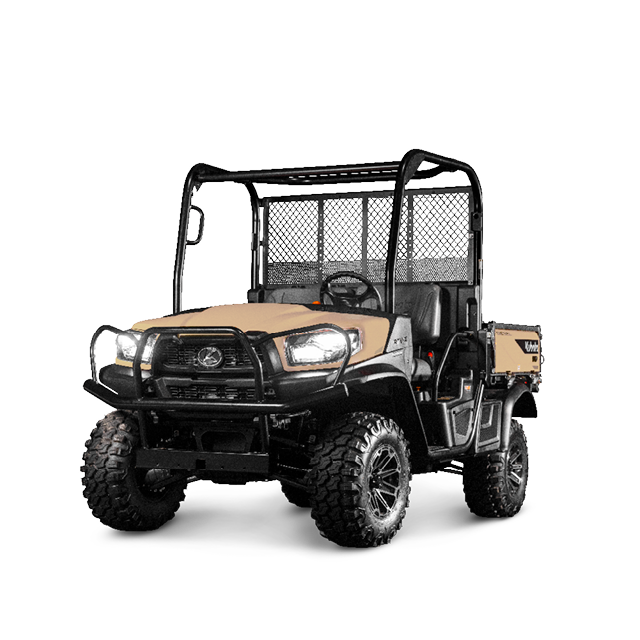

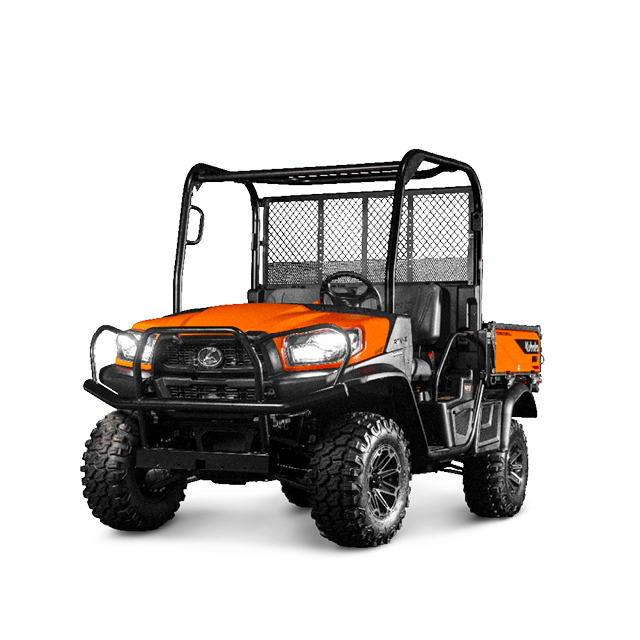

• Body colour: Orange (RTV-X Basic); Orange, Camo (RTV-X Standard); Orange, Camo, Desert Sand (RTV-X Premium)
• Model name: RTV-X Basic / RTV-X Standard / RTV-X Premium

Drive train/transmission

• Gear selection: Hi-Lo range forward, neutral, reverse
• Type: Variable hydro transmission (VHT-X)
• Differential lock - Front axle: Limited-slip differential
• Max. traveling speed: 40 km/h / 25 mph

Dimensions and weight

• Length: 3050 mm / 120.1 in (RTV-X Basic); 3110 mm / 122.4 in (RTV-X Standard); 3123 mm / 123 in (RTV-X Premium)
• Width: 1605 mm / 63.2 in
• Front: 1240 mm / 48.8 in
• Rear: 1240 mm / 48.8 in
• Front: 265 mm / 10.4 in
• Rear: 260 mm / 10.3 in
• Max. towing capacity: 590 kg / 1300 lb
• Max. payload capacity: 690 kg / 1521 lb (RTV-X Basic); 680 kg / 1499 lb (RTV-X Standard); 668 kg / 1472 lb (RTV-X Premium)
• Turning radius: 4 m / 13.1 ft
• Weight: 930 kg / 2050 lb (RTV-X Basic); 940 kg / 2072 lb (RTV-X Standard); 952 kg / 2099 lb (RTV-X Premium)
• Wheelbase: 2045 mm / 80.5 in
• Overall height: 2020 mm / 79.5 in

Cargo box

• Volume: 0.43 m3 / 15.2 cu. ft.
• Height: 887 mm / 34.9 in
• Max. payload capacity: 500 kg / 1102 lb
• Material: Steel
• Type: Traditional (RTV-X Basic, RTV-X Standard); ProKonvert (RTV-X Premium)
• Width: 1465 mm / 57.7 in
• Length: 1030 mm / 40.5 in
• Depth: 285 mm / 11.2 in

Tires

• Front: 25 × 10-12, 6-ply
• Rear: 25 × 10-12, 6-ply
• Front: 25 × 10-12, 6-ply
• Rear: 25 × 10-12, 6-ply

Other

• Alloy wheel: Opt. (RTV-X Basic, RTV-X Standard); (Orange, Camo) Available (Desert Sand) Standard (RTV-X Premium)
• Front guard: Basic (RTV-X Basic); Standard (RTV-X Standard); Premium (RTV-X Premium)
• Hydraulic bed lift: Option (RTV-X Basic); Standard (RTV-X Standard, RTV-X Premium)
• Spray-on bed liner: Not available (RTV-X Basic); (Orange) Available, (Camo) Standard (RTV-X Standard); Standard (RTV-X Premium)

Electrical

• Headlights: LED (Low) (RTV-X Basic); LED (High/Low) (RTV-X Standard, RTV-X Premium)
• Battery: 670 A / 670 A

Safety equipment

• Open Station certified: SAE J2194 and OSHA 1928 ROPS
• Seat belts: 2-point
• Max. noise level at operators ear: 84 Db

Engine

• Engine gross power: 17.37 kW / 23.3 HP
• Displacement: 1123 cc / 68.5 cu. in.
• Make: KUBOTA D1105-E4-UV
• Cooling system: Liquid
• Type: 3-cylinders, 4-cycle, diesel, OHV

Fluid capacities

• Fuel tank capacity: 30 l / 7.9 gal

Chassis, axle and brakes

• Steering type: Hydrostatic power steering (RTV-X Standard, RTV-X Premium)
• Parking brake: Rear wheel, hand operated (RTV-X Standard, RTV-X Premium)
• Type of front suspension: Independent, Dual A-arms with adjustable spring preload (RTV-X Standard, RTV-X Premium)
• Front: Wet-disc brakes (RTV-X Standard, RTV-X Premium)
• Rear: Wet-disc brakes (RTV-X Standard, RTV-X Premium)
• Front suspension travel: 205 mm / 8 in (RTV-X Standard, RTV-X Premium)
• Rear suspension travel: 205 mm / 8 in (RTV-X Standard, RTV-X Premium)
