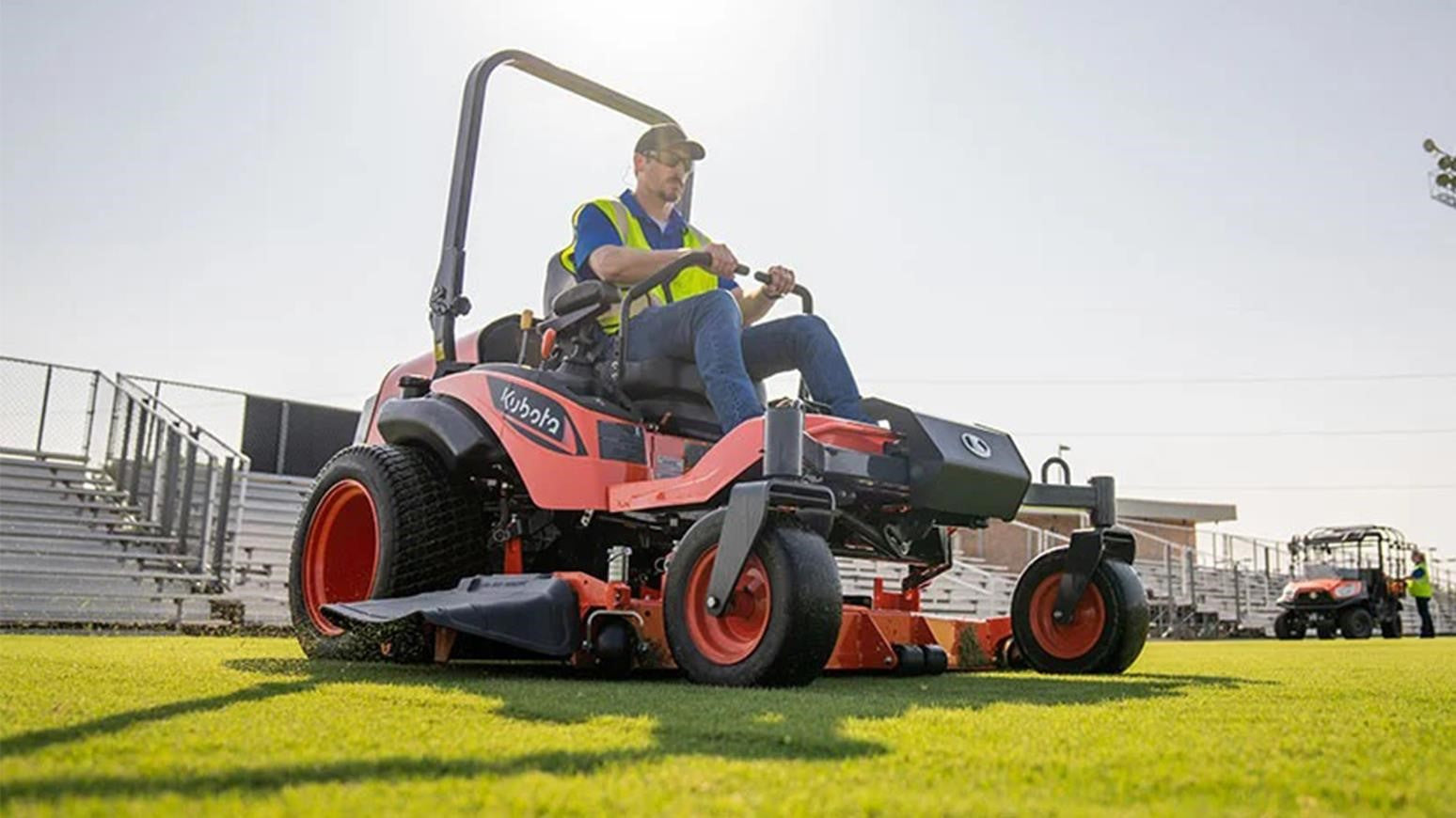

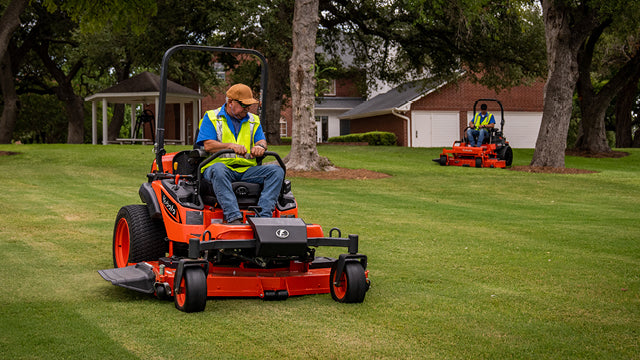

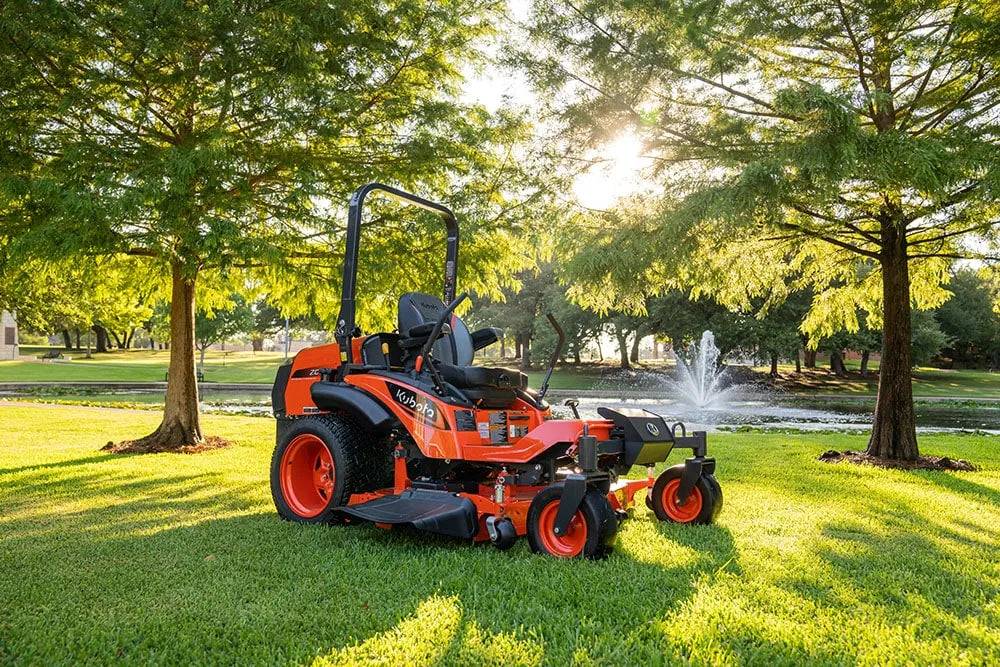

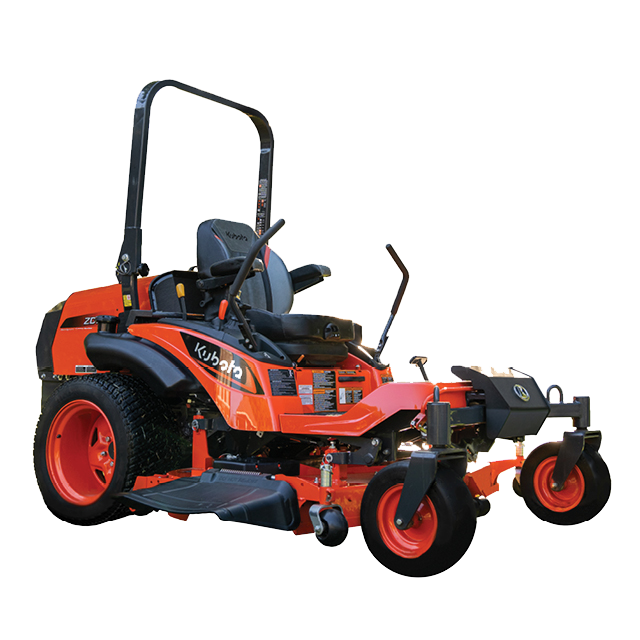

Kubota ZD1611 Zero-Turn Mower

Kubota ZD1611 Zero-Turn Mower is a commercial diesel zero-turn mower offered in multiple 60-inch and 72-inch configurations. Shared specifications are combined below, with deck, dimension, capacity and operating differences identified by exact model.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Kubota diesel engine: The ZD1600 boasts a meticulously crafted Kubota diesel engine, renowned for its unwavering reliability during extended workdays.
• Multiple deck configurations: The ZD1611 family is offered with side- and rear-discharge mower configurations; exact deck type and width are listed by model in Specifications.
• Easy-to-use LCD screen: A bright LCD monitor provides clear engine status and displays the current state of the regeneration system in easy-to-understand text.
• Front tie down points: When transporting the operator's ZD1600, it’s easier to secure to a trailer thanks to the tie down hooks found at the front and rear.
• Power outlet: Get power on the go with the ZD1600, whether the operator is charging the operator's phone or powering an air pump.
• Foldable ROPS: While the ROPS keeps the operator safe, it also folds down making it much easier and more convenient to store and transport the ZD1600.
• Easy access: The large hood opening makes the engine easy to access and a mower maintenance lift is also included.
• Outstanding stability: Thanks to a lower center of gravity, wide stance, and low profile tires, the ZD1600 has incredible stability on a variety of terrains.

Specifications

Model

• Model name: ZD1611RL-60R / ZD1611RLF-72R

Engine

• Model: Kubota V1505-CR-TE5-ZD1
• Type: Diesel, liquid-cooled (4cyl.) w/ DPF
• Displacement: 1498 cc / 91.41 cu. in.
• Manufacturer: Kubota
• Safety starting system: Key switch
• Engine gross power: 22.967 kW / 30.8 HP

Power take off (PTO)

• Type: Shaft drive
• Clutch: Hydraulic independent PTO clutch with wet multi disks
• PTO brake: Wet single disk

Dimensions and weight

• Overall length: 2684.78 mm / 105.7 in
• Wheelbase: 1560 mm / 61.4 in
• Top of Open Station: 2000 mm / 78.7 in
• With mower: 1600 mm / 63 in (ZD1611RL-60R); 2180 mm / 85.8 in (ZD1611LF-72); 1910 mm / 75.2 in (ZD1611RLF-72R)
• Without mower: 1510 mm / 59.4 in (ZD1611RL-60R); 1540 mm / 60.6 in (ZD1611LF-72, ZD1611RLF-72R)
• With mower: 955 kg / 2105 lb (ZD1611RL-60R, ZD1611RLF-72R); 950 kg / 2094 lb (ZD1611LF-72)
• Top of Open Station - folded position: 1640 mm / 64.6 in

Electrical

• Battery - cold cranking amps: Maintenance free battery : 12 V, CCA : 670A , RC : 115 min
• Alternator: Alternator : 75Amps 12Volts

Tread

• Front: 1064 mm / 41.9 in (ZD1611RL-60R); 1250 mm / 49.2 in (ZD1611LF-72, ZD1611RLF-72R)
• Rear: 1210 mm / 47.6 in

Drive train/transmission

• System: 2-HST w/ Gear reduction

Traveling speed

• System: 2-hand levers
• Forward: 17 km/h / 10.6 mph
• Reverse: 8.5 km/h / 5.3 mph

Mower decks

• Model: RCK60RP-1500Z (ZD1611RL-60R); RCK72P-1500Z (ZD1611LF-72, ZD1611RLF-72R)
• Type: Kubota ProDeck (ZD1611RL-60R, ZD1611RLF-72R); Kubota ProDeck with ACS (ZD1611LF-72)
• Lift system: Hydraulic
• Mower deck depth: 140 mm / 5.5 in (ZD1611RL-60R, ZD1611RLF-72R); 152.4 mm / 6 in (ZD1611LF-72)
• Belt type: Multi-belt
• Mower deck thickness: 4.2 mm / 0.16 in (ZD1611RL-60R, ZD1611LF-72); 4.5 mm / 0.18 in (ZD1611RLF-72R)
• Type anti-scalp rollers: Swivel
• Cutting width: 1524 mm / 60 in (ZD1611RL-60R); 1829 mm / 72 in (ZD1611LF-72, ZD1611RLF-72R)
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Quick joint, parallel linkage
• Blade tip speed: 5242.65 m/min / 17200 fpm (ZD1611RL-60R); 5577.84 m/min / 18300 fpm (ZD1611LF-72, ZD1611RLF-72R)

Other

• Seat: Air-ride suspension seat with Reclining and lumbar support
• Hour meter: Standard
• Fuel gauge: Standard
• Engine stop system: Key stop
• Water temperature indicator: Standard

Fluid capacities

• Fuel tank capacity: 49 l / 13 gal

Chassis, axle and brakes

• Type: Wet multi disks, foot applied, released

Tires

• Front: 15 × 6.5 - 8
• Rear: 26 × 12 - 16
• Front: Smooth semi-pneumatic, Low profile tire
• Rear: Low profile tire

Lifting forces

• Battery voltage x capacity: Maintenance free battery : 12 V, CCA : 670A , RC : 115 min
