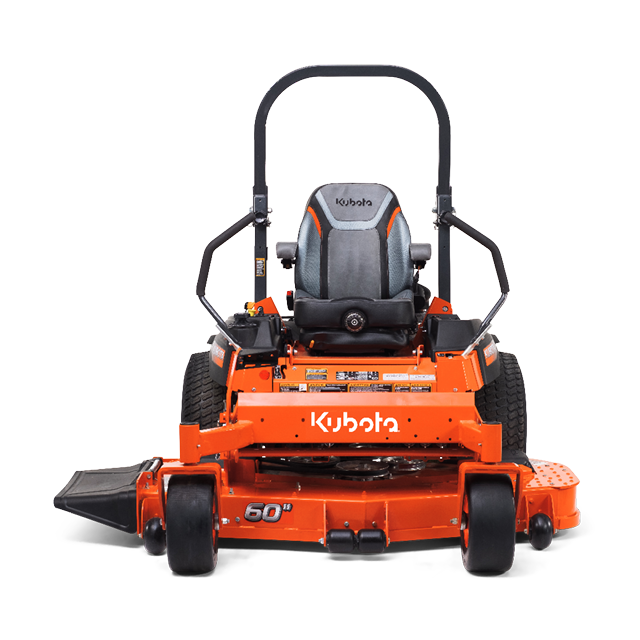

Kubota Z726XKW-3-60 Zero-Turn Mower

Kubota Z726XKW-3-60 Zero-Turn Mower is a zero-turn mower designed for productive turf maintenance and precise manoeuvring around obstacles. Kubota lists engine gross power at 19 kW / 25.5 HP, cutting width at 1524 mm / 60 in, and mower deck depth at 152.4 mm / 6 in. Dual Parker transmissions integrate the pump and motor for efficient operation and simplified service.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Transmission with integrated pump and motor: Dual Parker transmissions integrate the pump and motor for efficient operation and simplified service.
• Ultimate comfort: The standard adjustable suspension seat includes a high back, armrests and fore-aft and vertical adjustment.
• Intuitive design: All controls and indicators are neatly placed for quick, easy, user-friendly access.
• Safe and effective operation controls: A wide platform, foot-operated parking brake and deck-lift controls keep the primary operating levers within easy reach.
• Adjustable controls: Adjustable control levers, deck-lift pedal and hydrostatic dampers help accommodate different operators.
• Improved grass catcher design: The grass catcher uses a durable blower guard and revised latch system for easier cleaning and maintenance.
• Outstanding stability: Z700 series has wide stance rear tires and heavy component positioning under the seat to create a low center of gravity and ultimate terrain hugging performance.

Specifications

Model

• Model name: Z726XKW-2-60

Engine

• Model: Kawasaki ®
• Type: Gasoline, air-cooled V-Twin
• Displacement: 852 cc / 52 cu. in.
• Manufacturer: GH860V
• Safety starting system: Key switch
• Engine gross power: 19.015 kW / 25.5 HP

Power take off (PTO)

• Type: Belt drive
• Clutch: Electromagnetic clutch
• PTO brake: Dry disc

Chassis, axle and brakes

• Parking brake: Foot pedal
• Type: Drum disks, foot applied, released

Dimensions and weight

• Overall length: 2131 mm / 83.9 in
• Wheelbase: 1293 mm / 50.9 in
• Top of Open Station: 1780 mm / 70.1 in
• With mower: 1875 mm / 73.8 in
• Without mower: 1389 mm / 54.7 in
• With mower: 560 kg / 1235 lb
• Top of Open Station - folded position: 1235 mm / 48.6 in

Electrical

• Battery: U1 (12V, RC: 45min, CCA: 300, CA: 410)
• Generator: 15 A / 15 A

Tread

• Front: 954 mm / 37.6 in
• Rear: 1082 mm / 42.6 in

Drive train/transmission

• Type: Parker® Transmission **** HTG14 Transmissions
• System: 2 HST-2 G rotor type

Traveling speed

• System: 2 hand levers
• Forward: 18 km/h / 11.2 mph
• Reverse: 9 km/h / 5.6 mph

Mower decks

• Model: RCK60P-725Z
• Lift system: Mechanical
• Mower deck depth: 152.4 mm / 6 in
• Belt type: Single belt
• Mower deck thickness: 4.18 mm / 0.2 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1524 mm / 60 in
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Parallel linkage
• Blade tip speed: 5669.28 m/min / 18600 fpm

Other

• Seat: 21.2" high back seat with "Premium Adjustable Suspension", 3" vertical and 6" front to back travel
• Engine stop system: Key stop

Fluid capacities

• Fuel tank capacity: 43.9 l / 11.6 gal

Tires

• Front: 13 × 6.5– 6
• Rear: 24 × 12 – 12
• Front: Flat Free
