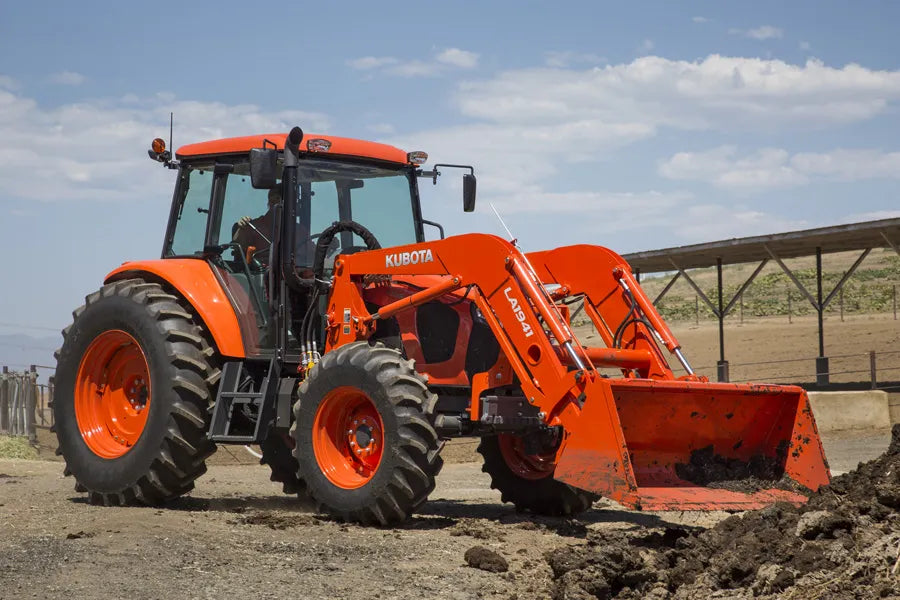

Kubota M6-111-1 Utility Tractor

Kubota M6-111-1 Utility Tractor is a utility tractor built for material handling, property maintenance and powered implement work. Kubota lists engine gross power at 85.1 kW / 114.1 HP and PTO power at 69 kW / 92 HP. Redesigned for maximum comfort, the all new loader joystick fits perfectly in the operator's hand while also being positioned closer to the operator for easier operation.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• New Loader Joystick: Redesigned for maximum comfort, the all new loader joystick fits perfectly in the operator's hand while also being positioned closer to the operator for easier operation.
• Xpress Restart: With the new Xpress Restart, driving has never been easier so beginners can move as quickly as the pros.
• Stationary PTO: Operators can run the rear PTO from both inside or outside the cab.
• Shuttle Shift Modulation: Enjoy a smoother operation with the ability to adjust the shuttle sensitivity.

Specifications

Model

• Model name: M6-111-1

Engine

• Model: V3800 – TI – CRS
• Type: Common Rail System, direct injection, liquid-cooled
• Air pre-cleaner: 8" Dry, dual-element
• Aspiration: Turbocharger with intercooler
• Bore: 100 mm / 3.94 in
• Stroke: 120 mm / 4.72 in
• Cylinders: 4
• Exhaust / muffler: Under-hood, corner-post exhaust pipe
• Make: Kubota
• Rated engine speed: rpm / 2600 rpm
• Engine gross horsepower @ rpm: 85.1 kW / 114.1 HP
• Engine net horsepower @ rpm: 79.7 kW / 106.8 HP
• PTO horsepower: 69 kW / 92 HP
• Displacement: 3769 cc / 230 cu. in.
• Alternator: 130 A / 130 A
• Fuel tank capacity: 190 l / 50.2 gal

Power take off (PTO)

• Type: Live-independent PTO, hydraulically operated wet clutch, w/ PTO brake
• Rated engine speed: 540 rpm / 540 rpm
• Rated engine speed: 1000 rpm / 1000 rpm

Drive train/transmission

• Main clutch: Multiple wet disc, electro-hydraulically operated
• Main gear shift: 8-speed powershift
• Max. traveling speed: 37.7 km/h / 23.4 mph
• Range gear shift: 3-speed mechanical shift with clutch button
• Shuttle: Microprocessor-controlled electro-hydraulic shuttle
• Brake type: Hydraulically operated wet disc brakes, with automatic front axle engagement
• Forward: 24
• Reverse: 24
• Creep (forward): 32
• Creep (reverse): 32
• Type: Intelli-Shift transmission
• Bi-speed turn: Standard
• Creep speed: 0.72 km/h / 0.45 mph
• Main clutch diameter: 133 mm / 5.2 in
• Front wheel drive system: Bevel gear type, on-the-go electro-hydraulic engagement, w/ electro-hydraulic front differential loc

Hydraulic system

• Category: II
• Control system: Electronic draft control, lower link sensing, left fender-mounted hitch switch standard
• Steering type: Hydrostatic power steering
• Remote valves: 2 standard (3rd, 4th optional) w/ built-in flow control
• At 24 in. behind lift point SAE: 3100 kg / 6834 lb
• At 24 in. behind lift point OECD: 2600 kg / 5732 lb
• Hitch & remote: 70.9 l/min / 18.7 gpm
• Power steering: 60.4 l/min / 16 gpm

CAB features

• Seat type: Swivel, reclining, full adjustment (height, weight, fore & aft.), arm rests, retractable seat belt
• Operator area: ISO-mounted flat deck, hanging pedals, tilt & telescopic wheel
• Lighting: 2 headlights, 4 front working lights, 2 rear working lights, 2 tail lights, 4 safety flashers
• Standard: Heater/Air conditioner, sun visor, front wiper/washer, rear wiper/washer, beverage holder, 12V. 30 A

Dimensions and weight

• Crop clearance: 495 mm / 19.5 in
• Overall height: 2840 mm / 111.8 in
• Overall length: 4200 mm / 165.4 in
• Wheelbase: 2435 mm / 95.9 in
• Weight: 4440 kg / 9789 lb
• (min. tread): 2100 mm / 82.7 in
• Front: 1580 mm / 62.2 in
• Rear: 1530 mm / 60.2 in
• Without brake: 4 m / 13.1 ft

Electrical

• Battery: 100 A / 100 A

Fluid capacities

• DEF tank capacity: 16 l / 4.2 gal

Tires

• Front: 13.6 R24
• Rear: 18.4 R34

Other

• Optional: 80" wide axle kit, 3-point high capacity lift cylinders, front weight bumper for 12 weights, front w
