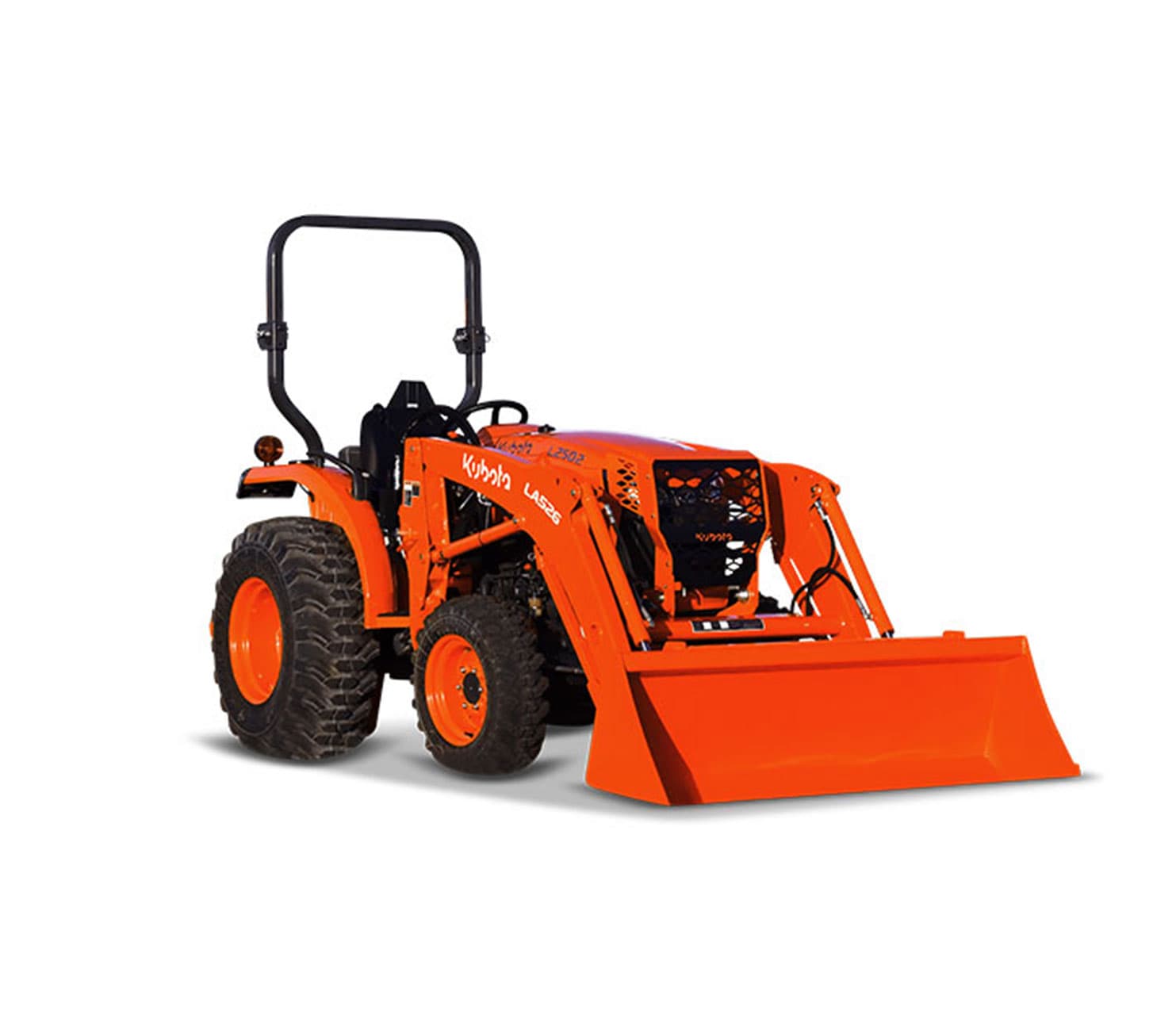

Kubota L2502 Compact Tractor

Kubota L2502 Compact Tractor is a compact tractor built for property maintenance, loader work and three-point implements. Kubota lists engine gross power at 17.4 kW / 23.3 HP, PTO power at 13.7 kW / 18.4 HP, and transmission at HST. The Kubota diesel engine is designed to perform with reduced noise and vibration for improved overall comfort and operation.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• More tractor for your dollar: The L02 brings plenty of performance and quality to punch above its affordable starting price.
• Dependable implement versatility: The Kubota L02 Series comes with a wide range of performance matched implements to take on the operator's toughest gardening, landscaping, snow removal and property maintenance jobs.
• Do more with serious capability: A high-capacity Category 1 3-point hitch gives the L02 the strength to handle heavy implements with ease.
• Quiet and capable operation: The Kubota diesel engine is designed to perform with reduced noise and vibration for improved overall comfort and operation.
• HST or gear drive transmission: Kubota transmissions deliver smooth operation in HST or Gear Drive configurations.
• All-day comfort: Get the job done all day long with the L02’s spacious operator station, improved suspension seat with optional arm rests, and the standard rubber floor mats.
• Cast-iron front & rear axle: The L02 Series is equipped with a heavy duty cast-iron front axle to help withstand wear and tear.
• 2-lever quick coupler for loader attachments: Quickly switch between buckets and tools without any hassle. No tools needed, just mount, couple, and get moving.
• Hassle-free operation and maintenance: The open operator platform and accessible service points simplify routine operation and maintenance.
• Narrow model available: Perfect for tight spots such as orchards, vineyards, and nurseries, the Kubota L02N is a great narrow option at only 52.7” wide.

Specifications

Model

• Model name: L2502HST

Engine

• Type: Direct injection, vertical, water-cooled 4-cycle diesel
• Bore: 87 mm / 3.4 in
• Stroke: 92.4 mm / 3.6 in
• Cylinders: 3
• Rated engine speed: 2200 rpm / 2200 rpm
• Engine gross horsepower @ rpm: 17.37 kW / 23.3 HP
• PTO horsepower: 13.72 kW / 18.4 HP
• Displacement: 1647 cc / 100.5 cu. in.
• Alternator: 40 A / 40 A
• Fuel tank capacity: 42 l / 11.1 gal

Power take off (PTO)

• Rear PTO: 540
• Type: Live independent PTO with hydraulic clutch
• Rated engine speed: 2020 rpm / 2020 rpm

Drive train/transmission

• Number of ranges: 3
• Transmission type: HST
• Brake type: Mechanical, wet disc type
• Drive method: 4WD

Hydraulic system

• 3-Point hitch: Category I
• Lift control type: Position control
• System pressure: 15.2 kg/cm2 / 220 psi
• 24" behind lift point: 630 kg / 1389 lb
• At lift points: 850 kg / 1874 lb
• Main: 25.7 l/min / 6.8 gpm
• PS: 11.8 l/min / 3.1 gpm
• Steering type: Integral type power steering

Dimensions and weight

• Ground clearance: 340 mm / 13.4 in
• Wheelbase: 1620 mm / 63.8 in
• Weight: 1275 kg / 2811 lb
• Open Station: 2330 mm / 91.7 in
• Without 3 Pt hitch: 2755 mm / 108.5 in
• (min. tread): 1400 mm / 55.1 in
• Front: 7.2 -16
• Rear: 11.2-24
• Front: 27x8.5-15
• Rear: 15-19.5 R4
• Front: 1095 mm / 43.1 in
• Rear: 1115 mm / 43.9 in
• With brake: 2.5 m / 8.2 ft
• Front: 25 x 8.5-14
• Rear: 13.6-16

Electrical

• Battery: 600 A / 600 A

Fuel system

• Fuel type: diesel

Traveling speeds (With standard tires)

• Forward: 18.5 km/h / 11.5 mph
• Reverse: 16.6 km/h / 10.3 mph
