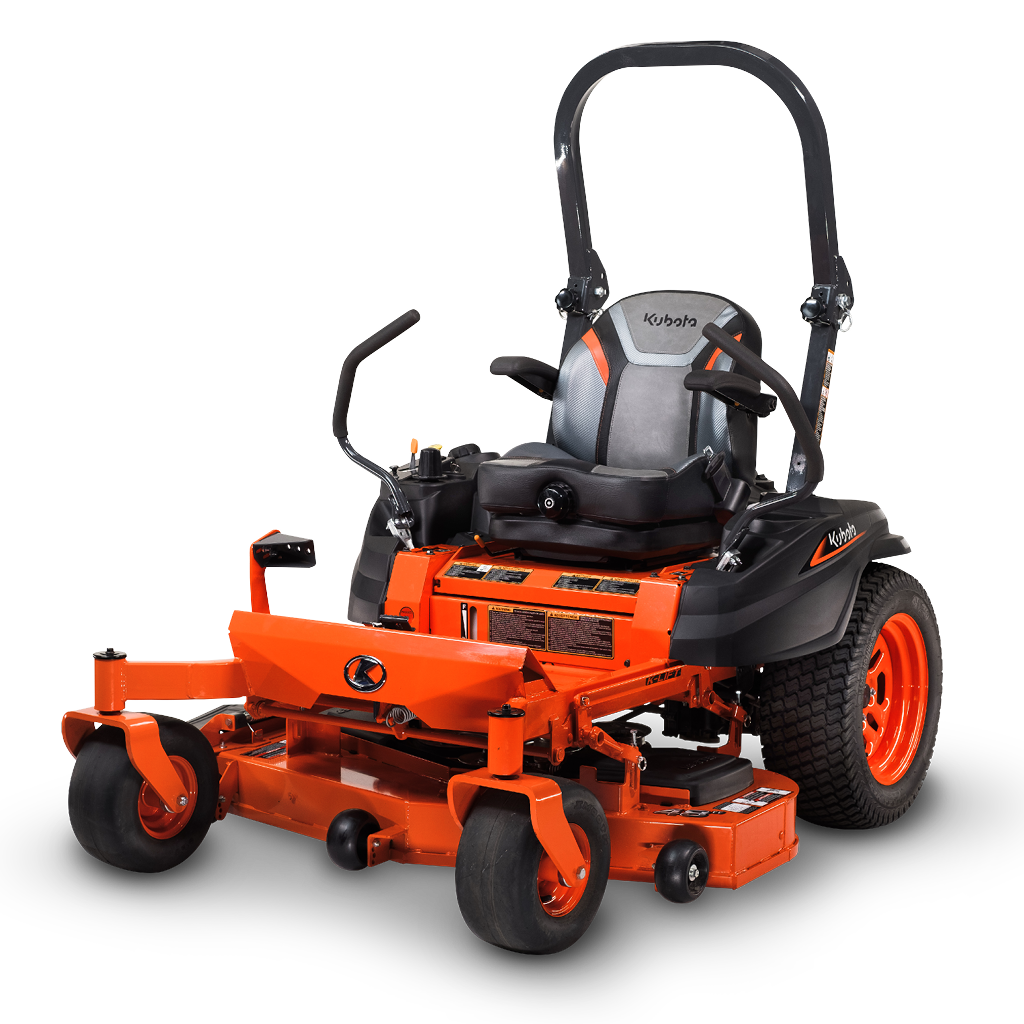

Kubota Z412KW-48 Zero-Turn Mower

Kubota Z412KW-48 Zero-Turn Mower is a zero-turn mower designed for productive turf maintenance and precise manoeuvring around obstacles. Kubota lists engine gross power at 16.4 kW / 22 HP, cutting width at 1219 mm / 48 in, and mower deck depth at 127 mm / 5 in. The K-Lift system allows for quick adjustment of the cutting height.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

• Commercial-grade mowing at home: Powered by a Kawasaki FS carbureted or FT EFI engine and Hydro-Gear 3600 transmission, the Z400’s commercial-grade drivetrain offers strength and reliability for years to come.
• Sit back and mow in comfort: Say goodbye to uncomfortable mowing. The Z400’s deluxe high-back suspension seat and patented vibration-reducing technology ensures a smooth, fatigue-free ride.
• Tailored to you for maximum control: The Z400 was designed with the operator's comfort in mind, with fully adjustable controls for maximum ergonomic support.
• One push deck lift: The K-Lift system allows for quick and effortless adjustment of the cutting height.
• Precision crafted for a flawless cut: The Z400’s 5” deep, 10 gauge fabricated mower deck is engineered for strength and durability, while delivering consistently high-quality cuts.
• Built for easy maintenance: Keeping the operator's Z400 in peak condition is simple. the operator can quickly perform maintenance and cleaning with tool-less mower deck access and a flip-up seat.
• Everything you need, within reach: The Z400’s operator station is designed for convenience.

Specifications

Model

• Model name: Z412KW-48

Engine

• Model: GH7302V
• Type: Air cooled 2 cylinders gasoline engine
• Make: Kawasaki
• Displacement: 726 cc / 44.3 cu. in.
• Safety starting system: Key switch
• Engine gross power: 16.4054 kW / 22 HP

Power take off (PTO)

• Type: Belt drive
• Clutch: Electric clutch
• PTO brake: Dry disc

Dimensions and weight

• Overall length: 2055 mm / 80.9 in
• Wheelbase: 1255 mm / 49.4 in
• Top of Open Station: 1772 mm / 69.8 in
• With mower: 1552 mm / 61.1 in
• Without mower: 1236 mm / 48.7 in
• With mower: 410 kg / 904 lb
• Top of Open Station - folded position: 1265 mm / 49.8 in

Electrical

• Battery: U1 (12V, RC : 45min, CCA : 300, CA : 410)
• Generator: 15 A / 15 A

Tread

• Front: 944 mm / 37.2 in
• Rear: 1000 mm / 39.4 in

Drive train/transmission

• Type: Hydro-Gear® Commercial ZT3600®
• System: 2-HST w/Gear reduction

Traveling speed

• System: 2-hand lever
• Forward: 16 km/h / 10 mph
• Reverse: 8 km/h / 5 mph

Mower decks

• Model: RCK48P-400Z
• Type: Side discharge
• Lift system: Mechanical / Foot pedal
• Mower deck depth: 127 mm / 5 in
• Belt type: Belt drive
• Mower deck thickness: 3.4 mm / 0.135 in
• Type anti-scalp rollers: Rigid
• Cutting width: 1219 mm / 48 in
• Number of blades: 3
• Cutting height: 127 mm / 5 in
• Mounting method: Parallel linkage
• Blade tip speed: 5730.24 m/min / 18800 fpm

Other

• Seat: Deluxe seat w/3 inch stroke suspension
• Hour meter: Standard
• Fuel gauge: Sight window
• Engine stop system: Key stop

Fluid capacities

• Fuel tank capacity: 25.7 l / 6.8 gal

Chassis, axle and brakes

• Type: Cog style parking lock / Foot pedal

Tires

• Front: 13 × 6.5 – 6
• Rear: 24 x 9.5 -14
• Front: Smooth pneumatic
• Rear: Low profile tire
