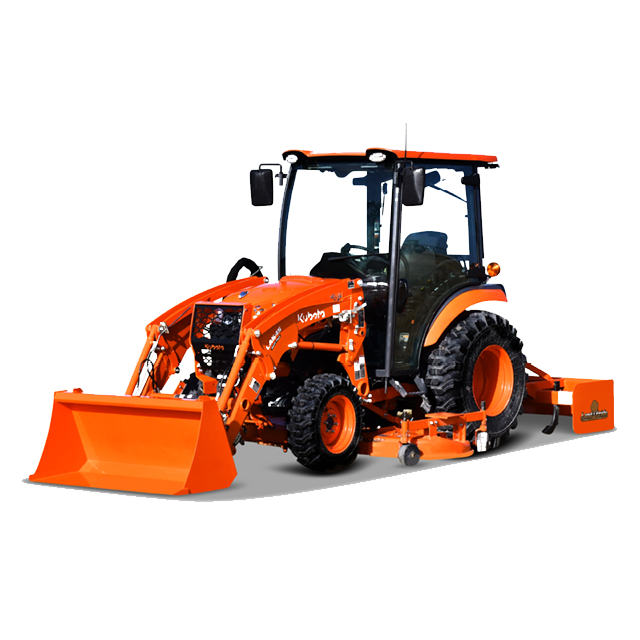

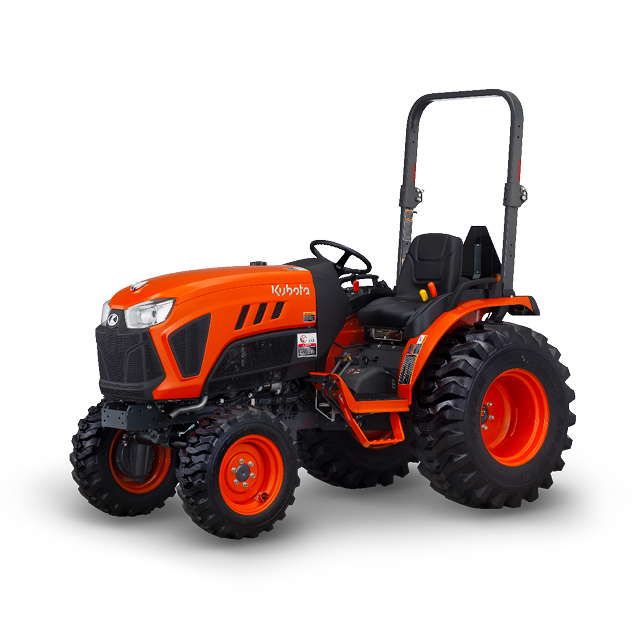

Kubota LX2620 Compact Tractor

Kubota LX2620 Compact Tractor is available in open-station and factory-cab configurations for property maintenance, loader work and compatible implements. Both versions use the same base machine platform, while cab equipment, dimensions, operating weight and other model-specific values vary by SKU and are identified by exact model in the combined Specifications section below.

Contact our team at Kooy Brothers Equipment Ltd. in Toronto, Ontario for current availability, compatible options and a quote.

Features

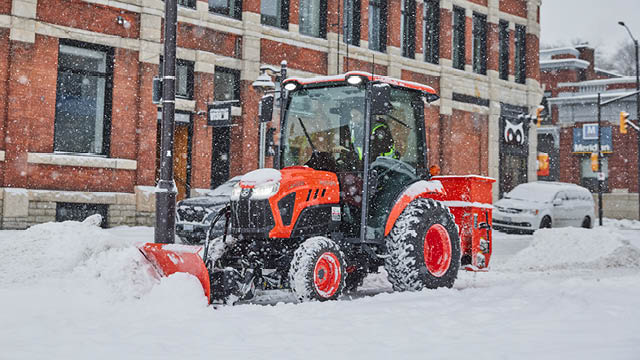

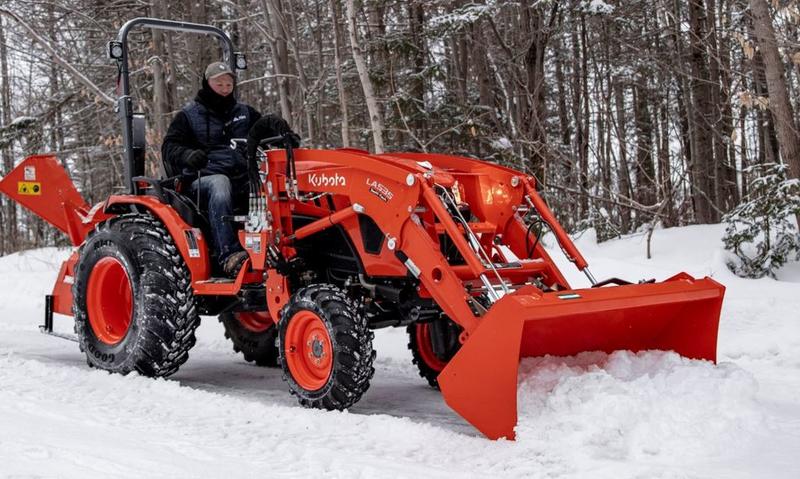

• Compact size with plenty of power: The LX20 is just right for both residential and commercial tasks, offering a compact size with impressive power for material handling, loader work, snow removal, and property maintenance.
• LED lighting: LED lighting supports improved visibility when working in lower-light conditions.
• Kubota HST transmission: Match any job with the 3-range hydrostatic (HST) transmission that’s clutch-less for easy operation.
• Wide operator platform: The large, flat deck offers plenty of legroom and makes it easy to get in and out of the LX20.
• Ergonomic lever grips and steering wheel: Enjoy easy access and smooth, low vibration in the operator's hands and arms with every application.

Specifications

Model

• Model name: LX2620HSD / LX2620HSDCC

Engine

• Model: D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDCC)
• Type: Indirect Injection, Vertical, water cooled 3 cylinder diesel engine (LX2620HSD)
• Air pre-cleaner: 4.5 inch Paper filter with (dual element)
• Bore: 78 mm / 3.1 in
• Stroke: 88 mm / 3.5 in
• Cooling system: Pressurized radiator
• Lubrication: Forced lubrication
• Radiator fan: Radial air flow
• Rated engine speed: 2500 rpm / 2500 rpm
• Engine gross horsepower @ rpm: 17.37 kW / 23.3 HP
• PTO horsepower: 14.47 kW / 19.4 HP
• Displacement: 1261 cc / 77 cu. in.
• Fuel tank capacity: 27 l / 7.1 gal (LX2620HSD); 32 l / 8.5 gal (LX2620HSDCC)

Power take off (PTO)

• Type: Independent
• PTO/engine speed: 540 rpm / 540 rpm
• Rated engine speed: 2500 rpm / 2500 rpm

Drive train/transmission

• Clutch: N/A
• Transmission type: HST (3 ranges)
• Differential lock: Standard
• Brake type: Multi-plate wet disc

Hydraulic system

• Control system: Position control
• 3-Point hitch: Category I
• Type: Open center
• 24" behind lift point: 760 kg / 1676 lb
• At lift points: 970 kg / 2139 lb
• Total pump output: 33.1 l/min / 8.7 gpm
• Pump type: Dual pump
• Hydraulic outlet: Rear outlet
• Steering type: Hydraulic power steering

Chassis, axle and brakes

• Final drive: Spur gear

Dimensions and weight

• Ground clearance: 370 mm / 14.6 in
• Overall height: 2245 mm / 88.4 in (LX2620HSD); 2150 mm / 84.6 in (LX2620HSDCC)
• Wheelbase: 1666 mm / 65.6 in
• Weight: 805 kg / 1775 lb (LX2620HSD); 1020 kg / 2249 lb (LX2620HSDCC)
• Without 3 Pt hitch: 2586 mm / 101.8 in (LX2620HSD); 2639 mm / 103.9 in (LX2620HSDCC)
• (min. tread): 1365 mm / 53.7 in
• Front R1: 7-12
• Front R4: 23x8.50-14
• Front R14: 23x8.50-12
• Rear R1: 12.4-16
• Rear R4: 12.4-16
• Rear R14: 14-17.5
• With brake: 2.1 m / 6.9 ft

Fluid capacities

• Cooling system capacity: 4.3 l / 4.5 qt (LX2620HSD); 5.4 l / 5.7 qt (LX2620HSDCC)
• Engine lubricant oil capacity: 4 l / 4.2 qt
• Transmission oil capacity: 15 l / 4 gal

Traveling speed

• Forward (R1): 18 km/h / 11.2 mph
• Reverse (R1): 13.5 km/h / 8.4 mph
