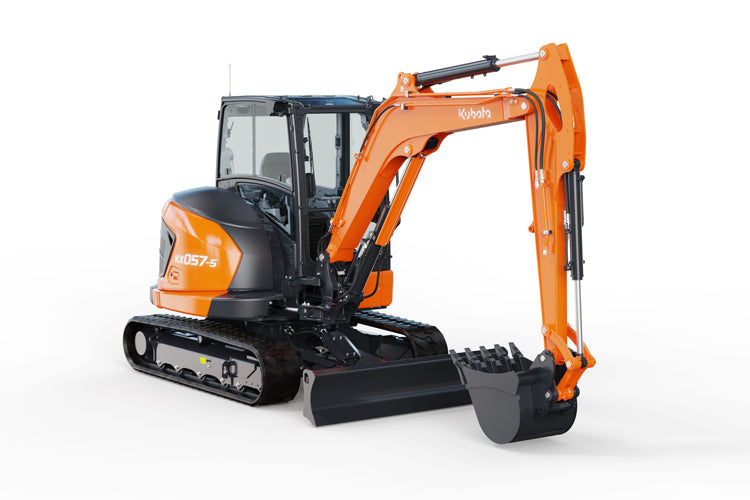

Kubota KX057-5 Compact Excavator
The next generation of mini excavators is here with the Kubota KX057-5 Compact Excavator! The newly designed interior offers a more spacious and comfortable operating area, while having the flexibility to adjust the seat and joysticks to your liking. New technology like the Full colour 7" LCD screen in the cab provides all the information the operator needs!
Kubota KX057-5 Compact Excavator Features Include:
- Spacious & Comfortable Cab - With new interior designs, the cab offers improved comfort for operators of any size. The design features a slimmer, more ergonomic
- Double Adjustable Seat - As a part of the new design, the cab is now equipped with a seat with a slide that can be double-adjusted to improve comfort. In addition, the left and right joysticks can be adjusted independently to meet the operators needs.
- Expanded Glass Area - A slimmer frame design means 20% more glass in the front window, skylight and left and right windows. Operators can monitor the left and right edges of the dozer as well as the bucket through the skylight.
- CRS & DPF - The Common Rail System (CRS) electronically controls the fuel injection timing and amount in stages rather than all at once for optimal combustion. The results are great efficiency, better fuel economy and less engine noise. Its combination with the Exhaust Gas Recirculation (EGR) and Diesel Particulate Filter (DPF) Muffler reduces emissions.
- Hydraulic Angle Blade - Save time and work more efficiently. With a simple movement of the dozer lever, the hydraulic angle blade can be angled to the right or left to push soil to the side as the machine moves forward.
- Load Sensing Hydraulic System - Kubota's load sensing hydraulic system ensures smoother operation, regardless of load size. It allows hydraulic oil to flow according to the specific range of the operator's lever motion. The result is greater fuel economy and smoother traveling.
- Auto Regeneration - Kubota’s original automatic regeneration system automatically burns accumulated particulate matter (soot) in the DPF muffler to keep the muffler clean for longer operation. For safety reasons, automatic regeneration can be turned off with the inhibit switch when the excavator is operating in areas that are close to material with potential for ignition.
Kubota KX057-5 Compact Excavator Specifications:
Engine
- Model - V2607-CR-E5-BH1/ V2607-CR-E5-BH2
- Gross Output - 47.6 HP @ 2200 rpm
- Net Output - 46.4 HP @ 2200 rpm
- Displacement - 159.6 cu. in.
- Fuel Capacity - 19.3 gal
Dimensions
- Overall Length - 18'1"
- Overall Height - 8'4"
- Overall Width - 6'5"
- Min. Ground Clearance - 12.2"
Hydraulic System
- Pump Capacity - 14.8 gpm Variable x2 / 9.8 gpm Gear x 1
- Auxiliary Hydraulic Flow (AUX1) - 19.8 gpm
- Auxiliary Hydraulic Flow (AUX2) - 9.8 gpm
- Max. Breakout Force (Bucket) - 10172 lbs
- Max. Breakout Force (Arm) - 5463 lbs
- Hydraulic Oil Capacity (Reservoir) - 11.1 gal
- Hydraulic Oil Capacity (System) - 20.3 gal
Drive System
- Travel Speed (Low) - 1.8 mph
- Travel Speed (High) - 3.1 mph
- Max. Traction Force (Low Speed) - 14480 lbs
- Tumbler Distance - 6'6"
- Crawler Length - 8'2"
- Shoe Width - 15.7"
Swing System
- Unit Swing Speed - 9.2 rpm
- Boom Wing Angle (Left) - 70 degrees
- Boom Wing Angle (Right) - 55 degrees
The Kubota KX057-5 Compact Excavator is available at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto, Ontario.
