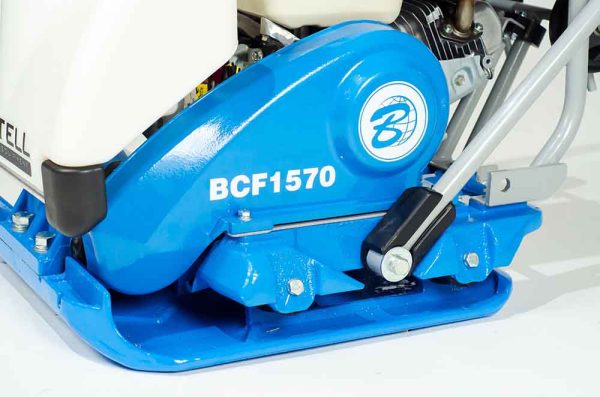

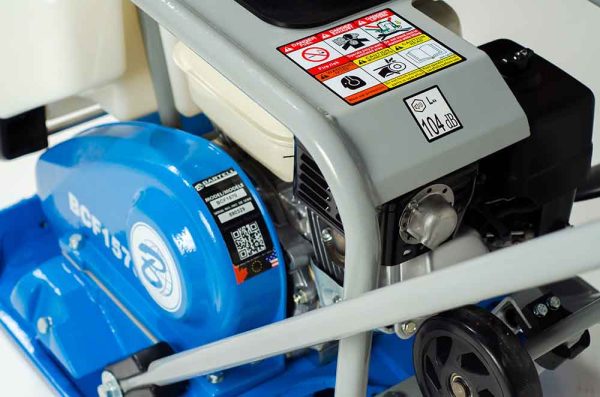

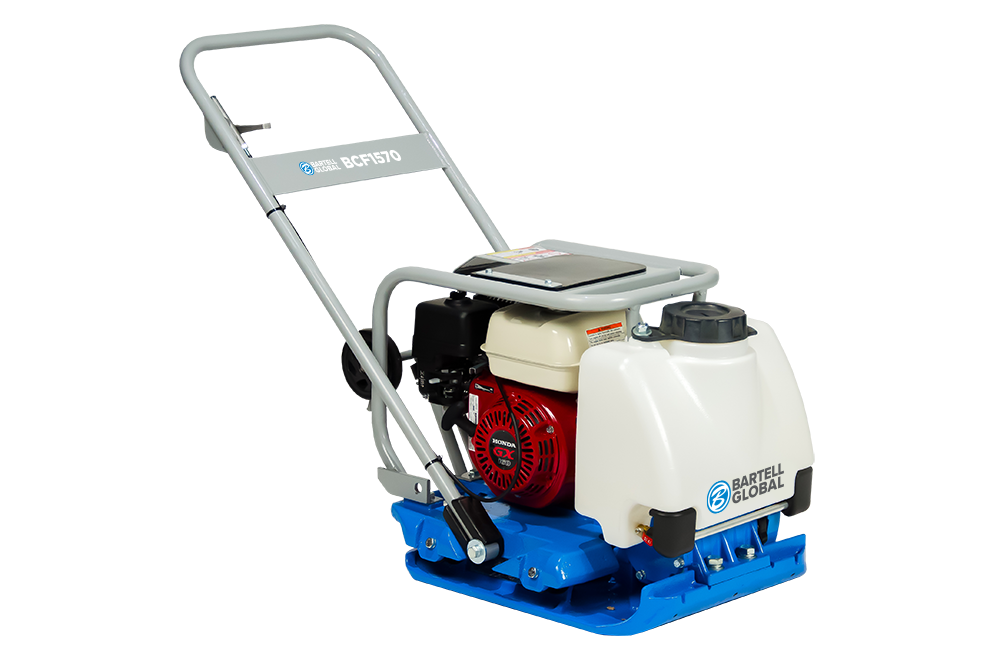

Bartell BCF1570 Forward Plate Compactor
By Bartell
SKU:

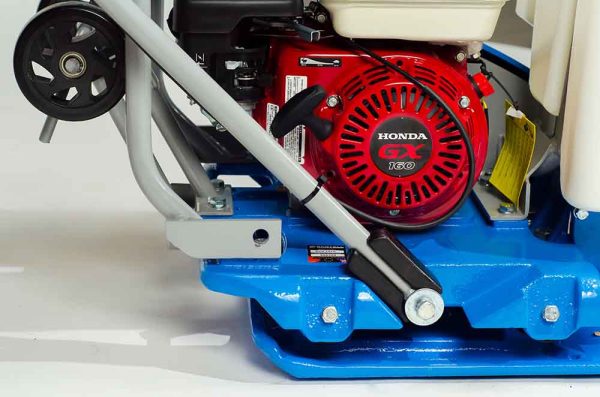

The Bartell BCF1570 is a powerful forward plate compactor built to handle tough jobs with minimal maintenance. Designed with a rugged Honda GX160 engine, anti-vibration handle, and a built-in water tank, it's your go-to solution for asphalt, soil, or paver compaction. Ideal for contractors who demand performance, comfort, and portability in one reliable unit.
Visit Kooy Brothers Equipment Ltd. to purchase your Bartell BCF1570 Forward Plate Compactor today and enjoy high-quality tools for all your outdoor needs. Located at 1919 Wilson Avenue, Toronto, Ontario.
Features
- Robust throttle control mounted on the handle for safe and convenient operation
- Anti-vibration folding handle minimizes fatigue and folds for compact storage

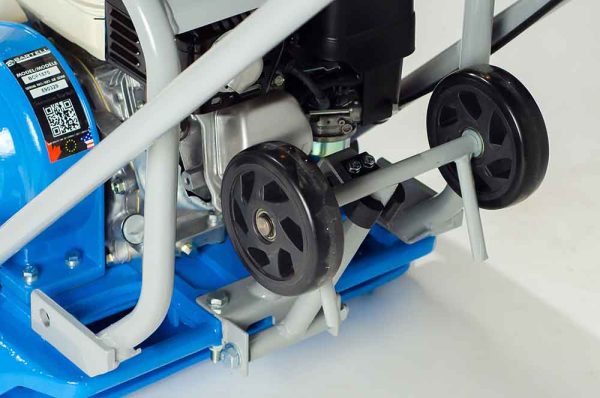

- Retractable wheels flip down for built-in mobility on and off the jobsite
- Integrated lifting bale allows for safe loading/unloading
- Straight-edge plate design ensures full-surface compaction with no missed margins
- Sealed belt housing keeps debris out and protects critical components
- Built-in removable water tank for use on asphalt and dust control on soil
- Optional urethane mat prevents scratches and breakage on pavers and slabs
Specifications
- Engine: Honda GX160, 4.8 hp (3.6 kW)
- Compaction Force: 3,461 lbf (15 kN / 1,570 kgf)
- Max Travel Speed: 82 ft/min (25 m/min)
- Plate Size: 20" x 21" (508 mm x 525 mm)
- Dimensions: 44" L x 20" W x 33" H (1118 mm x 508 mm x 838 mm)
- Weight: 217 lbs (98 kg)
